4.5 Side-Mounted Handwheel With Spur Gear
Attachment (MX-40, -85, -140, and -150)
Table 4.10 – Side-Mounted Handwheel Parts List (MX-40)
c
WARNING: Do not manu-
ally operate the actuator
with devices other than
the installed handwheel
and declutch lever. Using
force beyond the ratings
of the actuator and/
or additive forces such
as cheater bars, wheel
wrenches, pipe wrenches,
or other devices on the
actuator handwheel or
declutch lever may cause
serious personal injury
and/or damage to the
actuator and valve.
Part Number Description Qty.
13-1 Handwheel worm shaft 1
13-2 Spur adapter plate 1
13-3 Ball bearing 1
13-6 O-ring 1
13-7 Roll pin 1
13-8 Ball bearing 1
13-9 Socket head cap screw M8x25 4
13-10 Side-Mounted handwheel 1
13-11 Needle bearing 3
13-12 Handwheel input gear 1
13-13 Spur adapter cap 1
13-14 Handwheel input pinion 1
13-15 Quad ring 1
13-16 O-ring spacer 1
13-17 Dowel pin 1
13-18 Roll pin 1
13-19 O-ring 1
13-20 Socket head cap screw M8x20 4

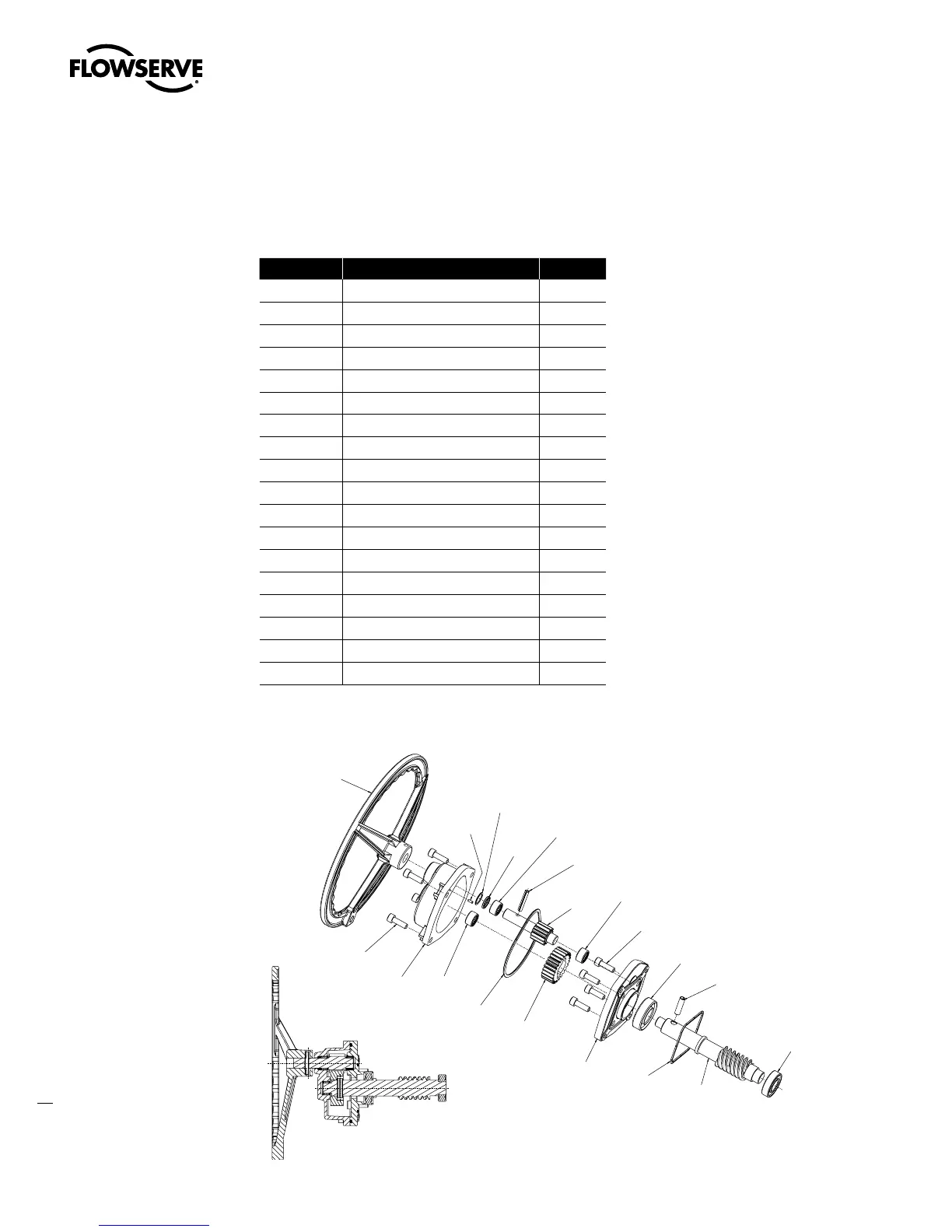

Figure 4.10 – Side-Mounted Handwheel with SGA (MX-40)
