5.15 Removal and Replacement of MX Encoder
(Supplied With Most Actuators Since September
2007)
Table 5.14 – Encoder Parts List
Part Number Description Qty.
1-6 Encoder assembly 1
1-36 Socket head cap screw (M4x10) 3

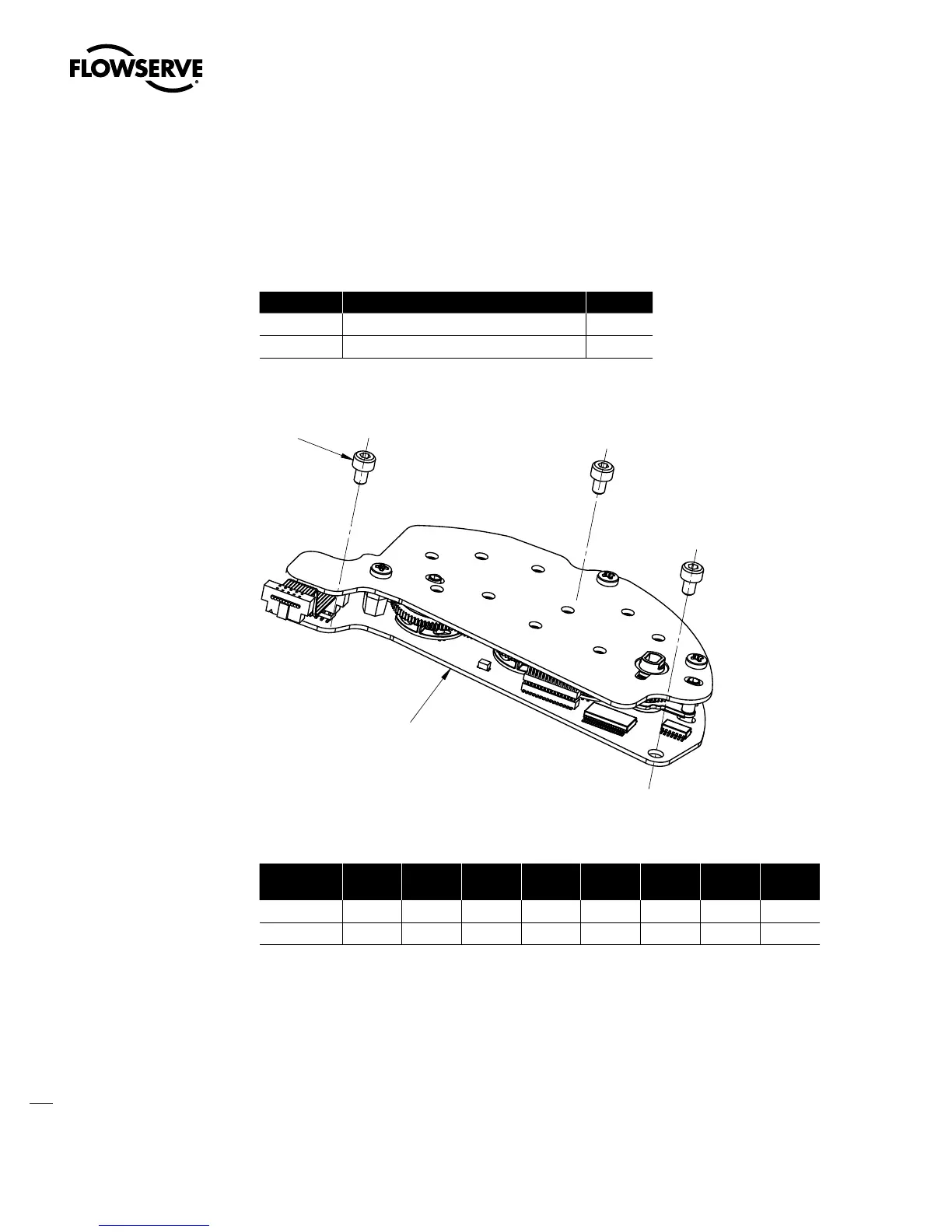

Figure 5.18 – Encoder
1-6
1-36
Table 5.15 – Encoder Drive Sleeve Speed (RPM)
Drive Sleeve
Speed ID
1 2 3 4 5 6 7 8
50 Hz
15
2
22 33 43 65 84/110
1
127/143
1
165
2
60 Hz
18
2
26 40 52 77 100/131
1
155/170
1
200
2
NOTE 1: MX-85, -140, and the only available speeds for the MX-150.
NOTE 2: N/A MX-85, -140, and -150.
