Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

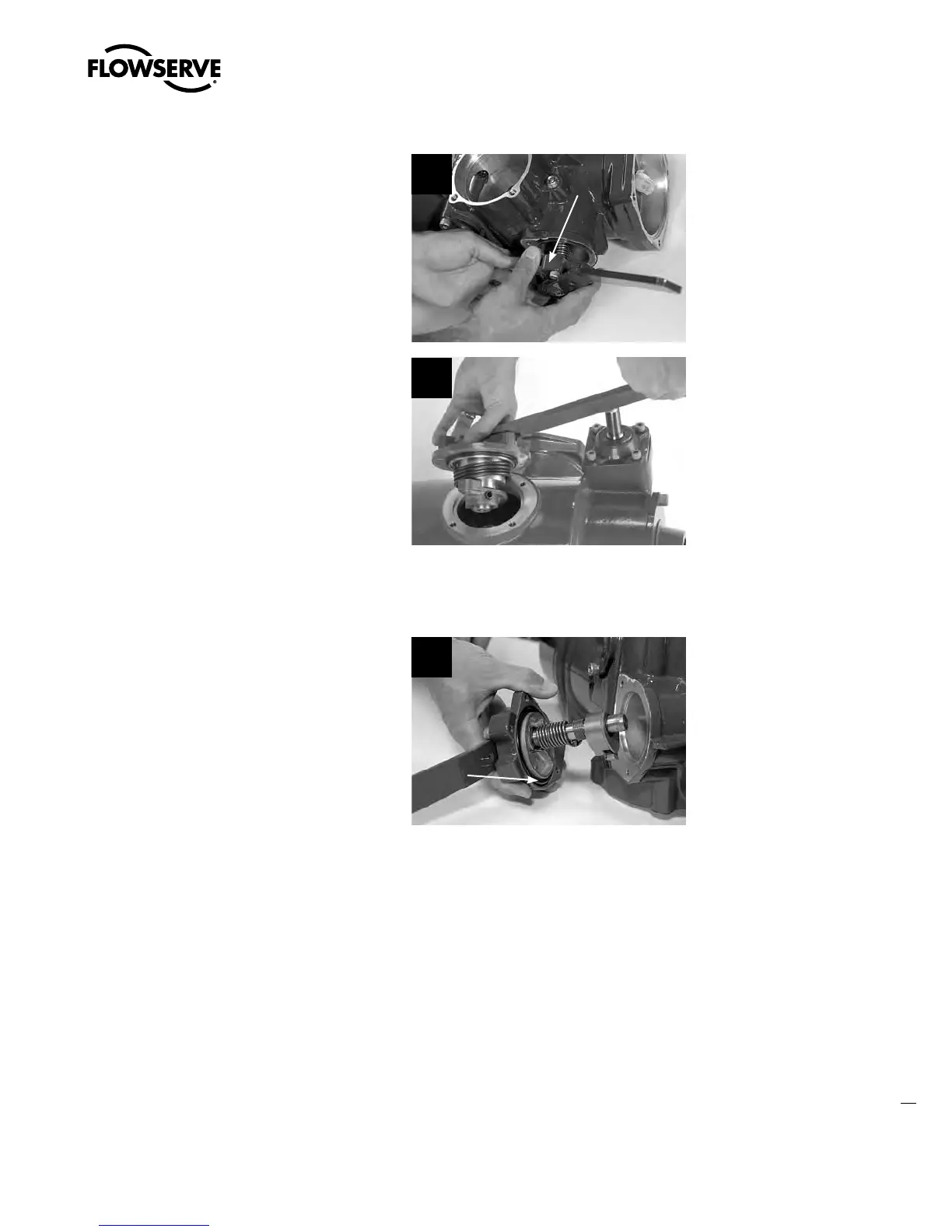

STEP 3
Withdraw the complete declutch assembly,
slightly twisting if necessary, to remove. Note
the O-ring (#5-15) with the declutch assembly
cover (#5-1). Replace at remounting.
Picture 3a is typical MX-05 through -40. Picture
3b is typical MX-85/140/150.
3a
5-15
3b
4.2.2 Remounting
STEP 4
(MX-20 and -40 only) Remove the following
subassemblies before remounting the declutch
assembly. (See corresponding referenced
sections for removal information.)
1. Handwheel (subassembly #13). (See
Section 4.3.1.)
2. Handwheel adapter (subassembly #12).
(See Section 4.13.1.)
3. Clutch and clutch ring (subassembly #16).
(See Section 4.15.1.)
Lightly lubricate the O-ring (#5-15) and fit it to
the inner race of the declutch cover (#5-1).
4
5-15
