Flowserve Limitorque MX-40 - Worm Shaft; Figure 4.18 - Worm Shaft (MX-05, -10, -20, and -40); Table 4.17 - Worm Shaft Parts List

63
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
4.10 Worm Shaft
Table 4.17 – Worm Shaft Parts List
Part
Number
Description
Quantity
MX-05, -10, -20
and -40
MX-85, -140, and
-150
3-1 Worm 1 1
3-2 Worm shaft cap 1 1
3-3 Ball bearing 1 1
3-4 Ball bearing 1 2
3-5 Ball bearing 1 N/A
3-6 Oil seal 1 1
3-7 O-ring 1 1
3-8 Pin 1 2
3-9 Socket head cap screw 4 4

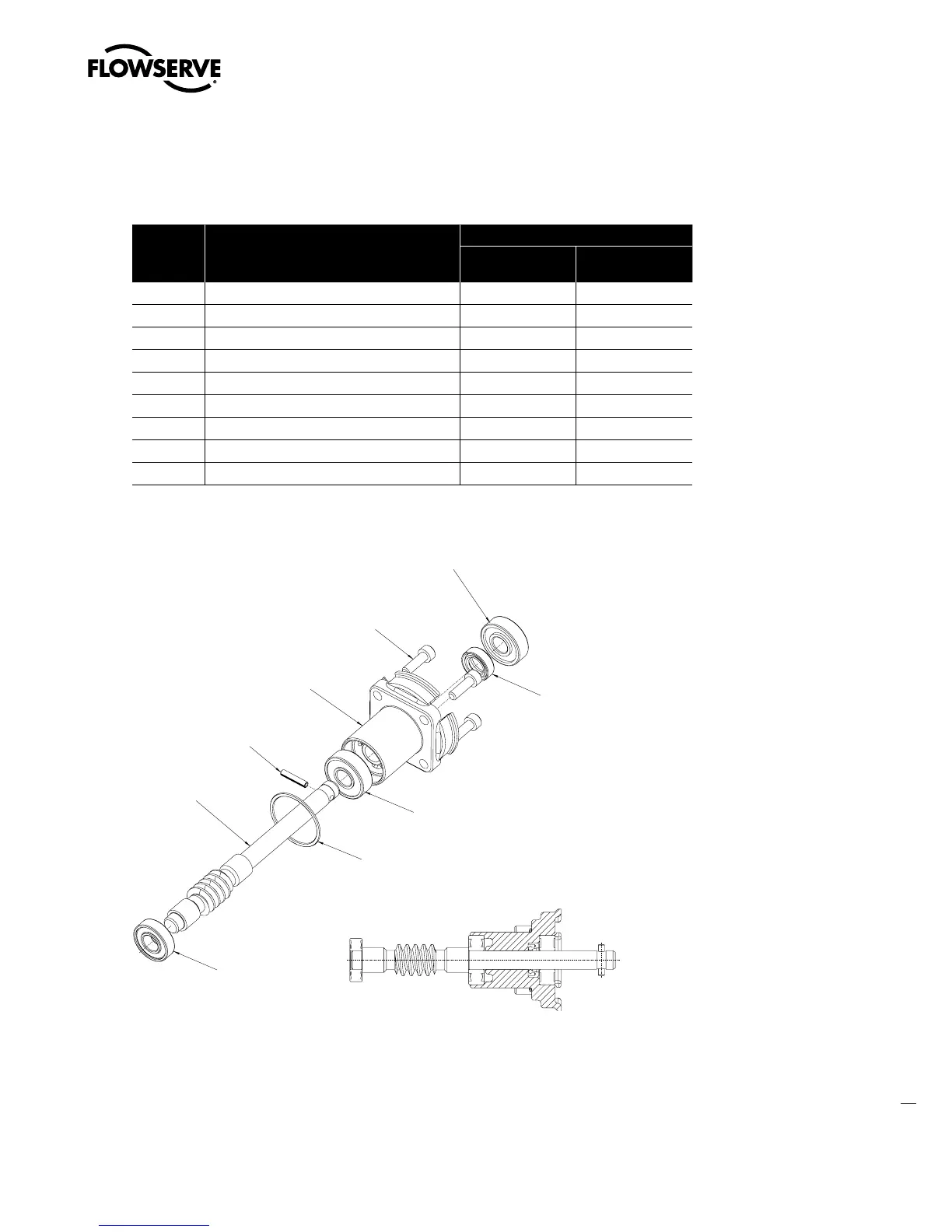

Figure 4.18 – Worm Shaft (MX-05, -10, -20, and -40)



