Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
38
STEP 2 (MX-10 AND -20)
a
CAUTION: Be aware of inner bearing (#13-8) when removing the side-mounted hand-
wheel. It may stay in the actuator housing or come out with the side-mounted handwheel
assembly. Ensure it is inserted back in actuator housing before remounting side-mounted
handwheel assembly.
TIP: (MX-85, -140, and -150 only) Needle bearing (#13-8) is pressed into housing.

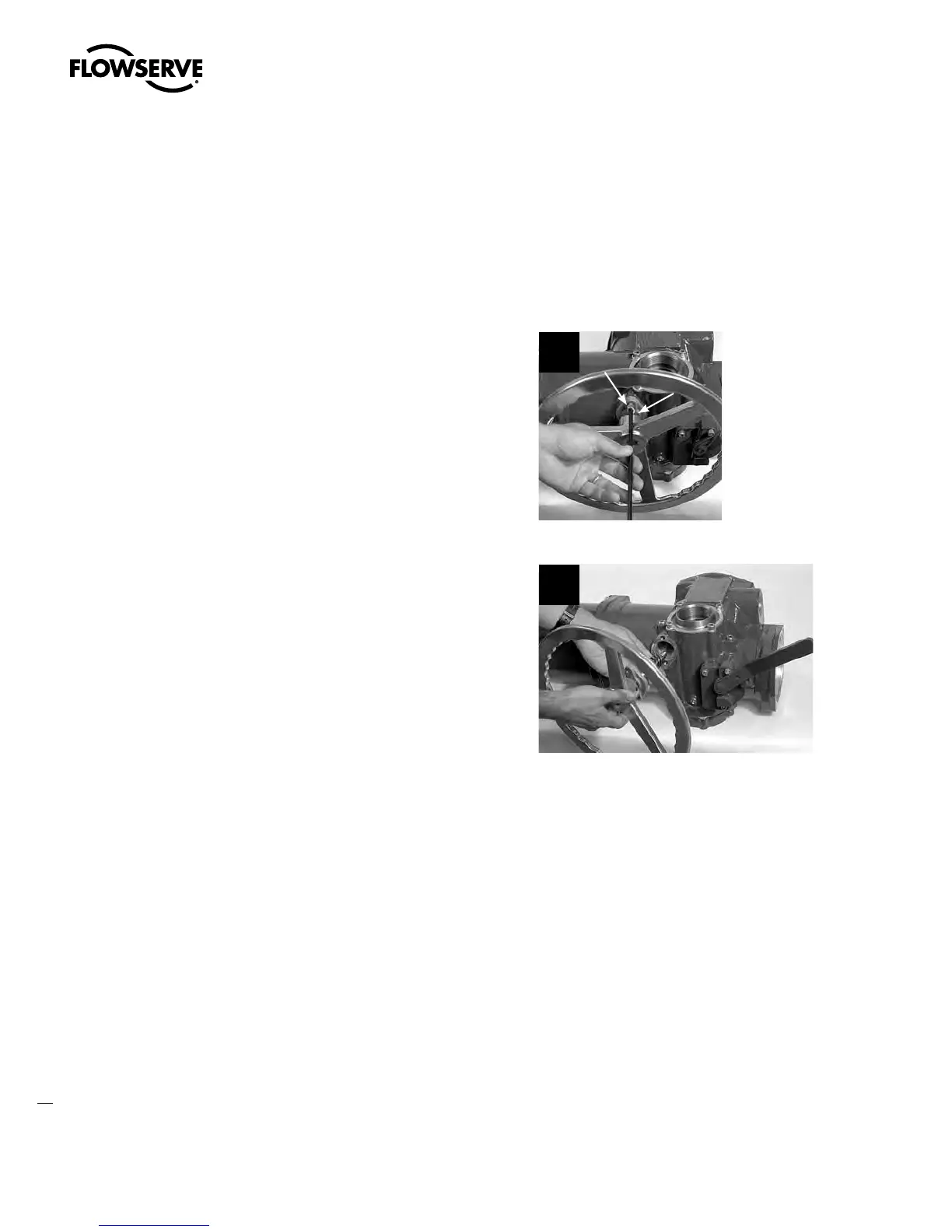

Using a 6 mm hex key, remove the M8 screws
(#13-9) from the handwheel worm shaft cap
(#13-2).
2
13-2
13-9
STEP 3
Rotate the handwheel assembly clockwise
(CW) to withdraw the complete subassembly
(#13) from the actuator housing.
3
