Flowserve Limitorque MX-40 - Torque Base Type B1; Figure 4.15 - Type B1 Torque Base (MX-05, -10, -20, and -40); Table 4.15 - Type B1 Torque Base Parts List (MX-05, -10, -20, and -40)

57
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
4.8 Torque Base Type B1
Table 4.15 – Type B1 Torque Base Parts List (MX-05, -10, -20, and -40)
Part
Number
Description
Quantity
MX-05 MX-10 MX-20 MX-40
10-1 Torque housing 1 1 1 1
10-2 Torque/thrust pilot 1 1 1 1
10-3 Torque nut (B1) 1 1 1 1
10-6 Socket head cap screw 1 1 1 N/A
10-7 Washer 1 1 1 N/A
10-8 Pipe plug 2 2 N/A N/A
10-10 Socket head cap screw 4 4 4 4
10-11 Grease fitting 1 1 1 1
10-14 O-ring 2 2 1 N/A
10-15 O-ring 1 1 1 1
10-16 O-ring N/A N/A 1 1
10-17 Gasket N/A N/A N/A 1

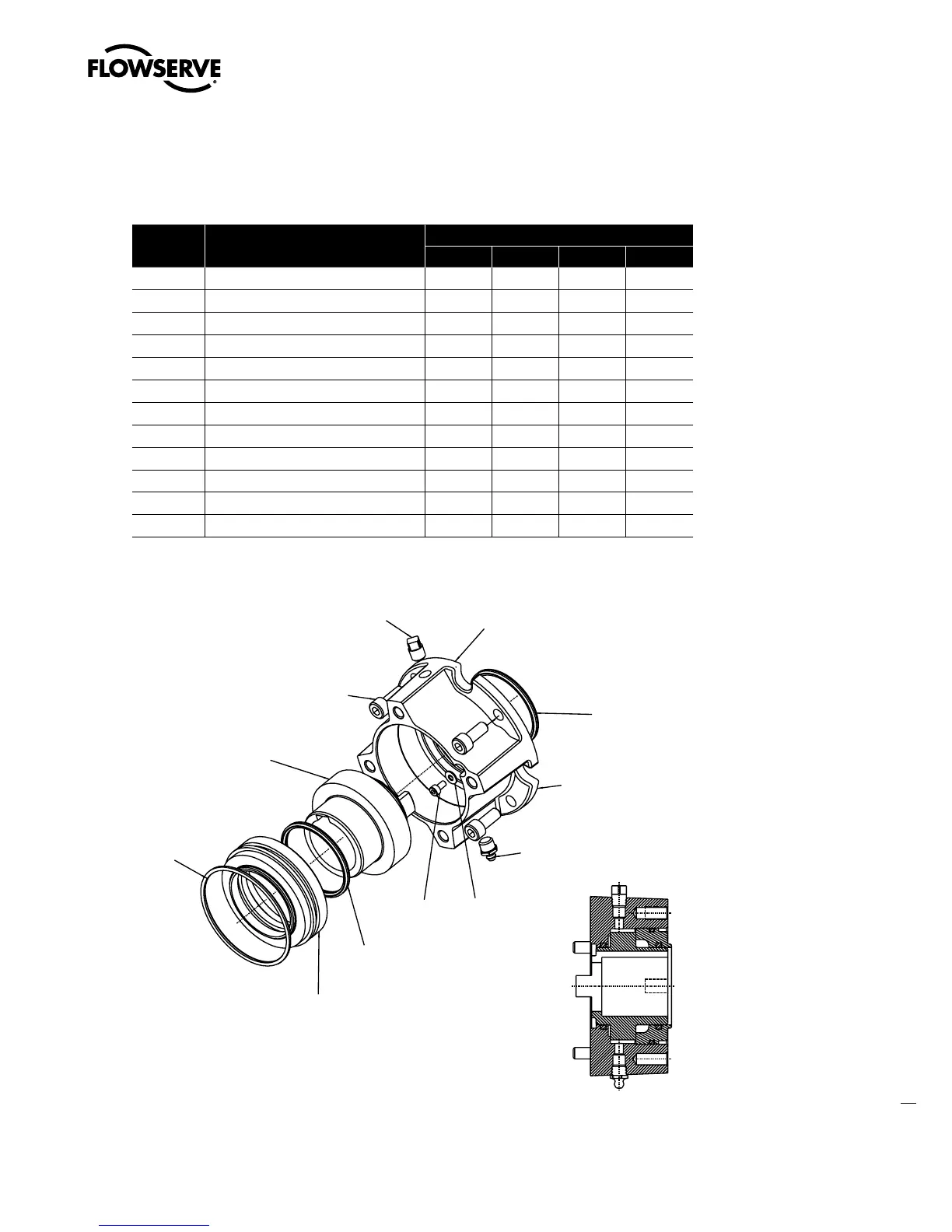

Figure 4.15 – Type B1 Torque Base (MX-05, -10, -20, and -40)
10-1
10-2
10-3
10-14
10-14 (MX-05 & 10)
10-16 (MX-20 & 40)
10-15
10-11
10-8
10-6
10-7
10-10
10-17 (MX-40 only)
gasket not shown
