Flowserve Limitorque MX-40 - Clutch and Clutch Ring Components (MX-20, -40, -85, -140, and -150); Figure 4.26 - MX-20 and -40 Clutch and Ring Components; Figure 4.27 - MX-85, -140, and -150 Clutch and Ring Components; Table 4.23 - Clutch and Clutch Ring Components Parts List

87
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
4.15 Clutch and Clutch Ring Components
(MX-20, -40, -85, -140, and -150)
Table 4.23 – Clutch and Clutch Ring Components Parts List
Part Number Description Qty.
1-38 Clutch 1
1-37 Clutch ring 1
1-39 Clutch spring 1
1-40 Spring spacer 1

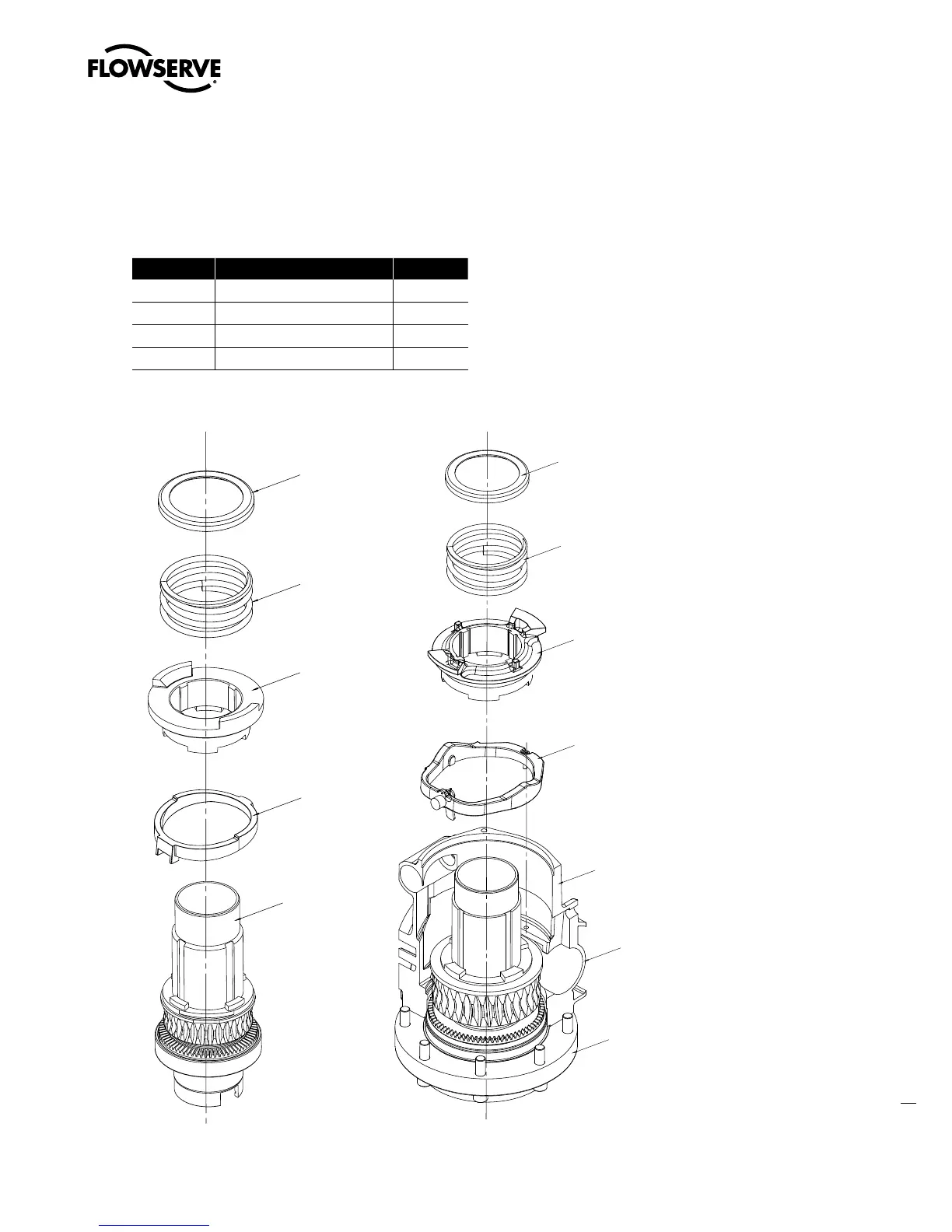

Figure 4.26 – MX-20 and -40 Clutch
and Ring Components
Figure 4.27 – MX-85, -140, and -150 Clutch
and Ring Components




%SJWF4MFFWF
"TTFNCMZ




%SJWF4MFFWF
"TTFNCMZ
)PVTJOH
#BTFQMBUF
"TTFNCMZ
