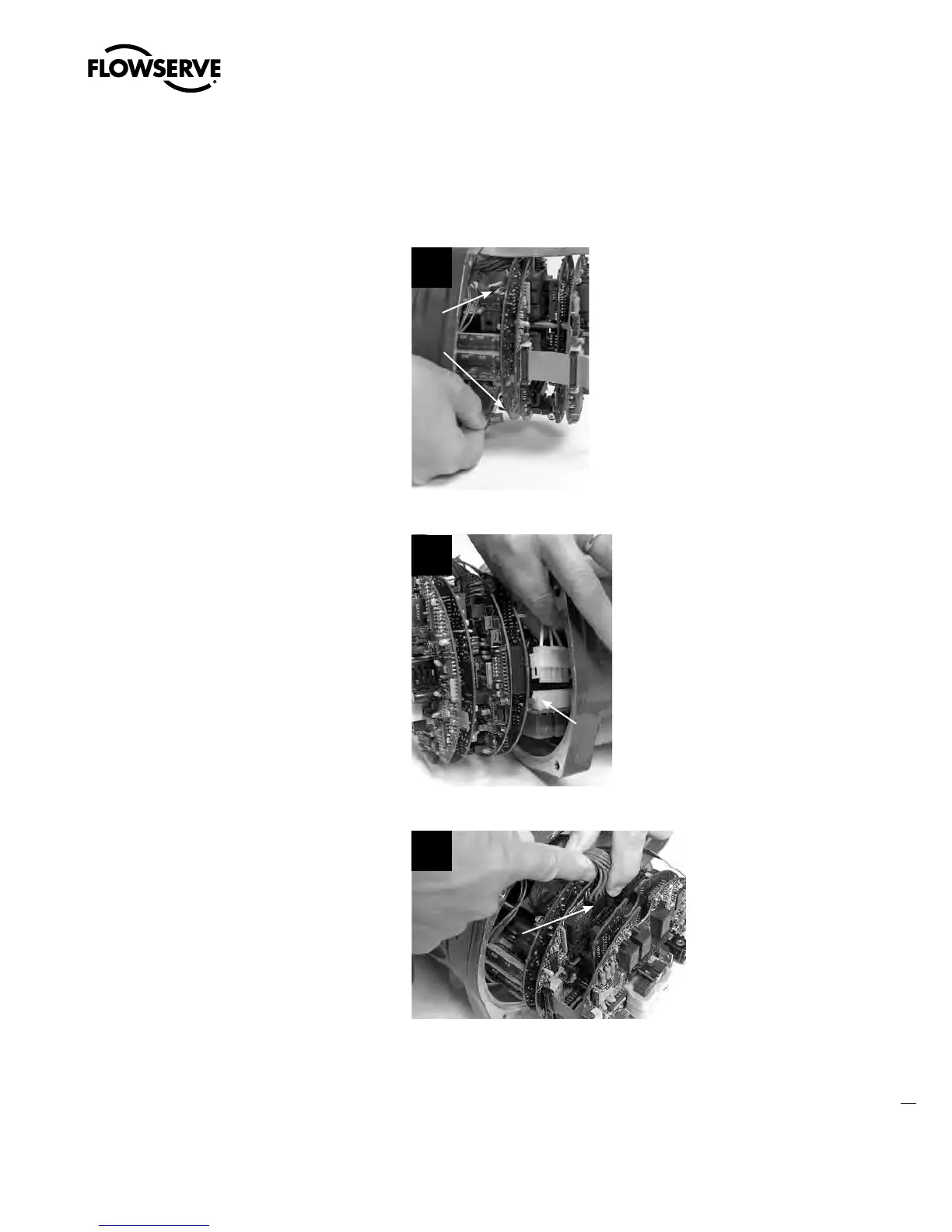

STEP 12
NOTE: Ensure wiring harness bundle routes through the semicircular slots on the printed circuit
boards.
Connect the 6-pin Molex
®
wire harness to plug
P1 and 14-pin Molex
®
harness to plug P2 on
main power board.
12
P1
P2
STEP 13
Connect the AMP
®
power connector to the fuse
section on the main power board.
13
AMP
Plug
STEP 14
Connect the 20-pin Molex
®
harness to plug P1
on the main processor board.
