Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
80

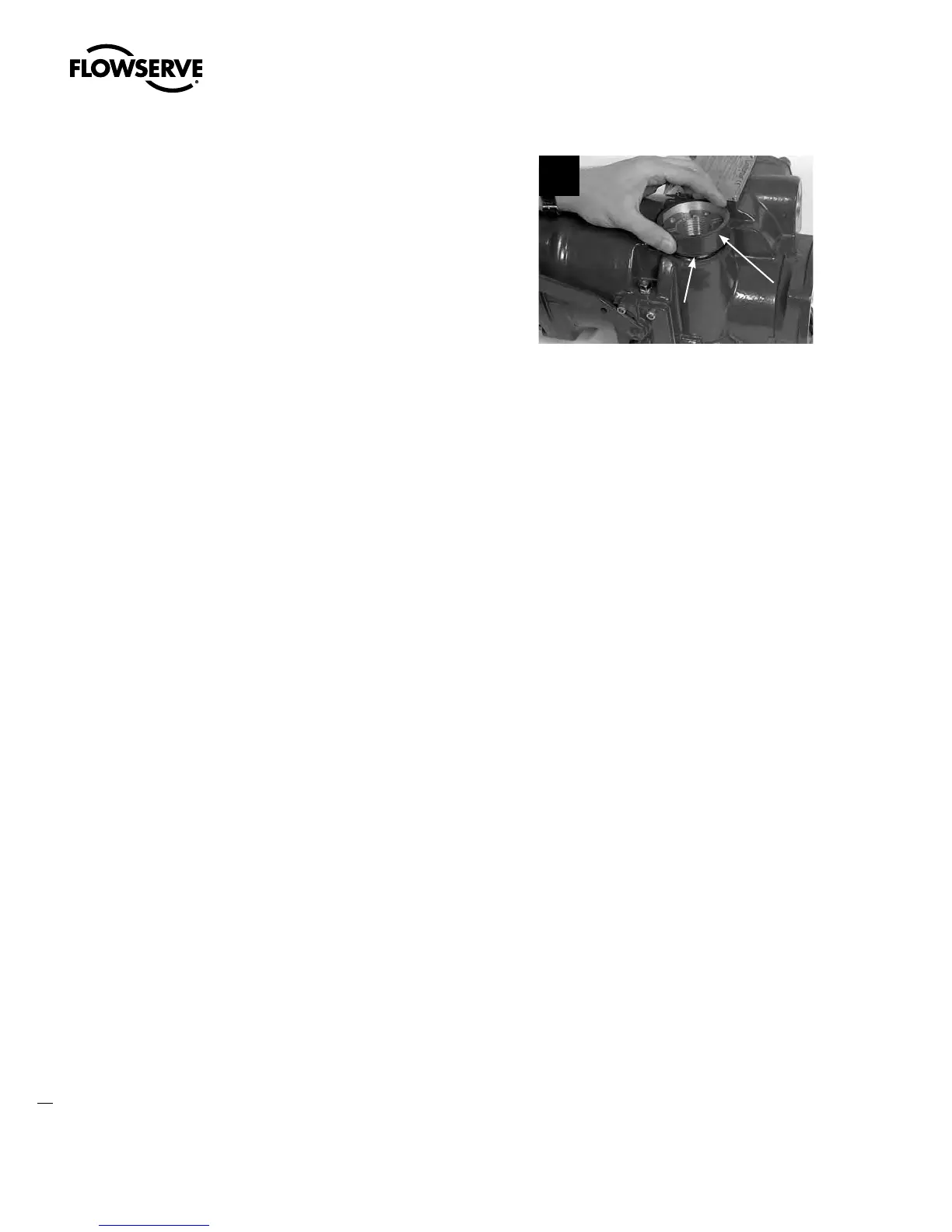

STEP 6
Slide handwheel spacer (#1-9) over handwheel
adapter assembly, ensuring wave spring
(#1-10) is seated in groove of the handwheel
spacer.
6
1-10
1-9
STEP 7
Remount all removed subassemblies according to the remounting instructions in the following
order:
1. Drive sleeve (subassembly #2). (See Section 4.11.2.)
2. Base plate (subassembly. #11). (See Section 4.9.2.)
3. Worm shaft (subassembly. #3). (See Section 4.10.2.)
4. Motor (subassembly #4). (See Section 4.1.2.)
5. Top-mounted handwheel (#1-8). (See Section 4.3.2.)
NOTE: After completing handwheel assembly procedure, turn handwheel enough to ensure
wave spring is not pinched between actuator housing and handwheel spacer. If it is pinched,
remove handwheel (#1-8) and handwheel spacer (#1-9) to reseat the wave spring (#1-10) into
the grove on the handwheel spacer. Install handwheel.
6. Add oil.
