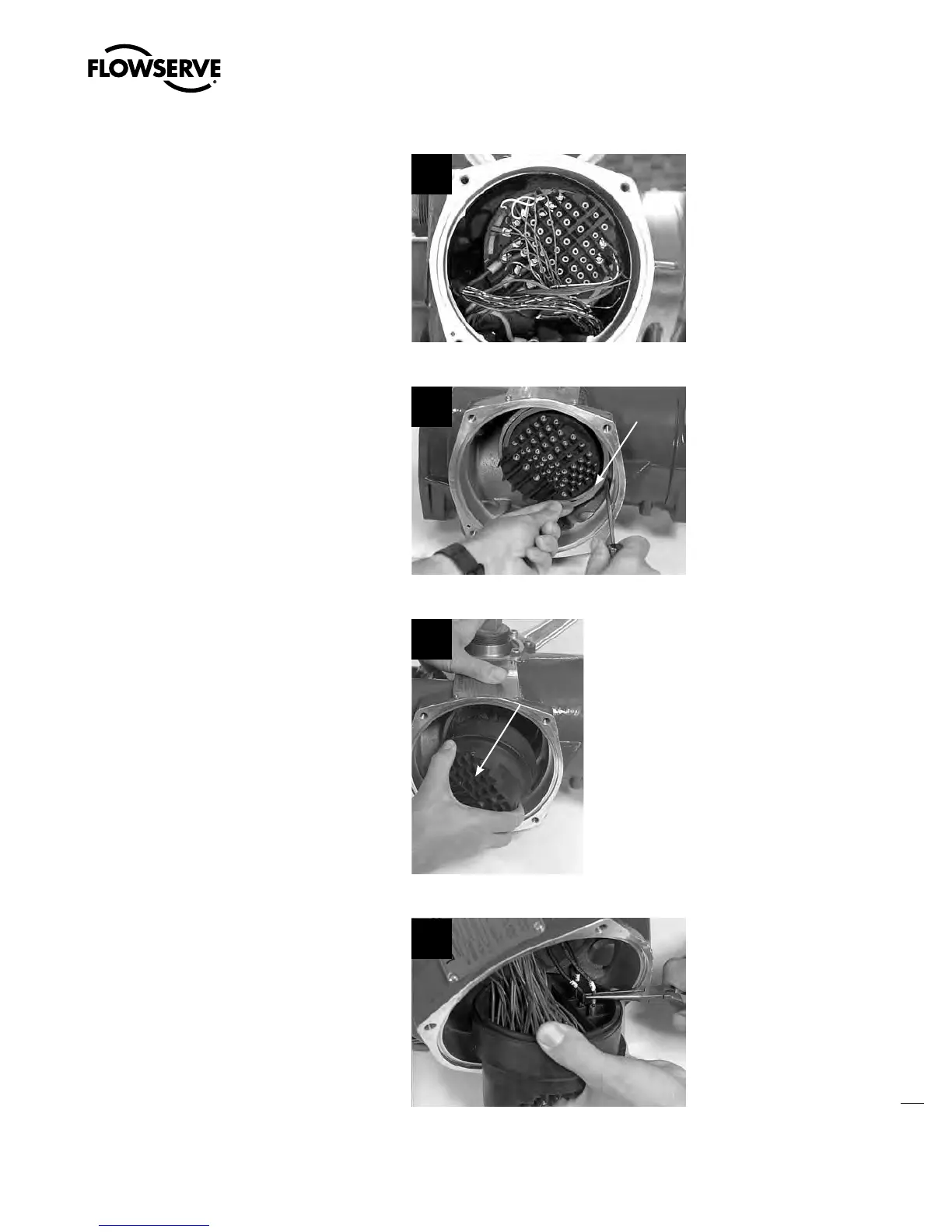

STEP 2
If actuator is already in service, disconnect
incoming power leads L1, L2, and L3 (and
control wiring from the terminal block if
terminal block replacement is required).
2
STEP 3
Using a flat head screwdriver, insert the
screwdriver blade underneath the edge of the
snap ring (#1-21) and work the blade around
the back of the snap ring to remove it from the
groove, thus allowing terminal block removal.
3
1-21
STEP 4
Remove terminal block assembly.
4
Terminal
Block
Assembly
STEP 5
Disconnect leads L1, L2, and L3 from back of
terminal block.
5
