119
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

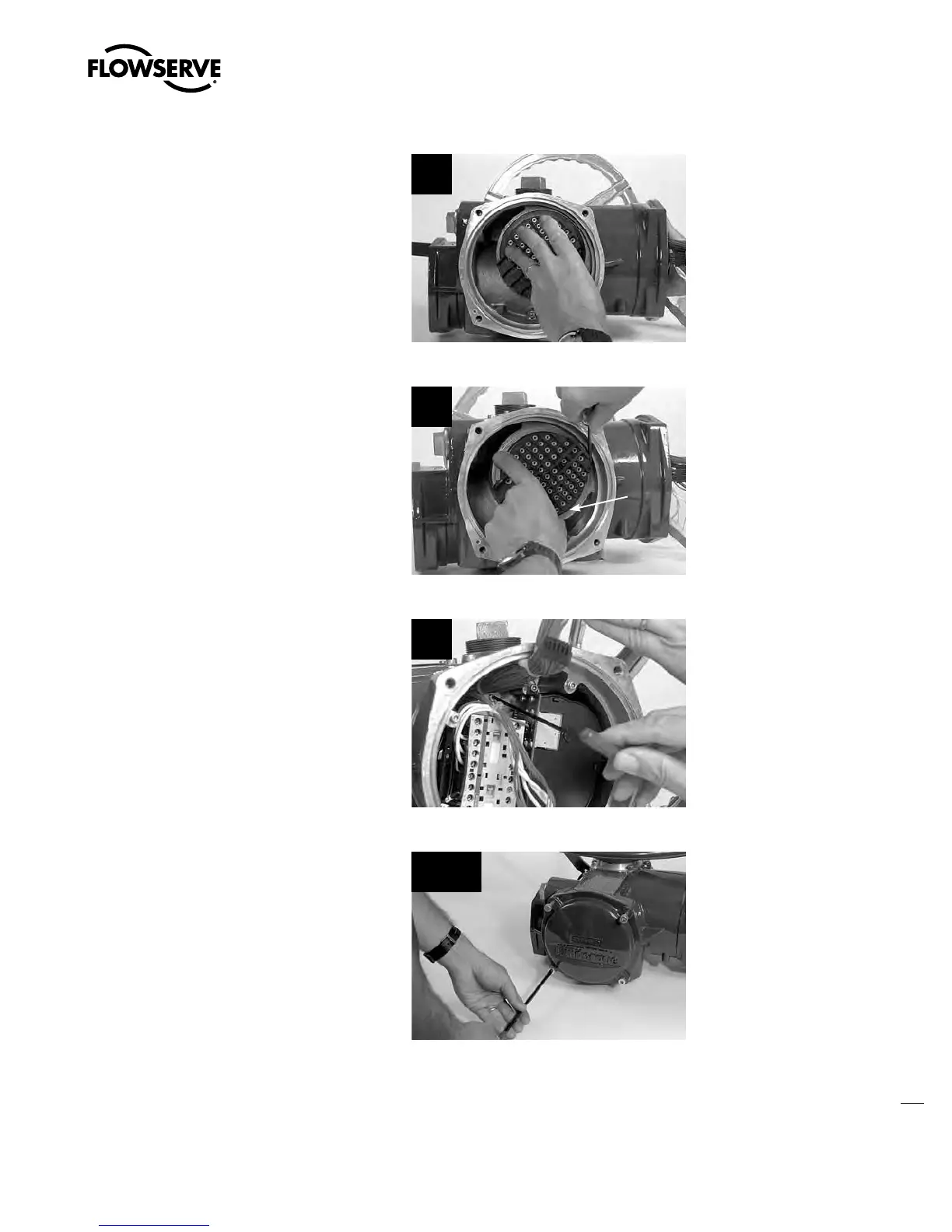

STEP 9
Insert the terminal block into the terminal block
mounting cavity.
9
STEP 10
Insert the retaining ring (#1-21) into the
retaining ring groove - snap the retaining
ring into the groove by working a flat blade
screwdriver around the edge of the retaining
ring until it seats into the groove.
10
1-21
STEP 11
If the contactor assembly was loosened in
Step 7, then remount the contactor on screws
(#8-28). Retighten with M3 hex key.
11
STEP 12 AND 13
Connect the incoming power leads and the
control wiring according to the application
wiring diagram if the terminal block has been
replaced.
Install the terminal compartment cover and
secure with four M8 screws using a 6 mm hex
key.
12, 13
