43
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

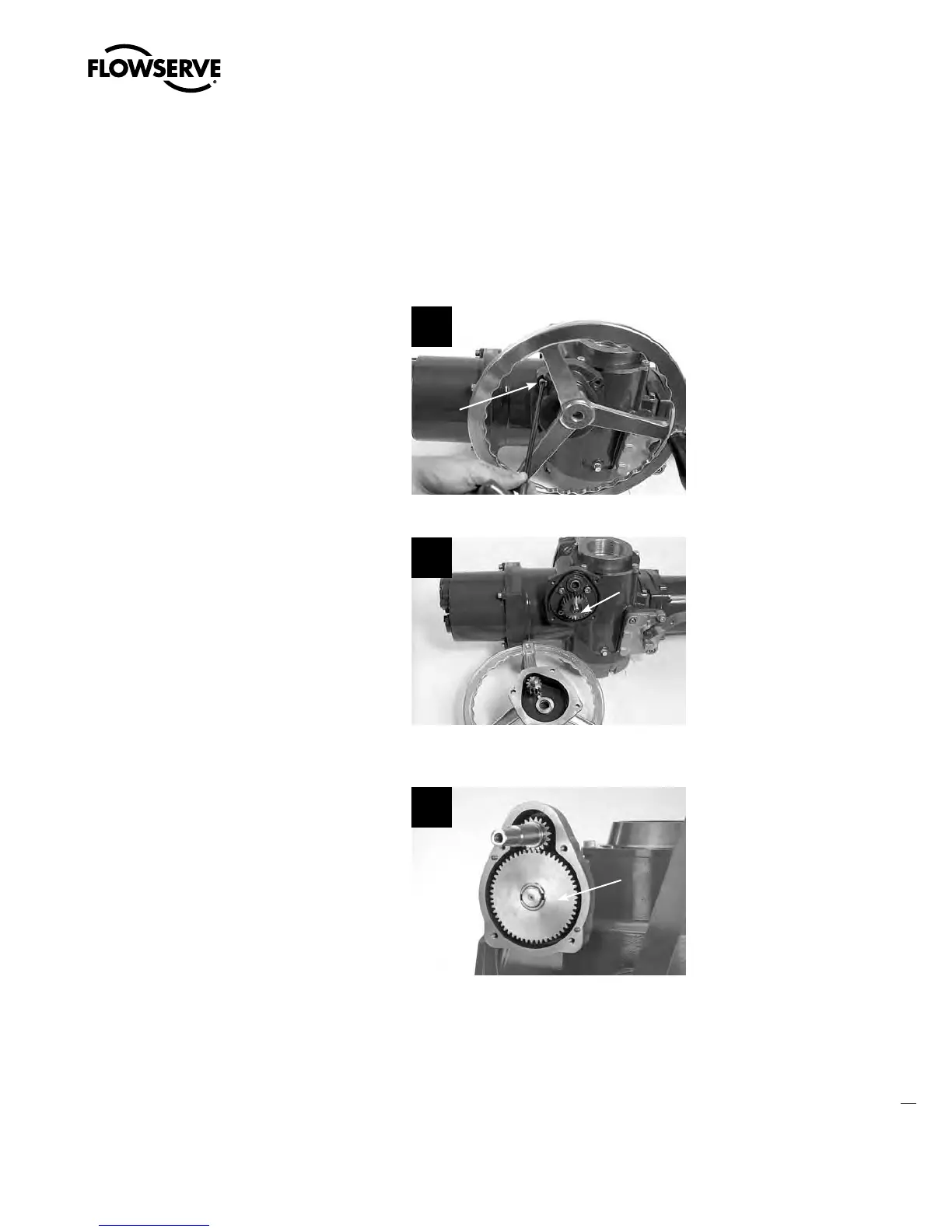

STEP 2
a
CAUTION: Be aware of inner bearing (#13-8) when removing the side-mounted hand-
wheel. It may stay in the actuator housing or come out with the side-mounted handwheel
assembly. Ensure it is inserted back in actuator housing before remounting side-mounted
handwheel assembly.
Remove the four screws (#13-20) from the
handwheel spur gear cap (#13-13).
2
13-20
STEP 3
Remove handwheel spur gear cap assembly.
Note when assembly is removed, the spur gear
(#13-12) is loose in spur gear cap. Remove
spur gear.
3a
13-12
MX-40
3b
13-12
MX-85/140/150
