810
Users Manual
4-30
Note
Because the current running speed is so critical
for correct diagnosis, it is a best practice to use
a Tachometer on VFD motor controllers. Or,
refer to the frequency on the motor controller
label before you take a measurement.
If a single axis Sensor is detected, the Tester
asks for the sensitivity of the Sensor.
5. Input the sensitivity value of the Sensor with the
keyboard.
6. If you push Select, the Sensor type selection
screen appears.

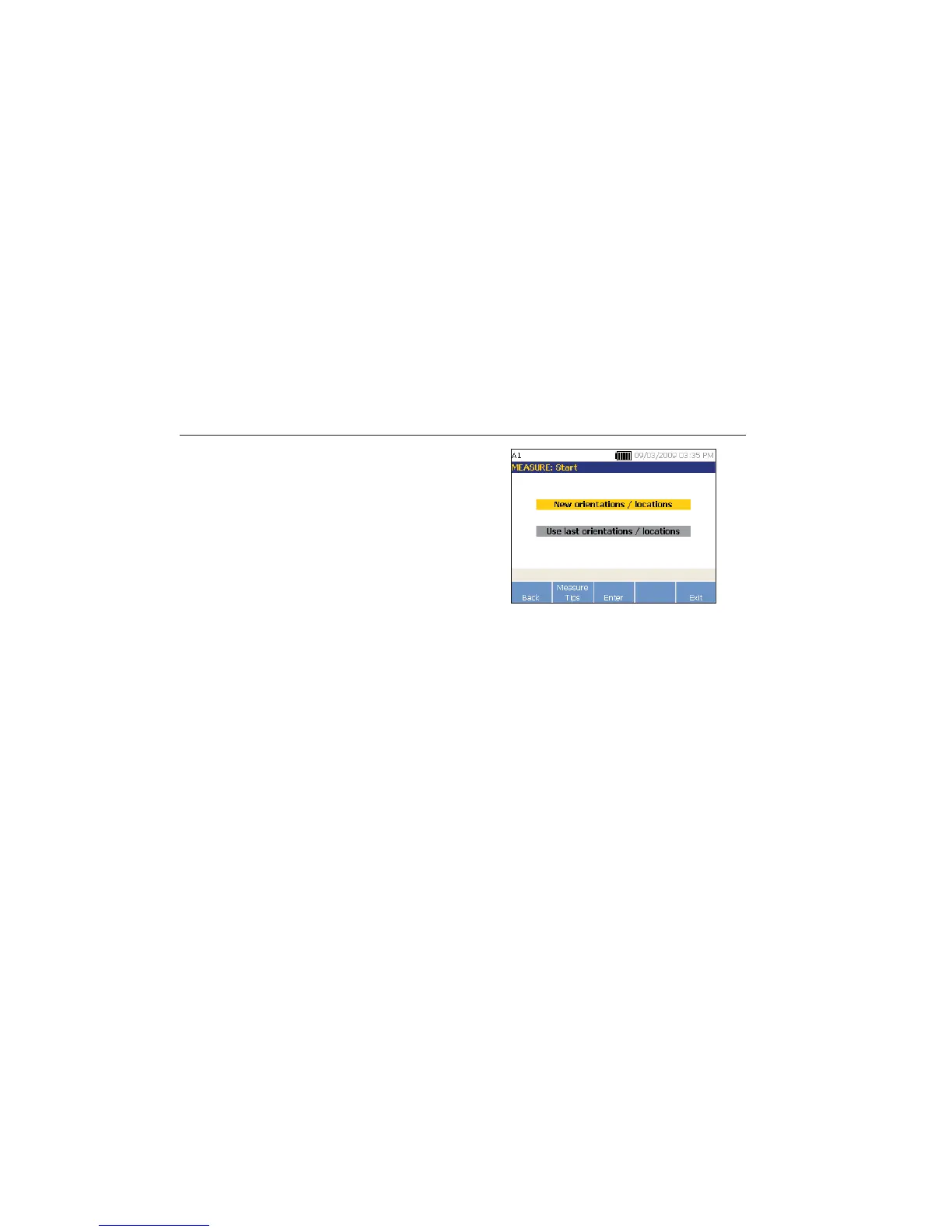

Once the Sensor is selected, a new screen
appears with the available options for the
orientations and locations.
