MC68332 SYSTEM INTEGRATION MODULE
USER’S MANUAL 4-3

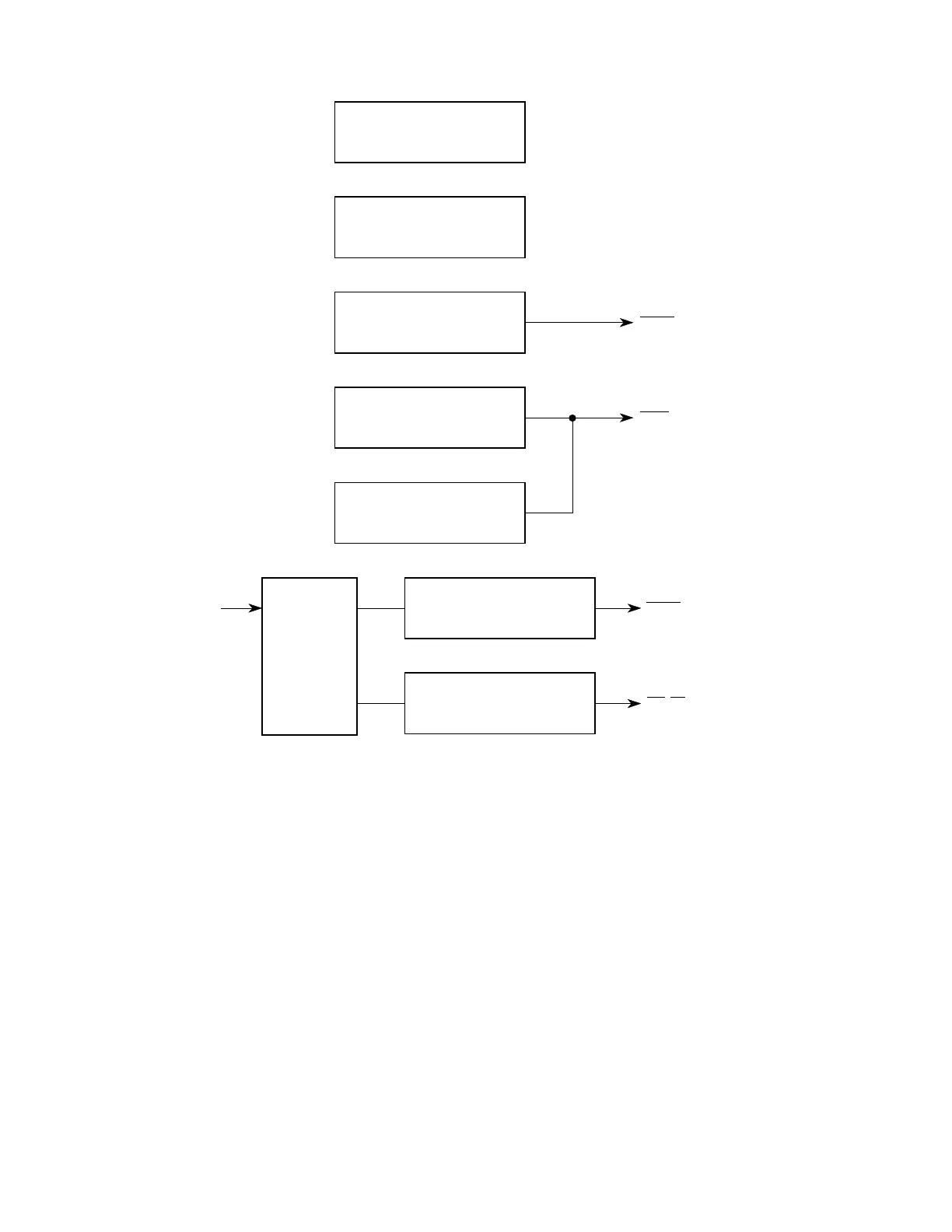

Figure 4-2 System Configuration and Protection
4.2.1 Module Mapping
Control registers for all the modules in the microcontroller are mapped into a 4-Kbyte
block. The state of the module mapping bit (MM) in the SIM configuration register
(SIMCR) determines where the control register block is located in the system memory
map. When MM = 0, register addresses range from $7FF000 to $7FFFFF; when MM
= 1, register addresses range from $FFF000 to $FFFFFF.
4.2.2 Interrupt Arbitration
Each module that can generate interrupt requests has an interrupt arbitration (IARB)
field. Arbitration between interrupt requests of the same priority is performed by serial
contention between IARB field bit values. Contention must take place whenever an in-
SYS PROTECT BLOCK
MODULE CONFIGURATION
AND TEST
RESET STATUS
HALT MONITOR
BUS MONITOR
SPURIOUS INTERRUPT MONITOR
SOFTWARE WATCHDOG TIMER
PERIODIC INTERRUPT TIMER
PRESCALER
CLOCK
BERR
RESET REQUEST
RESET
REQUEST
2
9
IRQ [7:1]
