Fronius Symo GEN24 10.0 User Manual

13

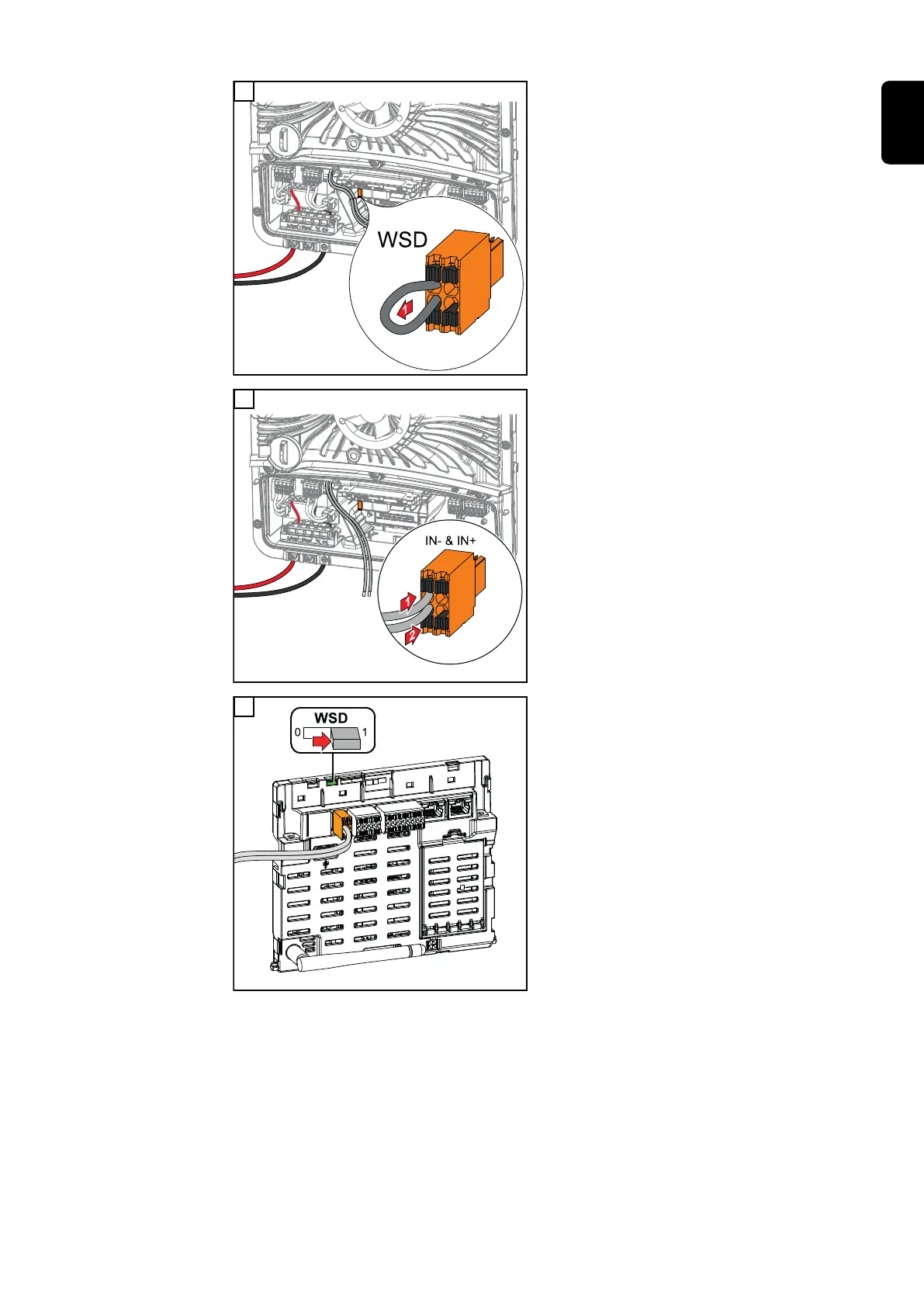

Remove the factory installed bypass
on the push-in WSD terminal.
14
Connect the signal cable to the push-
in WSD terminal on the IN- and IN+
slots, observing the labelling.
15
Check whether the WSD switch is in
position 1, adjust if necessary (factory
setting: position 1).
147
EN

Fronius Symo GEN24 10.0 Specifications

General

Model	Fronius Symo GEN24 10.0
Category	Inverter
AC nominal output	10.0 kW
AC grid frequency	50 Hz / 60 Hz
THD	< 3 %
Number of MPP trackers	2
Protection class	IP66
AC Nominal Voltage	230 V / 400 V
Operating Temperature Range	-25°C to +60°C
Max. apparent AC power	10, 000 VA
AC nominal voltage range	230 V
DC connection	4x DC+ and 4x DC- screw terminals
Maximum AC Power	10000 VA
Maximum DC Power	15 kW
AC Voltage Range	180 - 280 V
Cooling	Active cooling
Warranty	5 years
