Fronius VR 5000 - Adjustment Aid for Manual Control Panel

13
(5) „Dynamic“ buttons
for influencing the short-circuiting dynamic at the instant of droplet transfer
- harder, more stable arc
+ soft, low-spatter arc
to change parameters in the Set-up menu
(6) HOLD indicator
every time you finish a welding operation, the actual values for welding current and
welding voltage are stored, and the „Hold“ indicator lights up.
Manual control
panel
(continued)
Adjustment aid
for Manual cont-
rol panel
For selected material / protective gas shield combinations, the VR 5000 includes adjust-
ment aids in the form of foils that can be easily attached to and removed from the
Manual control panel. The adjustment aids have additional scales that correspond to the
sheet thickness used. If both the adjusters are set to the current value for the sheet
thickness, this will produce a good basic setting for the respective material / protective
gas shield combination.

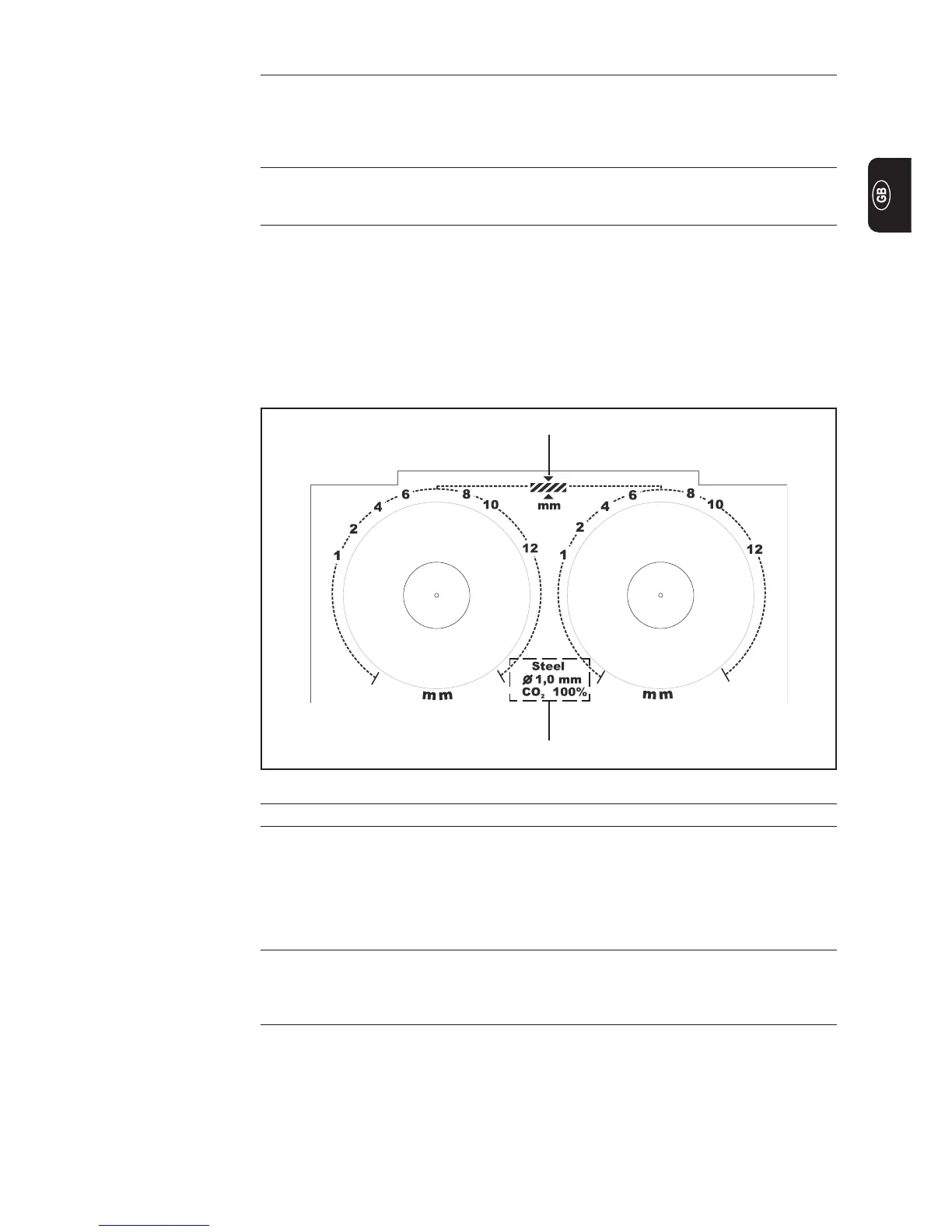

Adjustment aid for the Manual control panel, e.g. for steel 1.0 mm, CO
2
100 %
No. Function
(1) Adjustment aid applies with the specified material / protective gas shield
combination
e.g.:
- Steel Material
- Ø 1.0 mm Wire diameter
-CO
2
100 % Protective gas shield
(2) Scales for sheet thickness
in mm
The two adjusters must be set to the appropriate value for the sheet thickness being
used in order to obtain the basic setting according to the adjustment aid.
(1)
(2)
