Fronius VR 5000 - Connections and Mechanical Components; Wirefeeder Front; Wirefeeder Rear

17
Connections and mechanical components

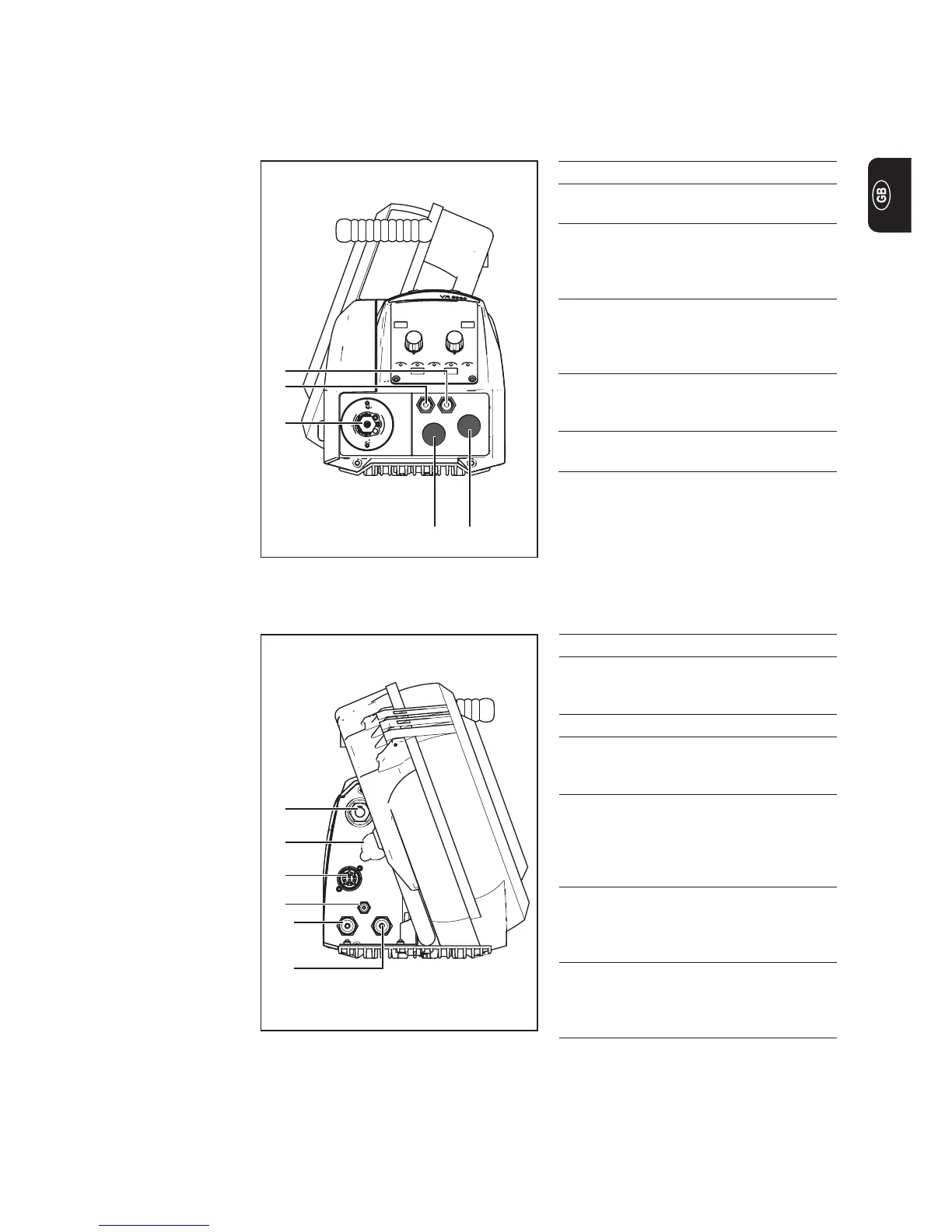

VR 5000 - Front view
Wirefeeder front
No. Function
(1) Welding torch connection
for connecting the welding torch
(2) Water flow connection (black) -
option
when the optional water connection is
installed, otherwise blanking cover
(3) Water return connection (red) -
option
when the optional water connection is
installed, otherwise blanking cover
(4) Position
for option (+) - current socket with
bayonet latch
(5) Position
for LocalNet connection socket option
VR 5000 - rear view
Wirefeeder rear
No. Function
(1) (+) - Socket with
bayonet latch
for interconnecting hosepack
(2) Blanking cover
(3) Enhanced LocalNet connection
for enhanced LocalNet with lines for
motor supply and motor control
(4) Protective gas shield connection -
option
when the optional protective gas
shield connection is installed, otherwi-
se blanking cover
(5) Water return connection (red) -
option
when the optional water connection is
installed, otherwise blanking cover
(6) Water flow connection (black) -
option
when the optional water connection is
installed, otherwise blanking cover
