Fueltec FT 500 - Individual coils connections

34

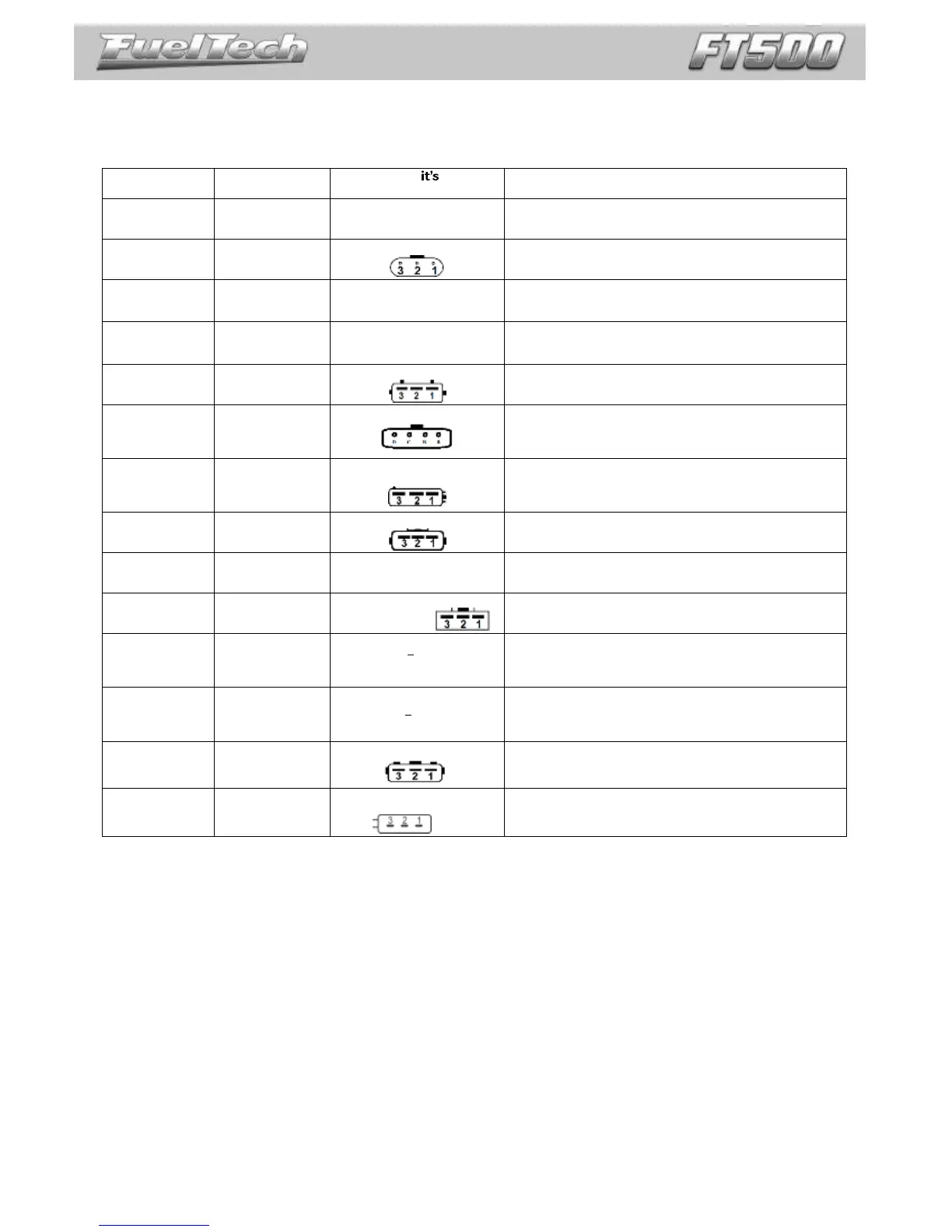

Individual coils connections
Coil
Type
Cars where usually
found
Pin connection
Bosch
0 221 504 014
No internal igniter
Fiat Marea 2.0T, 2.4
Pin 1: Ignition power (from SparkPRO or similar)
Pin 2: Power ground (engine head)
Pin 3: Switched 12V from relay
Bosch
0 221 504 024
No internal igniter
Fiat Punto/Linea 1.4 T-Jet
Pin 1: Power ground (engine head)
Pin 2: Switched 12V from relay
Pin 3: Ignition power (from SparkPRO or similar)
VW/Audi 20V
BMW
No internal igniter
All VW/Audi 1.8 20V Turbo
BMW 328
Pin 1: Ignition power (from SparkPRO or similar)
Pin 2: Power ground (engine head)
Pin 3: Switched 12V from relay
Magneti Marelli
BAE700AK
No internal igniter
(Dwell: 2,50ms)
Peugeot 306 e 405 2.0 16V
Citroen Xantia e ZX 2.0 16V
Maserati Coupé 3.2 32V
Pin 1: Switched 12V from relay
Pin 2: Power ground (engine head)
Pin 3: Ignition power (from SparkPRO or similar)
MSD PN 82558
No internal igniter
MSD PN 82558
Pin 1: Ignition power (from SparkPRO or similar)
Pin 2: Do not connect
Pin 3: Switched 12V from relay
ACDelco
12611424
Integrated igniter
(Dwell: 4,5ms)
Corvette LS1
Pin A: Power ground (engine head)
Pin B: Reference ground (ECU reference ground)
Pin C: Connected to an ignition output (gray wire)
Pin D: Switched 12V from relay
Diamond FK0140
(Dwell 3ms)
Diamond FK0186
(Dwell 5ms)
Integrated igniter
Subaru WRX
Pin 1: Connected to an ignition output (gray wire)
Pin 2: Power ground (engine head)
Pin 3: Switched 12V from relay
Diamond
FK0320
Integrated igniter
Pajero 3.8 6G75 MiVec
Pin 1: Switched 12V from relay
Pin 2: Connected to an ignition output (gray wire)
Pin 3: Power ground (engine head)
Hitachi CM11-202
Integrated igniter
Fiat Brava/Marea 1.8
Pin 1: Switched 12V from relay
Pin 2: Power ground (engine head)
Pin 3: Connected to an ignition output (gray wire)
Hitachi AIC3103G
Integrated igniter
Mitsubishi Nissan 350 Z
Infiniti G35/FX35
Pin 1: Connected to an ignition output (gray wire)
Pin 2: Power ground (engine head)
Pin 3: Switched 12V from relay
Audi/VW
06x 905 115 -
Hitachi CM11-201
Integrated igniter
Audi A6, S3 VW Bora, Golf,
Passat 1.8 Turbo
Pin 1: Switched 12V from relay
Pin 2: Power ground (engine head)
Pin 3: Connected to an ignition output (gray wire)
Pin 4: Power ground (engine head)
Bosch
022 905 100x
Integrated igniter
VW VR6 Golf, Passat
Pin 1: Power ground (engine head)
Pin 2: Power ground (engine head)
Pin 3: Switched 12V from relay
Pin 4: Connected to an ignition output (gray wire)
Denso
099700-101
Integrated igniter
Honda New Civic
Pin 1: Switched 12V from relay
Pin 2: Power ground (engine head)
Pin 3: Connected to an ignition output (gray wire)
Denso
099700-115
Integrated igniter
Honda Civic Si
(with no alternator, use 5ms of
Dwell)
Pin 1: Switched 12V from relay
Pin 2: Power ground (engine head)
Pin 3: Connected to an ignition output (gray wire)
