Fuji Xerox ApeosPort-V C5580 Administrator's Guide

Paper Jams
575
Problem Solving
15
Paper Jams in the Folder Unit CD1
The following describes how to clear paper jams inside the folder unit when the Folder Unit
CD1 (optional) is installed.
Paper Jams at the Handle [2a].................................................................................................................................................575
Paper Jams at the Handle [2b].................................................................................................................................................576
Paper Jams at the Knob [2c], the Handle [2e]/[2f], and the Tri-fold Output Tray [2d]..............................................576
Paper Jams at the Tri-fold Output Tray [2d] and the Handle [2g] ..................................................................................577
Note • A remedy differs depending on where the paper jam occurs. Follow the instructions displayed and
remove the jammed paper.
Paper Jams at the Handle [2a]

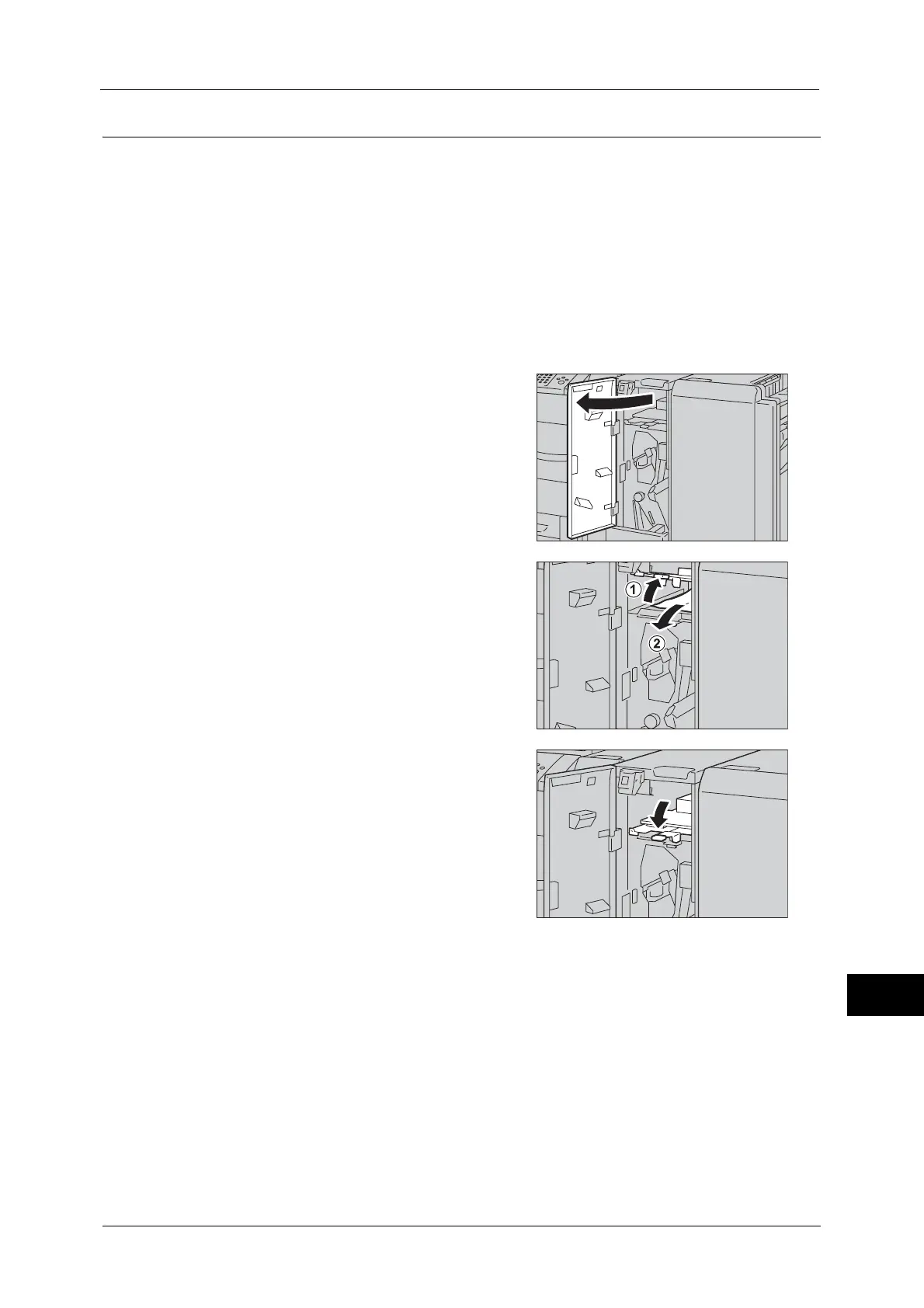

1 Make sure that the machine has stopped, and
open the folder unit door of the Folder Unit
CD1.
2 Move the handle [2a] to the upper direction (1),
and remove the jammed paper (2).
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
3 Return the handle [2a] to its original position.
4 Close the folder unit door of the Folder Unit CD1.
Note • A message will be displayed and the machine will not operate if the folder unit door of the Folder
Unit CD1 is even slightly open.
