Use the following equation to obtain the tilt extent amount, with "A" as the length of the
side registration on the leading edge of the output sample, and "B" as the length of the side
registration on the trailing edge of the output sample.
Skew amount = A - B
2

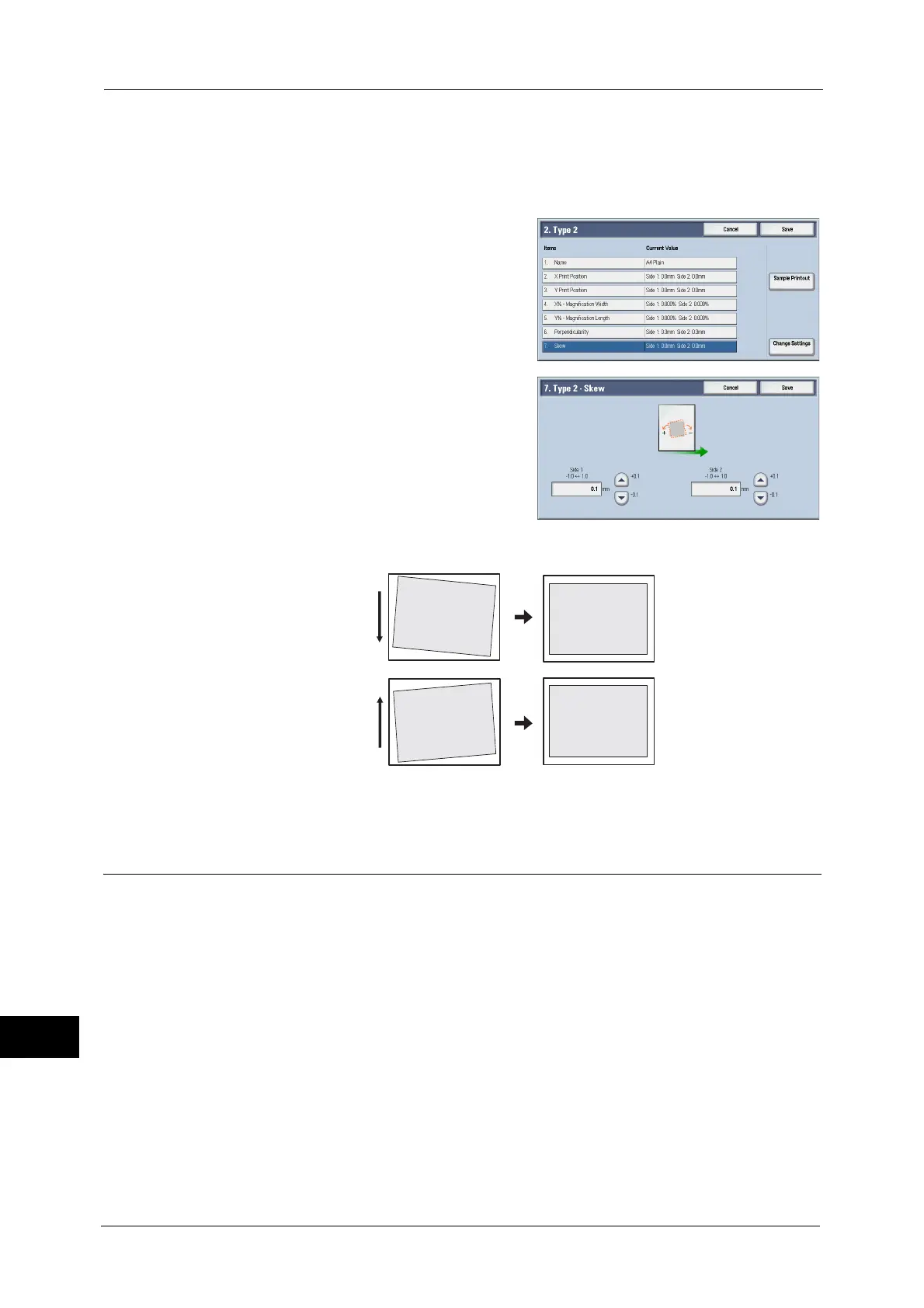

Select [Skew], and select [Change Settings].
3
Enter a value with the tilt extent amount
measured in step 1 added as the current
setting value of [Side 1] and [Side 2].
Note • Entering a positive or negative value adjusts the tilt extent as shown below.
4
Select [Save].
Scale Adjustment
Adjust the size (scale) of the image in the paper feed direction and in the vertical direction
in relation to the paper feed direction in 0.025% increments for both sides 1 and 2.
Specify a positive value to increase the scale, and a negative value to reduce it.
Entering a
positive value
After adjustment
Adjustment
direction
Adjustment
direction
After adjustment
Entering a
negative value
