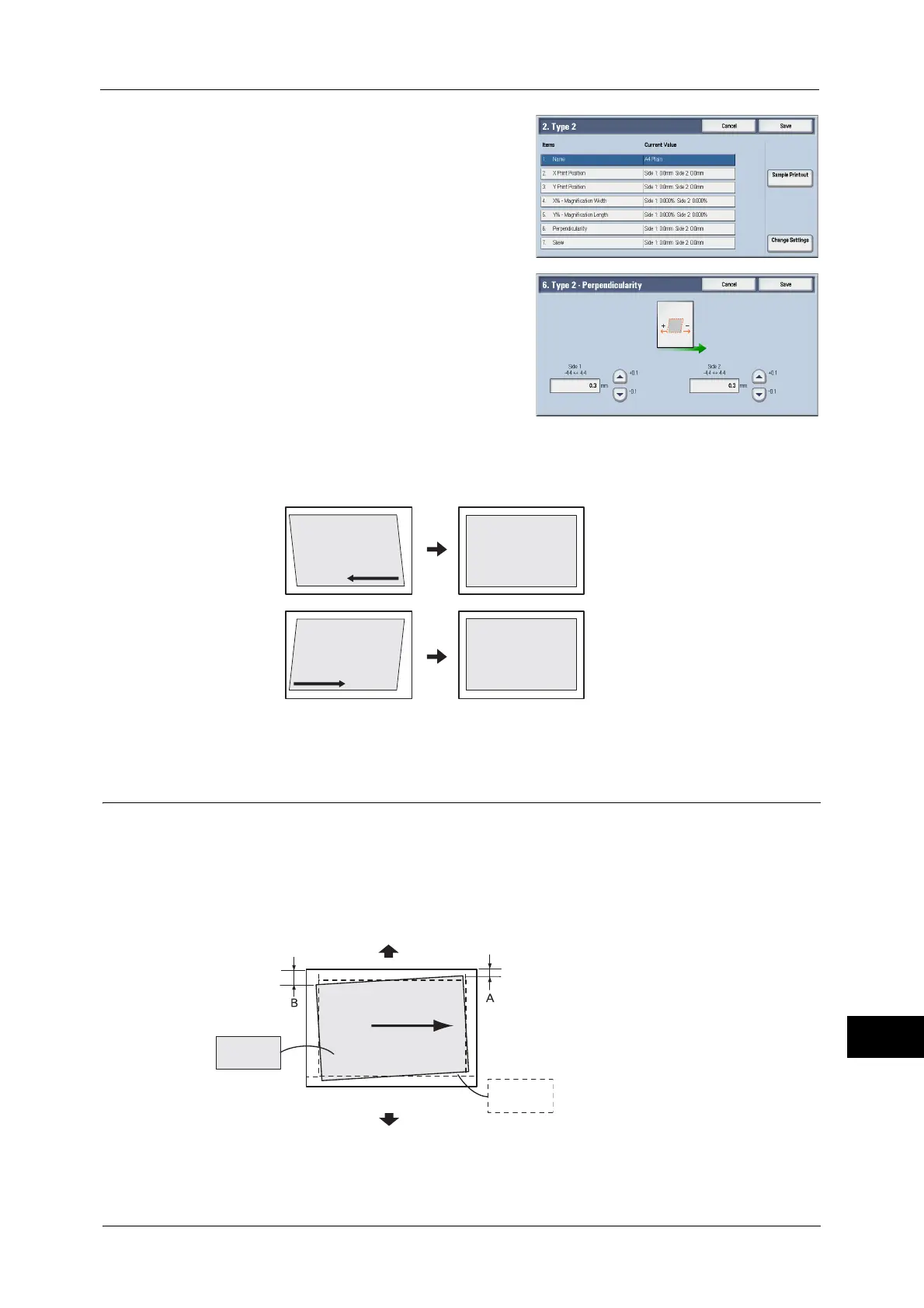

Alignment Adjustment Settings
611
Appendix
16
2
Select [Perpendicularity], and then select
[Change Settings].
3
Enter a value by adding the perpendicularity
misalignment amount measured in step 1 to
the current setting value of [Side 1] and [Side
2].
Note • The values displayed in [Side 1] and [Side 2]
vary depending on the machine. The
Alignment Adjustment Type feature adjusts
relative difference between the sides 1 and 2.
Thus, if adjustable amount to the desired
direction is not enough in one side, adjust the
other side.
• Entering a positive or negative value adjusts the squareness as shown below:
4
Select [Save].
Skew Adjustment
Adjust image skewing (tilt extent) in 0.1 mm increments for each of sides 1 and 2.
Set positive number to rotate the image in a clockwise direction, and conversely, set
negative number to rotate the image in a counterclockwise direction.
1
Check the sample printout, and measure the squareness offset amount that occurred.
Input of
+ Adjustment Value
After Adjustment
Input of
- Adjustment Value
After Adjustment
Adjustment Direction
Adjustment Direction
Paper feed direction
Back of Machine
Side 1
Front of Machine
Side 2
