Fuji Xerox ApeosPort-V C5580 Administrator's Guide

Alignment Adjustment Settings
613
Appendix
16

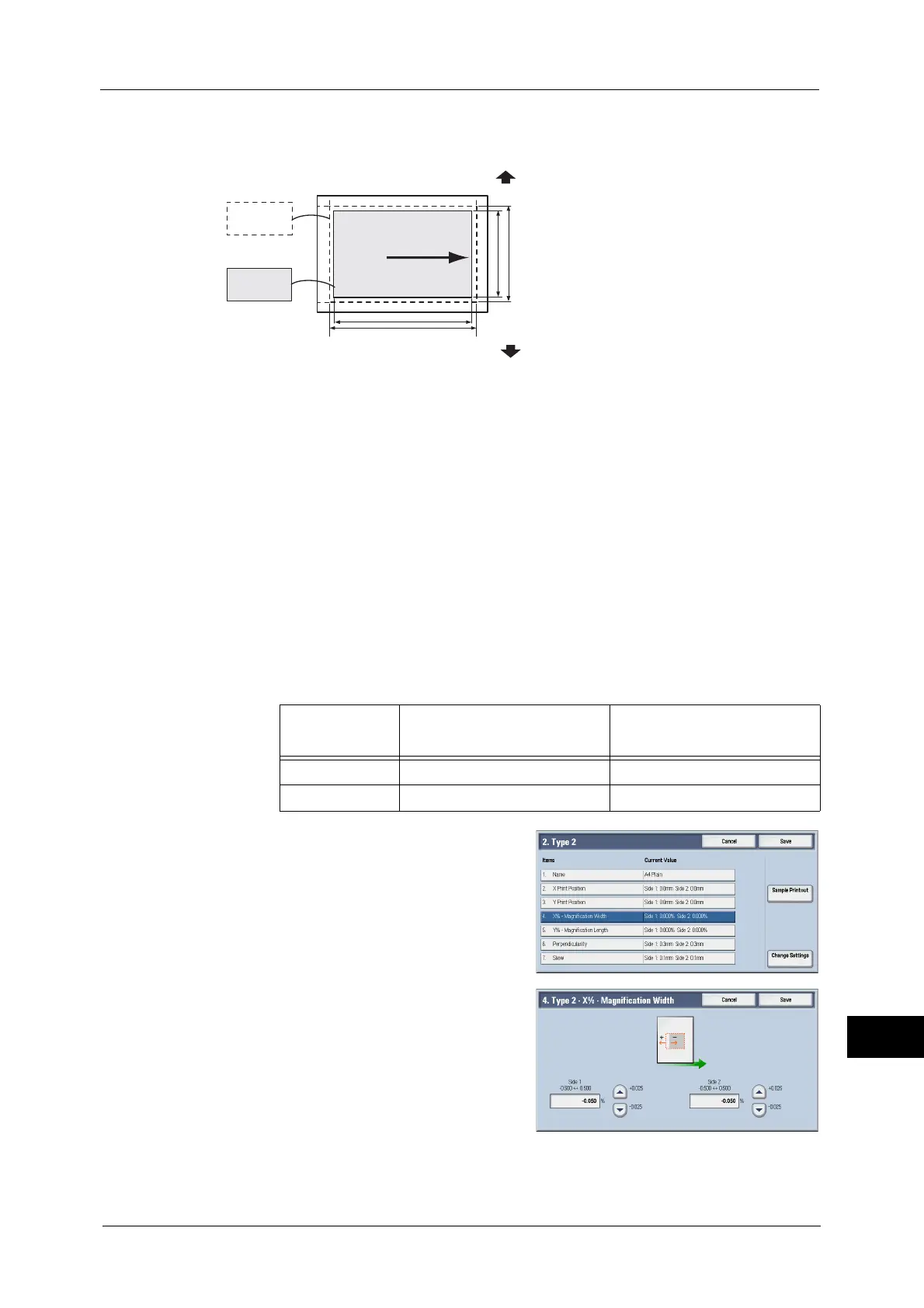

1 Check the sample printout, measuring the amount of scale misalignment.
The scale may become a negative value depending on the scale misalignment amount.

Paper feed direction: X direction scale
X direction scale misalignment amount = image actual measurement length in the X
direction - image reference length in the X direction
X direction scale correction amount = -1 × (scale misalignment amount in the X direction
divided by image reference length in the X direction) × 100

Vertical direction in relation to the paper feed direction: Y direction scale
Y direction scale misalignment amount = image actual measurement length in the Y
direction - image reference length in the Y direction
Y direction scale correction amount = -1 × (scale misalignment amount in the Y direction
divided by image reference length in the Y direction) × 100
Note • The reference lengths for a sample printout of A3 or A4 size printed with [Sample Printout] are as
follows:
2 Select [X% - Magnification Width] or [Y% -
Magnification Length], and then select
[Change Settings].
3 Enter a value by adding the X direction scale
correction amount you measured in step 1 to
the current setting values of [Side 1] and [Side
2] of [X% - Magnification Width].
Enter a value by adding the Y direction scale
correction amount you measured in step 1 to
the current setting values of [Side 1] and [Side
2] of [Y% - Magnification Length].
Paper Size
Image Reference Length in
X Direction
Image Reference Length in
Y Direction
A3 400 mm 277 mm
A4 190 mm 277 mm
Paper feed direction
Back of Machine
Side 1
Front of Machine
Side 2
Measure the scale offset
in the X direction
Measure the scale offset
in the Y direction
