Alignment Adjustment Settings
609
Appendix
16
Note • We recommend that you use a name such as "A4 Plain" with which you can recognize the content.
10
Select [Sample Printout].
11
Select the tray in which you loaded paper in
step 1, and then select [2 Sided] or [1 Sided],
output color, and the number of sheets.
Note • For Perpendicularity, select paper of A3 size.
• We recommend that you print about 10
sheets to calculate the average value of the
variations.
12
Press the <Start> button.
The current sample printout is printed.

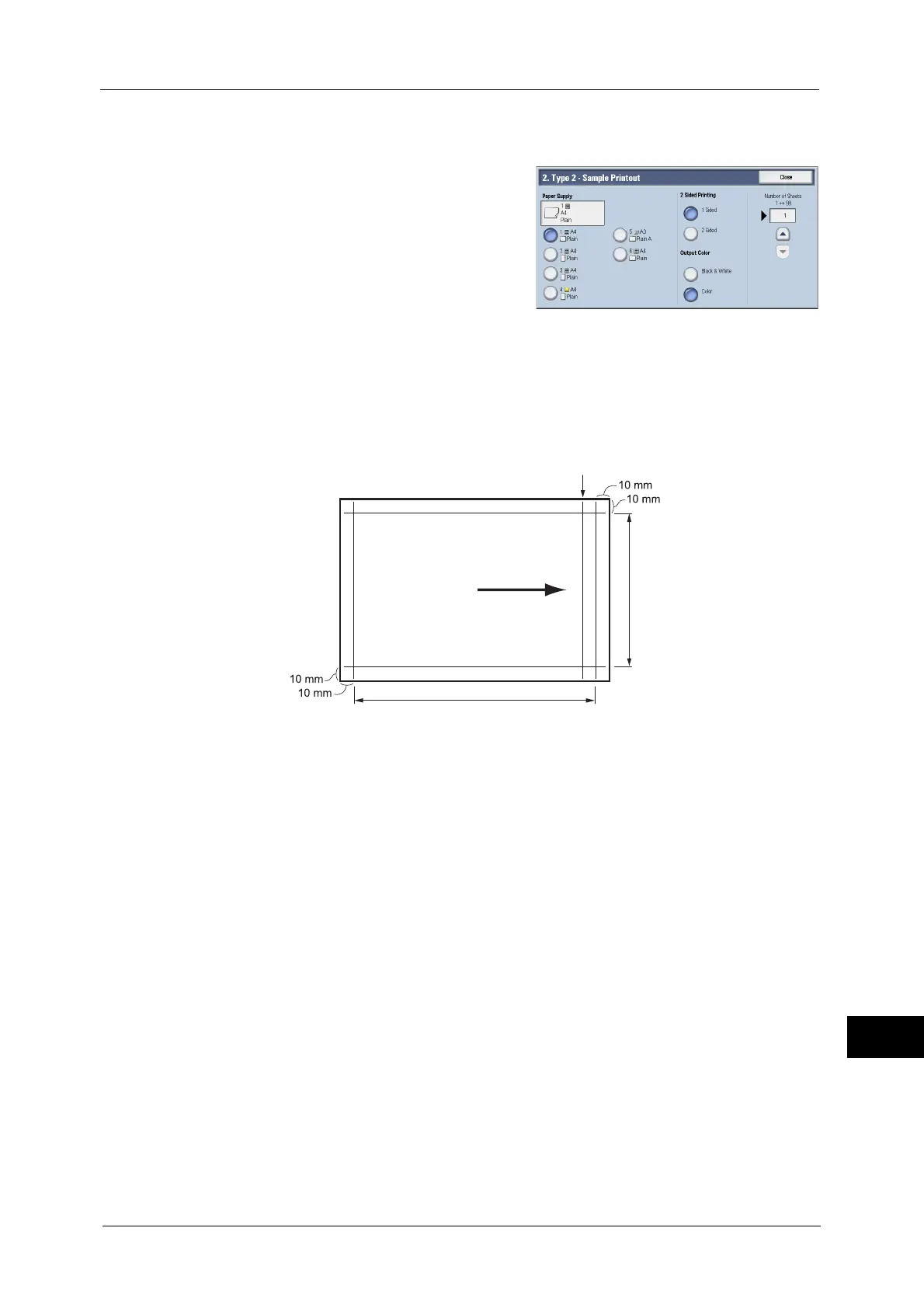

If the position of the sample printout is correct, a line is printed at a position 10 mm from
the edge of the paper. If the position of the line on the sample printout is misaligned, adjust
the alignment.
Note • Two lines are printed on the image of side 1 and one line is printed on the image of side 2 of the
sample printed with [Sample Printout] to indicate the paper feed direction.
13
Select [Confirm].
14
Select [Save].
15
Check the sample printout, and adjust the position if it is misaligned.
Important • When adjusting multiple types of misalignments, adjust them in the following order:
Perpendicularity Adjustment > Skew Adjustment > Scale Adjustment > Print Position Adjustment.
For more information on each type of adjustment, refer to the following sections:
- For perpendicularity adjustment, refer to "Perpendicularity Adjustment" (P.610).
- For skew adjustment, refer to "Skew Adjustment" (P.611).
- For scale position adjustment, refer to "Scale Adjustment" (P.612).
- For print position adjustment, refer to "Print Position Adjustment" (P.614).
16
After you complete adjustment, print another sample printout with [Sample Printout] and
check the adjustment results.
17
Adjust the alignment again if necessary.
18
Select [Save].
19
Select [Close].
Line that appears only on side 1
Paper feed direction
Y direction
X direction
