Replacing Consumables
75
Maintenance
3
2

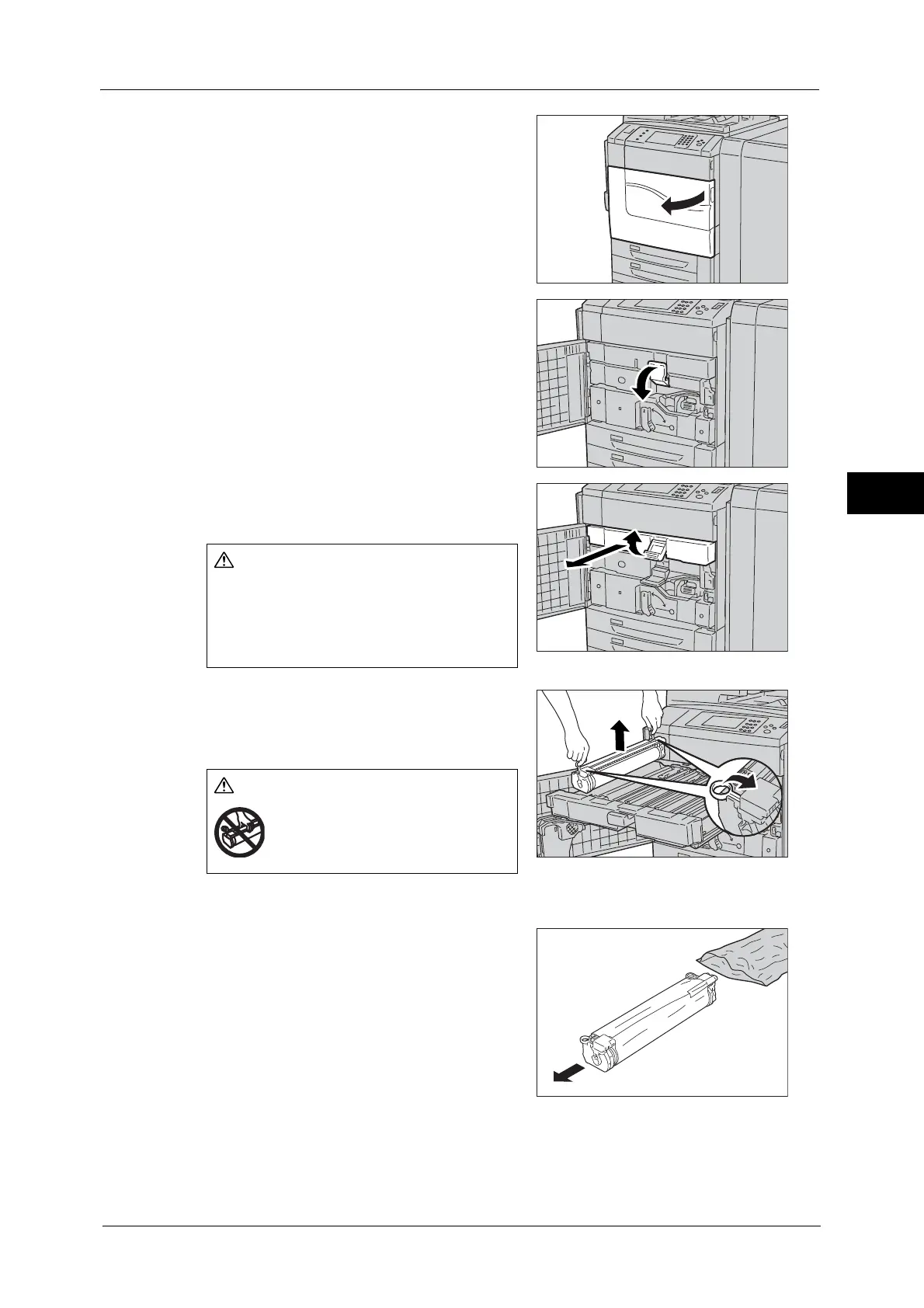

Make sure that the machine has stopped, and
open the machine front door.
3
Pull down the handle [R1-R4].
4
Grip the handle of the unit and pull out the
unit.
5
Remove the drum cartridge upward while
holding rings provided at the both ends of the
drum cartridge.
6
Place the replaced drum cartridge into the empty container.
7
Open a bag including the new drum cartridge
and take it out.
Important • Do not touch or scratch the surface of the
drum when you take it out from the bag.
Make sure to pull out the unit slowly. When
the unit is being pulled out with force, the
unit may possibly hit your knees or other
parts of your body causing injuries.
Be sure to insert your fingers into
the rings when lifting the drum
cartridge up.
