System expan sio ns

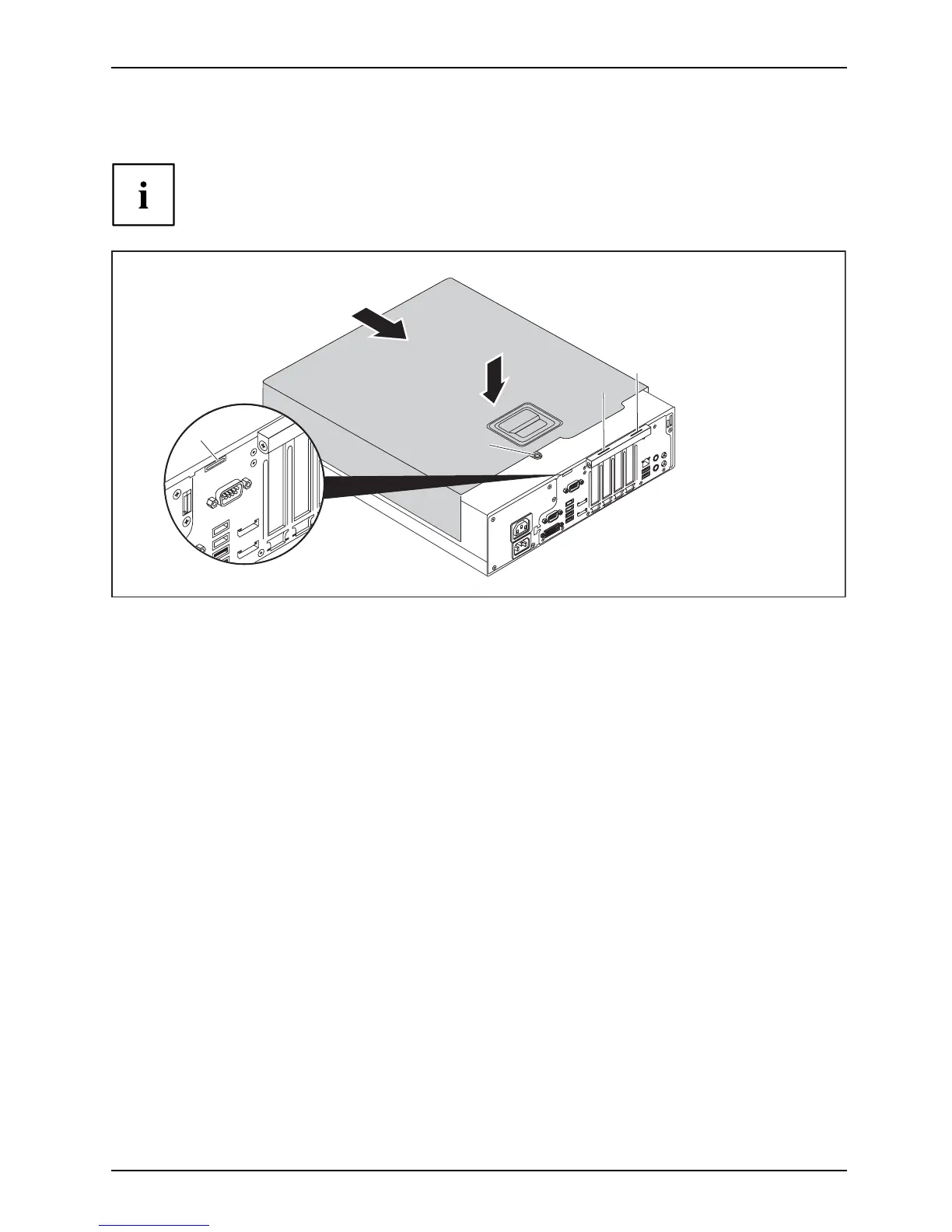

Reattaching the casing cover.
In order to make it easier to put on the ca sing cover, there are two reference lines
(c) imprinted on the board clip, which will assist you when positioning.
2
1
b
a
c
c
► Place the casing cover onto the casing (1) using the reference lines (c) for positioning
and slide the casing cover in the direction of the arrow (2) until it reaches a stop. When
doing so, m ake sure that the e ye (b) fits into the opening (a).
Thecasingcov
er will click into place automatically, without any ne ed to
move the retai
ning mechanism.
► Connect the cables to the device.
Fujitsu 37
