System expansions

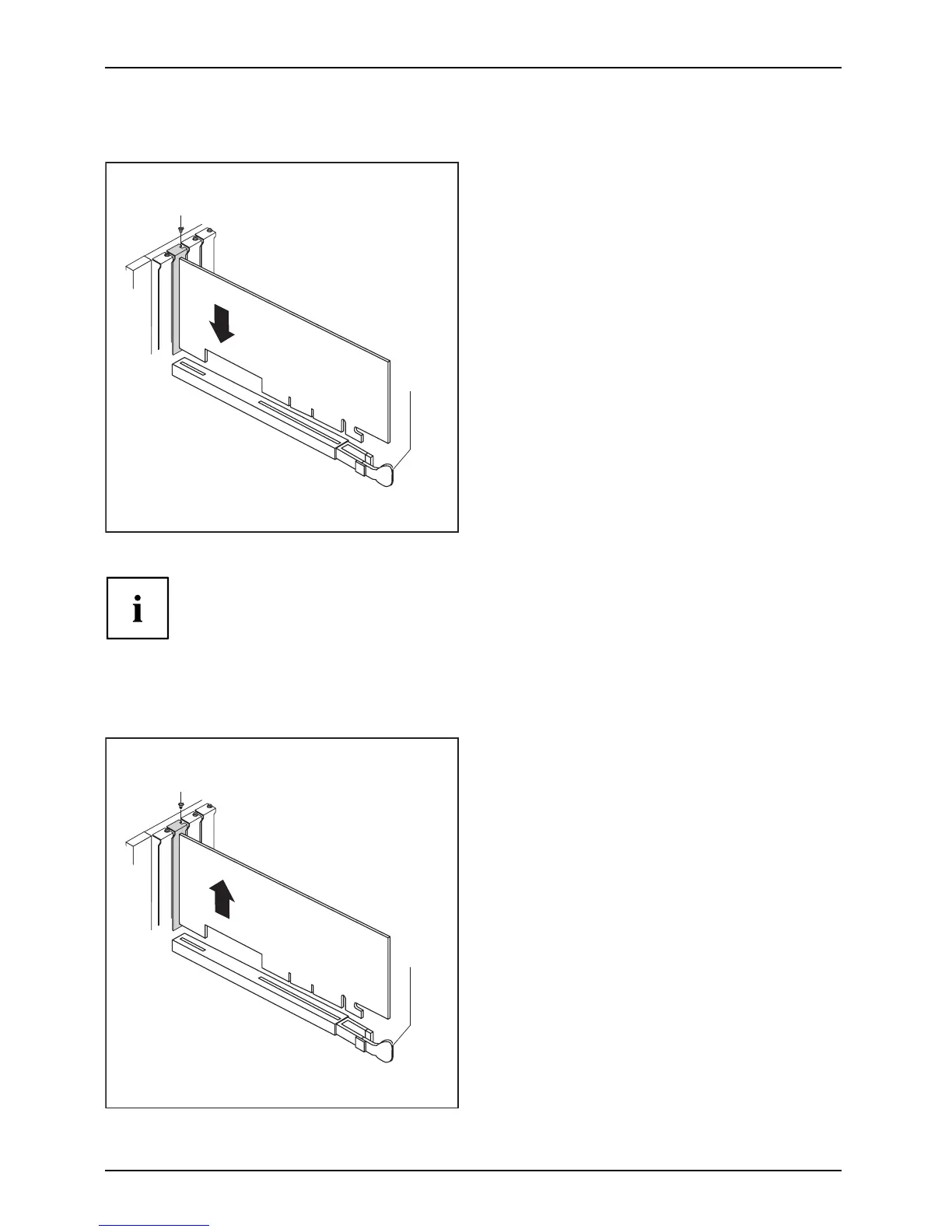

Installing a board
a
2
1
► Push the board into the slot (1)
until it engages.
If present, the additional board retaining
clip (a) engages.
► Tighten the screw (2, optional).
► If necessary, connect the cables to the board.
If you have installed or removed a board, please check the releva nt PCI
slot settings in the BI OS Setup. If necessary, change the settings. Further
information is provided in the PCI bo ard documentation.
Removing boards
► If necessary, disconnect the cables which are connected to the board.
1
2
a
► Undo the screw (1, optional).
► Release the bo ard retaining clip (a)
where applicable.
► Pull the board out of the slot (2).
► Place the board in suitable packaging.
64 Fujitsu
