System expansions

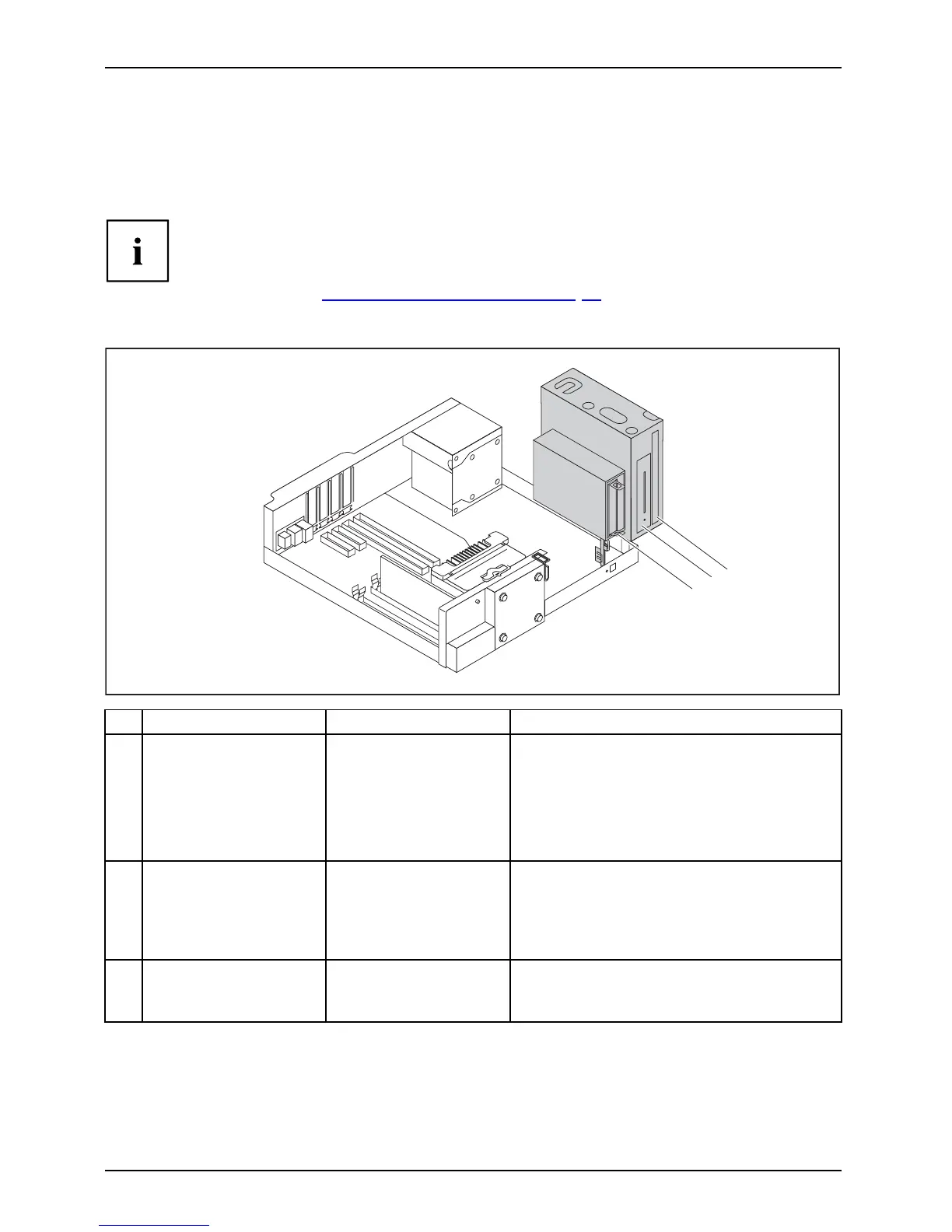

Overview of drive bays an d drives in your device
Depending on the device variant, the casing offers space for accessible and
non-accessible drives in the 3 bays.
Examples of accessible drives are DVD o r CD ROM drives, into which a data medium
can be inserted from the outside. Examples o f non-accessible drives are hard disk drives.
Furthermore, the installation options depend on the particular drive cover
being used, se e "
Changing the drive cover", Page 39.
Casing with drive cover
removed and drive cage op ened :
a
b
c
No. Bay Fixing Installati
on options in bay
a
Lower bay for
non-accessible 3½
inch drives or 2½ inch
drives
EasyChange rails or
screw fa stening
• 1 x non-accessible 3½ inch drive,
EasyChange
• 2 x non-accessible 2½ inch drives with
3½ inch adapter, EasyChange
• 1 x non-accessible 2½ inch drive,
screw fastening
b
Middle bay for
3½ inch drives or
non-accessible 2½
inch drives with 3½
inch adapter
Screw fa sten ing • 1 x accessible 3½ inch drive
• 1 x non-accessible 3½ inch drive
• 2 x non-accessible 2½ inch drives, with
3½ inch adapter
c
Uppe
rbayforan
acce
ssible slimline
driv
e
Driv
e plate (screwless)
1 x slimline drive
