Fujitsu ESPRIMO D5 Series - Closing the Board Retaining Mechanism

System expansions

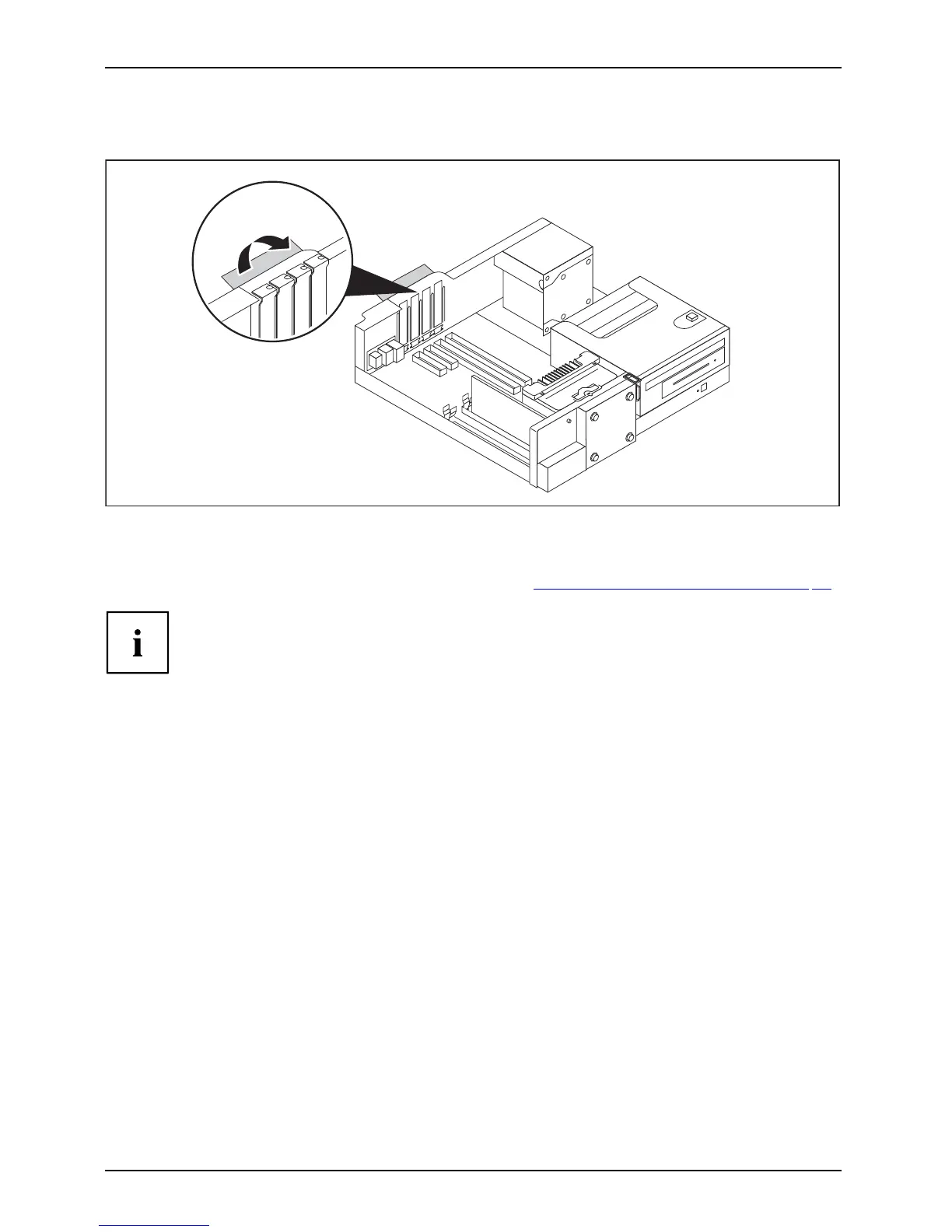

Closing the board retaining mechanis m
1
► Fold the board retaining mechanism to the closed position (1).
► If necessary, also s ecure the board clip with the optional safety screw when present.
► Fit the casing cover back onto the casing (see Chapter "
Reat taching the cas ing cover.", Pag e 37).
If you have installed or removed a board, please check the releva nt PCI
slot settings in the BI OS Setup. If necessary, change the settings. Further
information is provided in the PCI bo ard documentation.
66 Fujitsu
