Fujitsu ESPRIMO D5 Series - Installing and removing drives in the lower bay (optional); Installing and removing a 3½ inch drive or a 3½ inch adapter

System expansions
Closing the drive cage
1
2
b
a

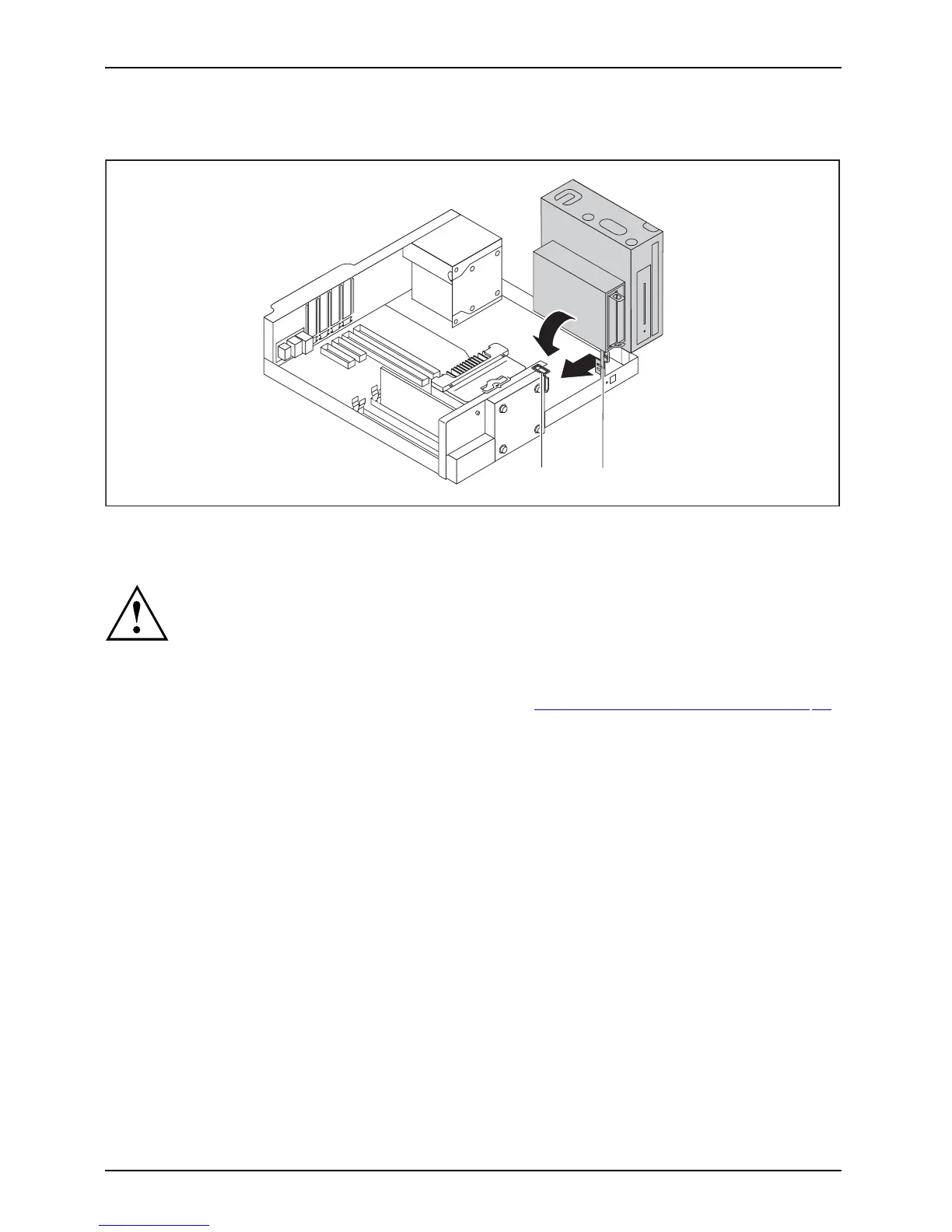

► Gently p ress the upright bracket (b) of the drive cage in the direction of the
arrow (1) until you c an move the drive cage.
When closing the drive c age , take care that no cables become trapped a nd
that the release catch (a) of the drive cage engages again.
► Fold the drive cage in the direction of the a rro w (2).
► Fit the casing cover onto the casing again (see chapter "
Reat taching the casing cover.", Pag e 37).
