System expan sio ns
Removing a 3½ inch drive
► Remove the casing cover (see Chapter "Removin g the casi ng cover", Page 36).
► Fold out the drive cage (see Chap ter "
Opening the drive cage", Page 47).
► Disconnect any cables connected to the drive.
1
2
a
b

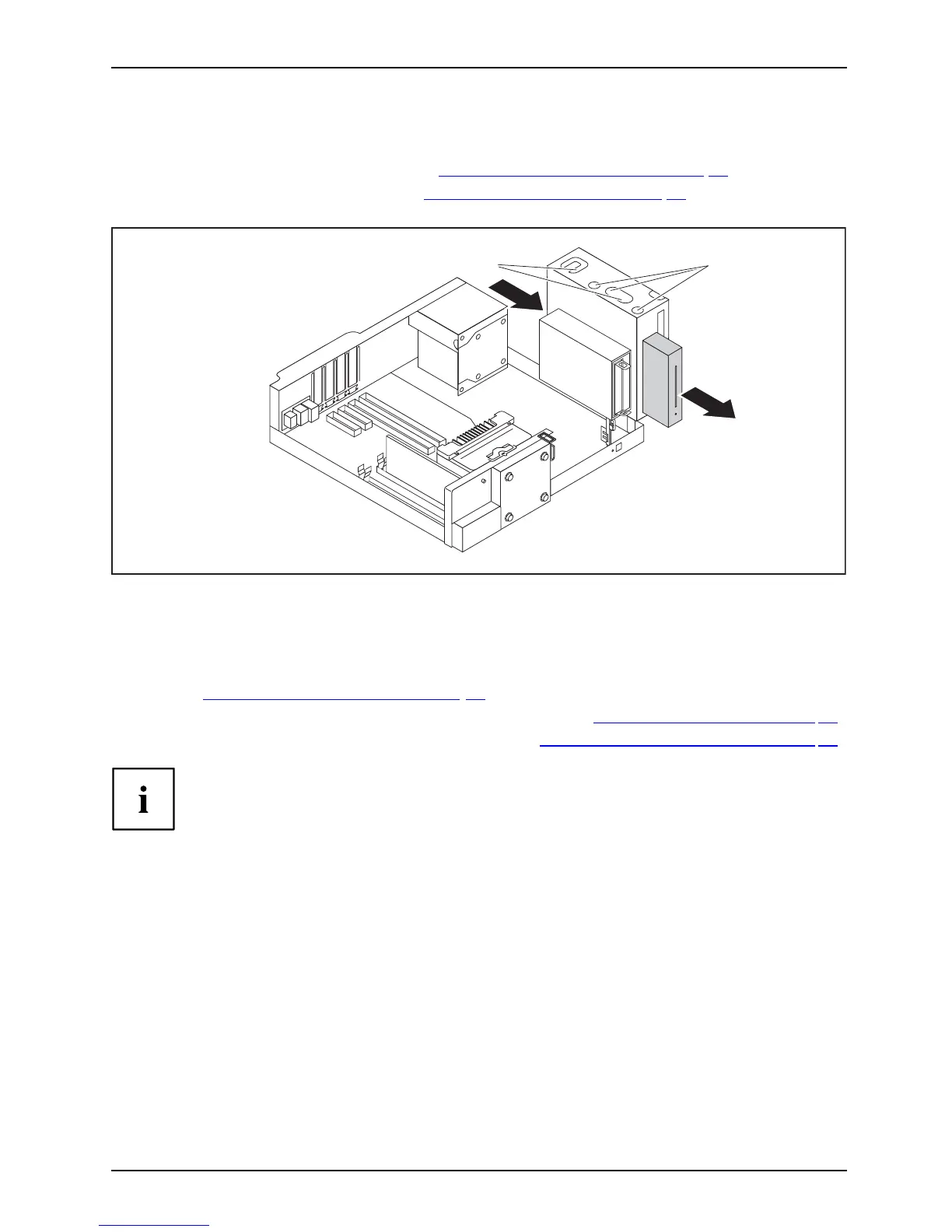

► Undo the screws (a or b , depending on the type of drive).
► Push the drive a few centimetres out of the bay in the direction of the arrow (1).
► Pull the drive completely out of the bay in the direction of the arrow (2).
► If you are not installing a new drive, change the drive cover if necessary (see
chapter "
Changing the drive cove r", Page 39).
► Fold the drive cage into the closed position again (see chapter "
Closing the drive ca ge", Page 48).
► Fit the casing cover onto the casing again (see chapter "
Reat taching the casing cover.", Pa ge 37).
If necessary, you must adjust the entry for the drive accordingly in the BIOS Setup.
Fujitsu 59
