System expansions
Installing and removing low-profile boards
Low-profilebo ard
The four slots for the boards are protected by a board clip. An additional slot cover exists for
each individual slot. If no board is installed in the slot, the slot cover protects the slot.
When you install a board, do not discard the corresponding slot cover.
For cooling, protection against fire and in order to comply with EMC regulations,
you must refit the slot cover if you remove the board.
Opening the board retaining mechanism
► Remove the casing cover (see Chapter "Re moving the casi ng cover", Page 36).
► Undo the optional safety screw of the board clip, if present.
1

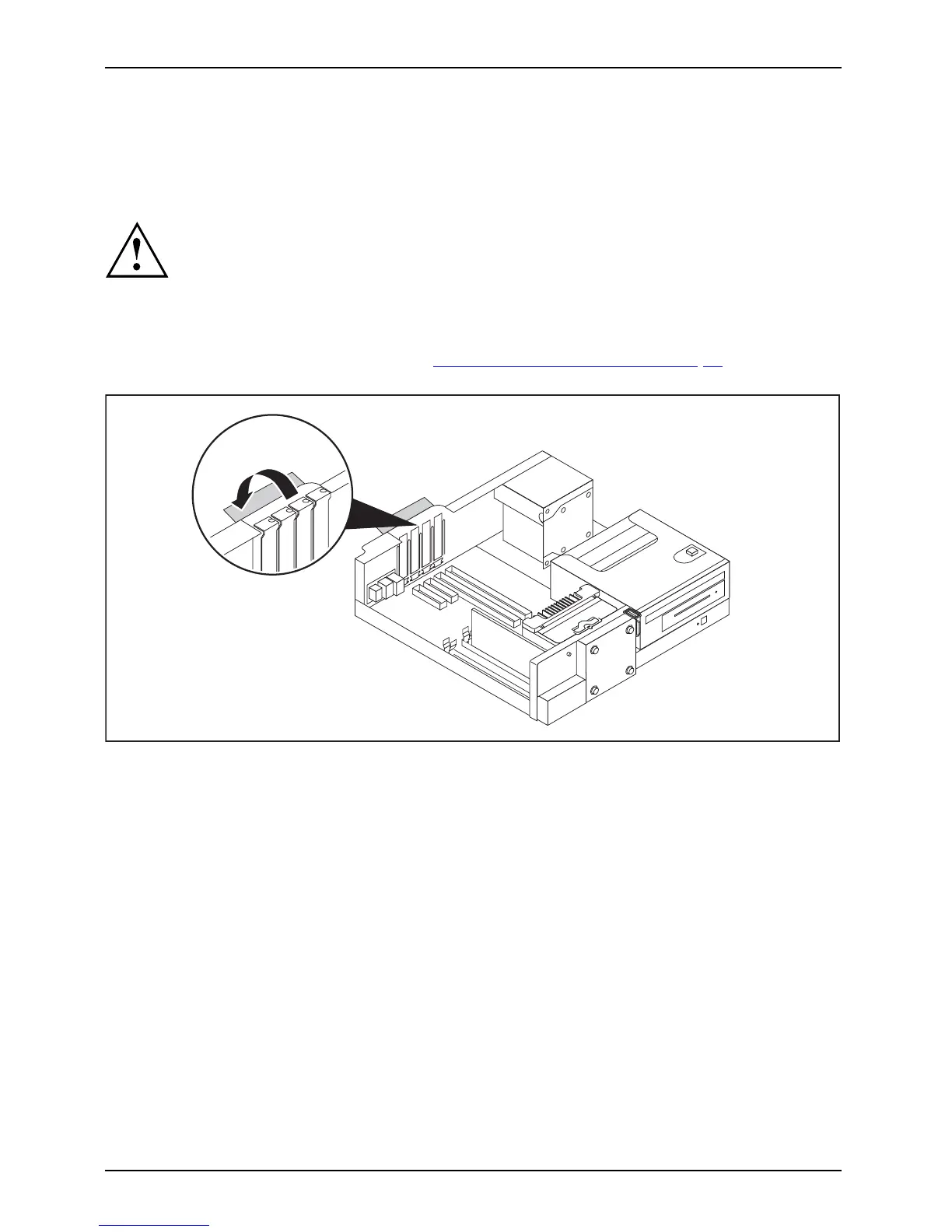

► Fold out the board retaining mechanism (1).
62 Fujitsu
