System expan sio ns

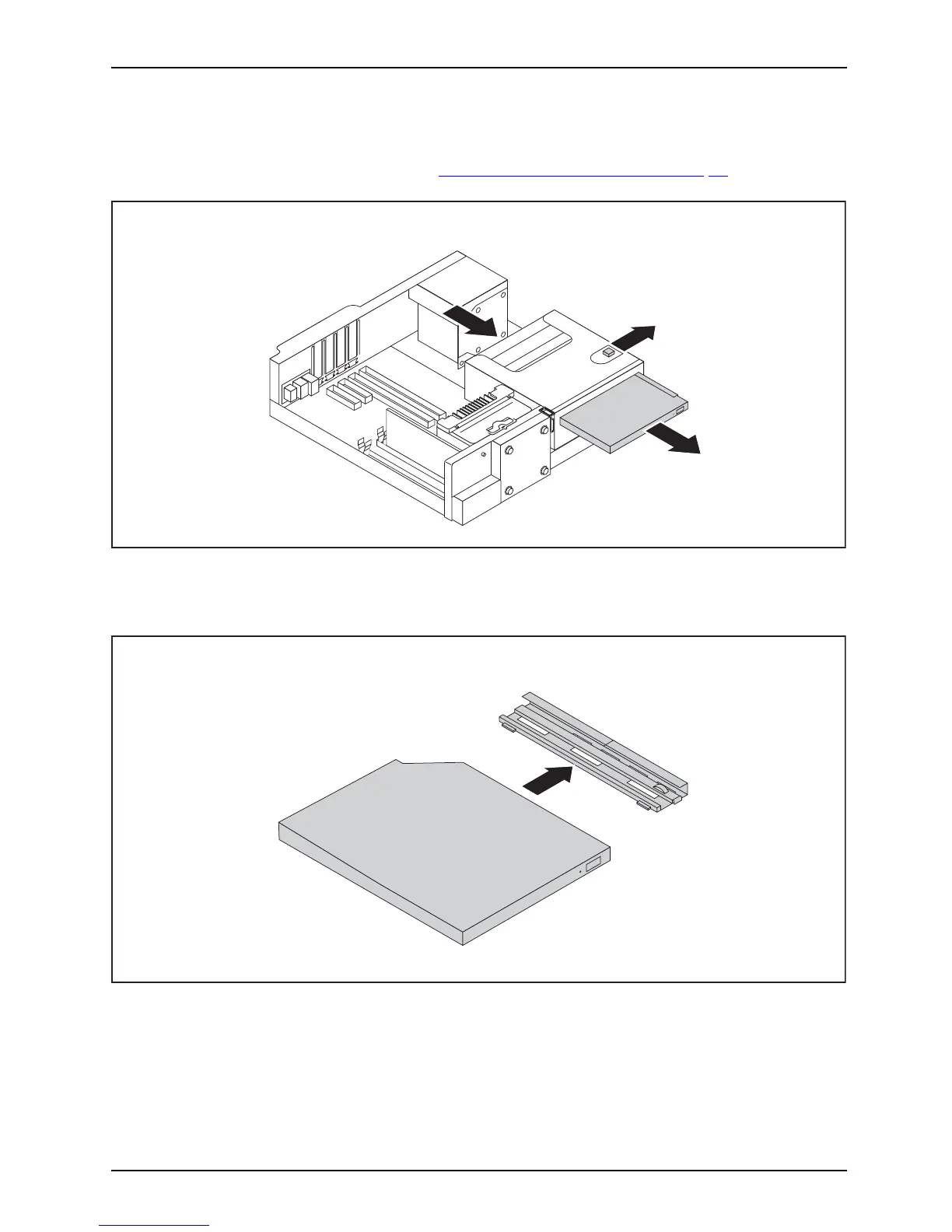

Removing a slimline d rive
► Remove the casing cover (see Chapter "Removin g the casi ng cover", Page 36).
► Disconnect the cables connected to the slimline drive.
2
3
1
► Press the clip in t
he direction o f the arrow (1).
► Push the slimline drive a few centimetres out of the bay in the direction of th e arrow (2).
► Pull the slimli
ne drive completely out of the bay in the direction of the arrow (3).
4
► Detac
h the drive plate from the slimline dri ve (4).
Fujitsu 45
