System expan sio ns
Installing a serial port
Depending on the configuration level of your device, there m ay be a second installation o pening
intended for a serial port on the rear pane l of the device. As a result, no board slot is occupied.
► Remove the casing c over (see chapter "
Removing th e casing cover", Page 36).
If there is no port already installed, the installation opening is closed off by a
sheet metal plate. Do not discard the sheet m etal plate. In order to comply
with the electromagnetic compatibility (EMC) regulations, y ou must refi tthe
sheet metal plate if you remove the serial port again.
2
1
1

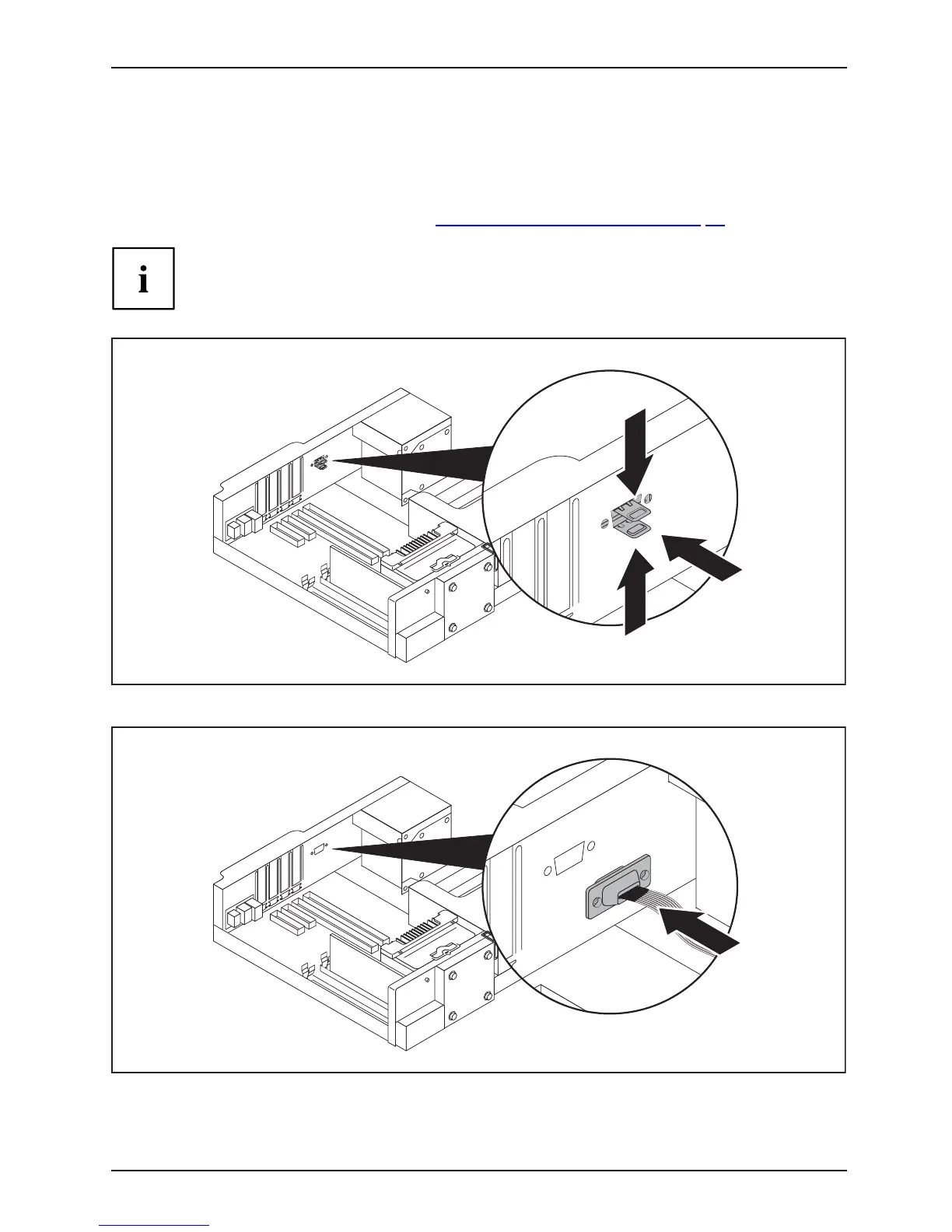

► Keep the clips (1) pressed and push the sheet metal plate out of the casing from the inside (2).
3
► Position the serial port on the inside of the device at the appropriate place (3).
Fujitsu 69
