System expansions
Removing a drive
► Remove the casing cover (see chapter "Removing the casin g cover", Page 36).
► Fold out the drive cage (see chapter "
Opening the drive cage", Page 47).
► Disconnect any cables that are connected to the drive.
1
3
2

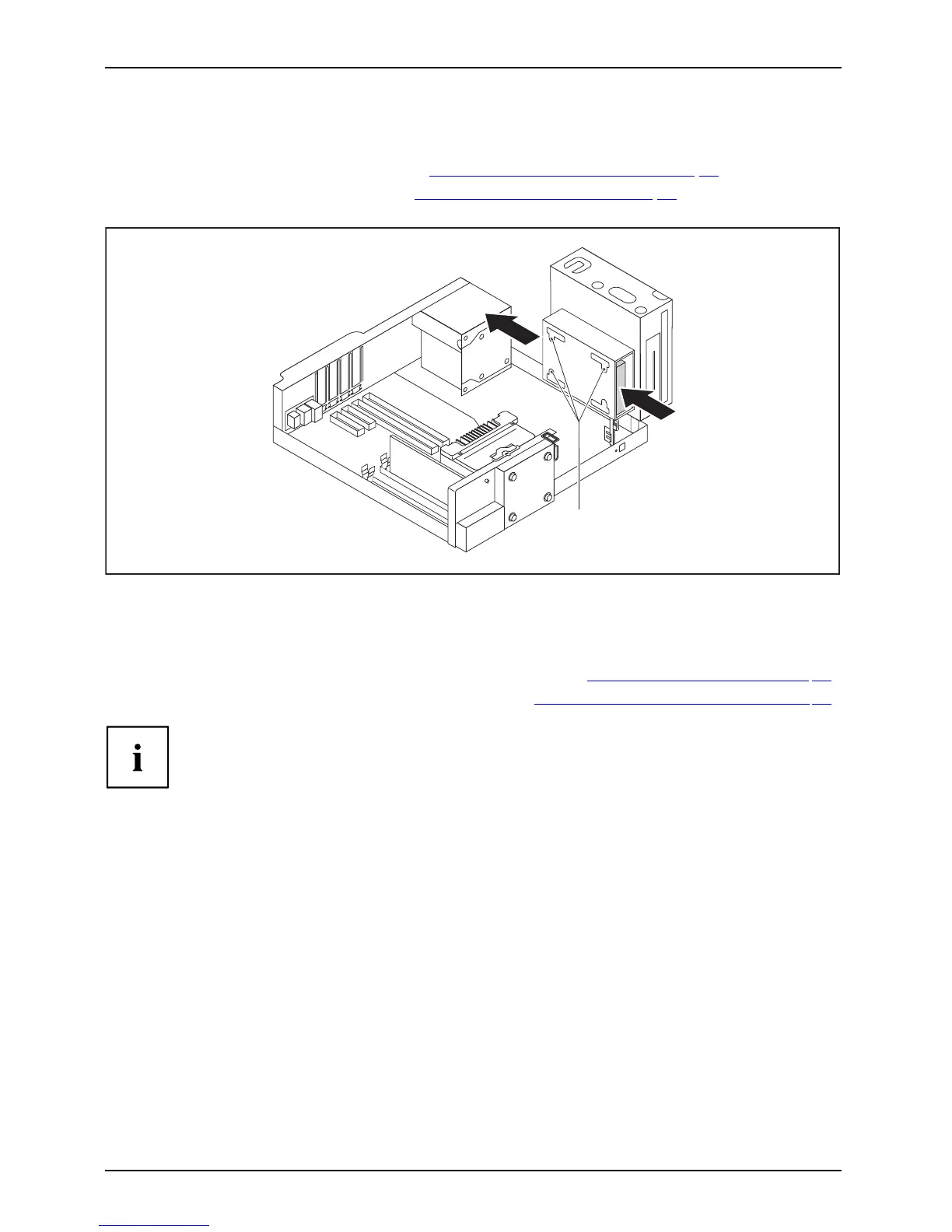

► Undo the screw s (1).
► Push the drive a few centimetres out of the bay in the direction of the arrow (2).
► Pull the drive completely out of the bay in the direction of the arrow (3).
► Fold the drive cage into the closed position again ( see chap ter "
Closing the drive cage", Page 4 8).
► Fit the casing cover onto the casing again (see chapter "
Reat taching the casing cover.", Pag e 37).
If necessary, you must adjust the e ntry for the drive accordingly in the BIOS Setup.
