Fujitsu fi-7300NX User Manual

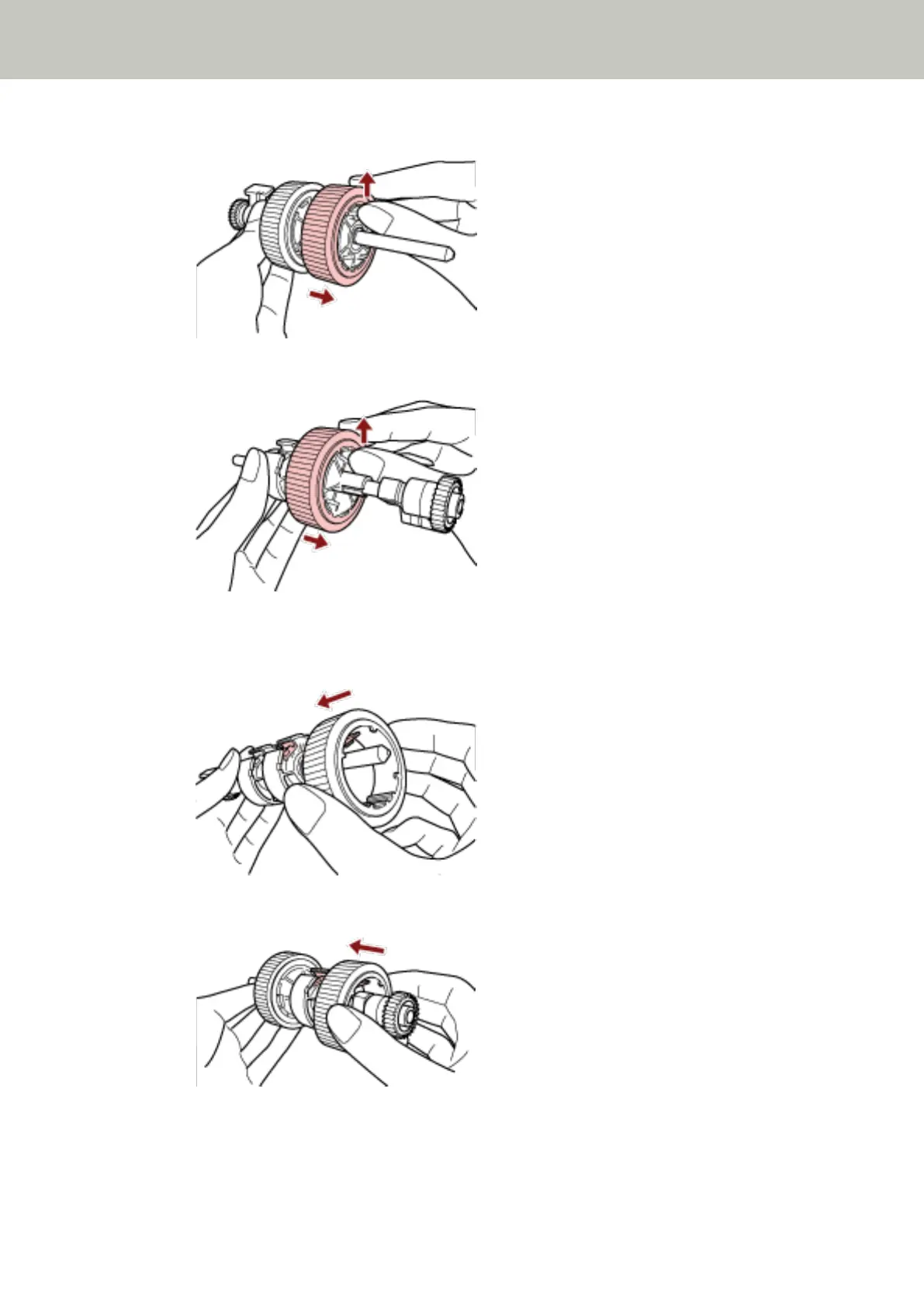

a Pull out the pick roller from the shaft as you lift the retaining clip.
b Pull out the other pick roller from the shaft as you lift the retaining clip.
7 Attach new pick rollers (× 2) on the shaft one by one.
a Insert the retaining clip of the pick roller into the slot.
b Insert the retaining clip of the other pick roller into the slot.
Replacing the Consumables
135
