Specifying the Area to Detect Overlapped Documents
[Document check area specification for Multifeed Detection]
Specify an area to detect overlapped documents.
Specify this item when [Check Overlapping(Ultrasonic)] or [Check Overlapping and Length] is selected for
[Multifeed].
1 Start up the Software Operation Panel.
For details, refer to Starting Up the Software Operation Panel (page 241).

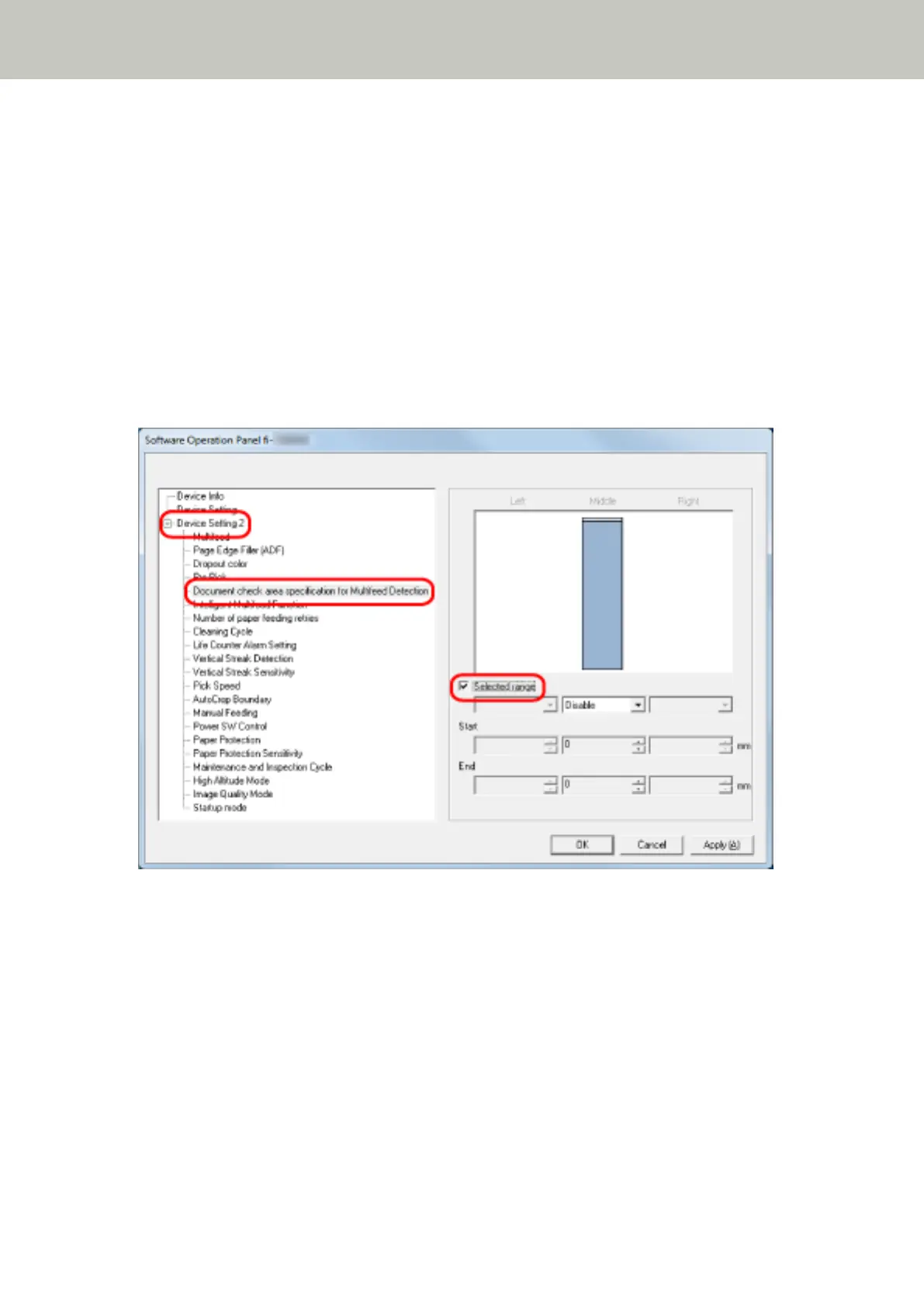

2 From the list on the left, select [Device Setting 2] →
[Document check area specification for Multifeed Detection].
Select the [Selected range] check box in the window.
3 Specify the detection range.
Scanner Settings (Software Operation Panel)
286
To Next Page
