Fujitsu PRIMERGY RX200 S2 User Manual

193
PRIMERGY RX200 S2 User’s Guide
Installing Internal Options
7
■ Connections

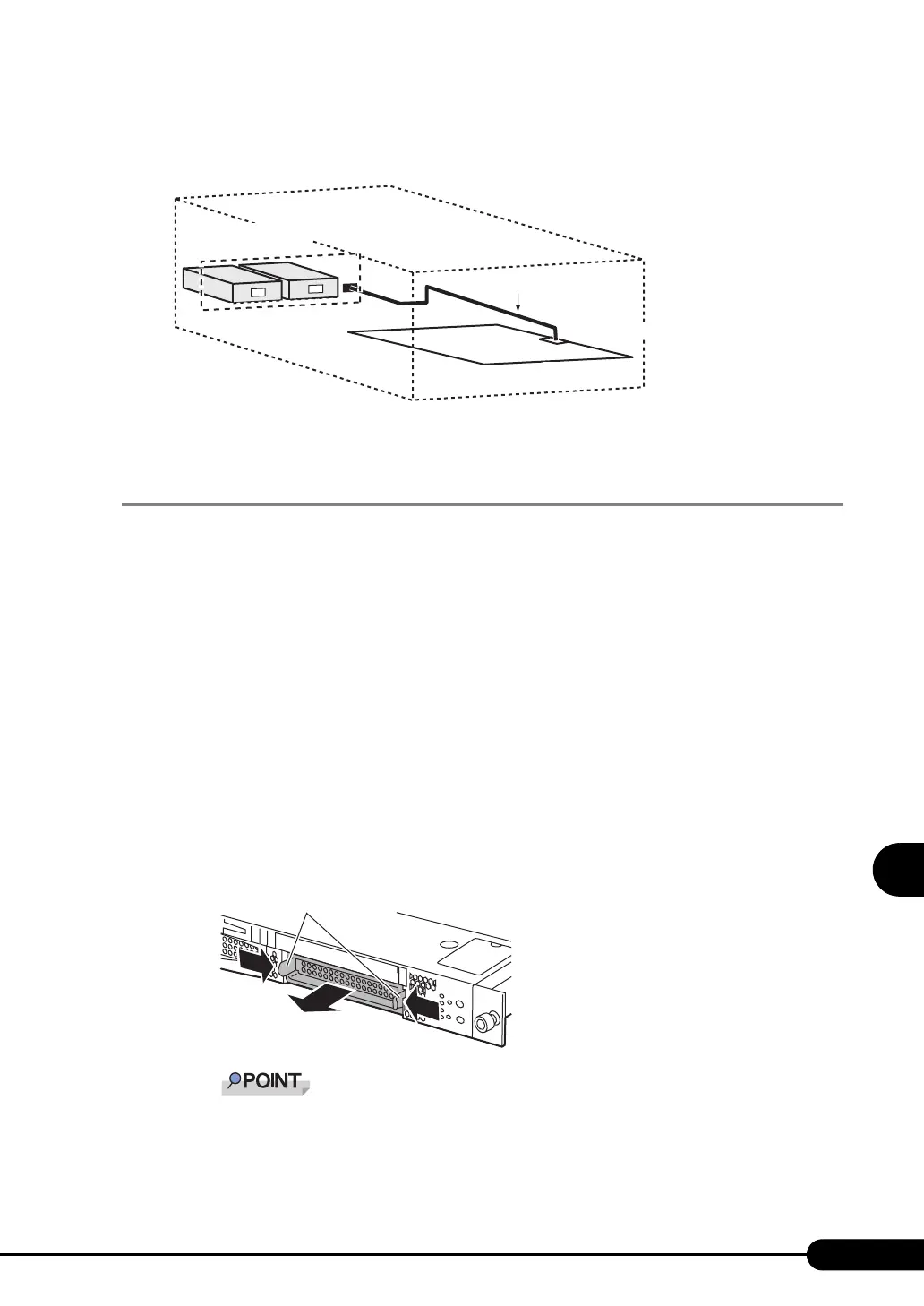

The figure below shows the connection of internal hard disk units.
7.7.3 How to Install an Internal Hard Disk Unit
This section explains how to install an internal hard disk unit.
1 Open the rack door.
"1.4.1 Opening the Rack Door" (pg.28)
2 Turn off the server and peripheral devices, then unplug the power cables from
the server.
"1.4.3 Turning Off the Server" (pg.32)
3 Touch a metal part of the server to discharge static electricity.
4 Remove the dummy unit from the bay to accommodate an internal hard disk
unit.
A dummy unit is inserted into a bay not occupied by an internal hard disk unit. Pull the dummy
unit out towards you with the latches on both sides pressed inward.
 Be sure to keep the removed dummy units for later use.
Bay2
SCSI ID: 1
[Rear]
Bay1
SCSI ID: 0
SCSI cable: Standard
Baseboard
Onboard SCSI connecto
r
Latches

Fujitsu PRIMERGY RX200 S2 Specifications

General

Chipset	Intel 5000P
Network	Dual Gigabit Ethernet
Operating System Support	Windows Server, Linux
Processor	Intel Xeon processors
Memory Slots	8 x DIMM
RAID Support	RAID 0, 1
Power Supply	Redundant power supply
Form Factor	1U rack server
