PRIMERGY RX200 S2 User’s Guide
Installing Internal Options
7
7.10 Connection of Optional Devices
This section explains connection of optional devices.
7.10.1 Connecting External SCSI Options
The following gives examples of external SCSI device connection. Note that each connection has
conditions.

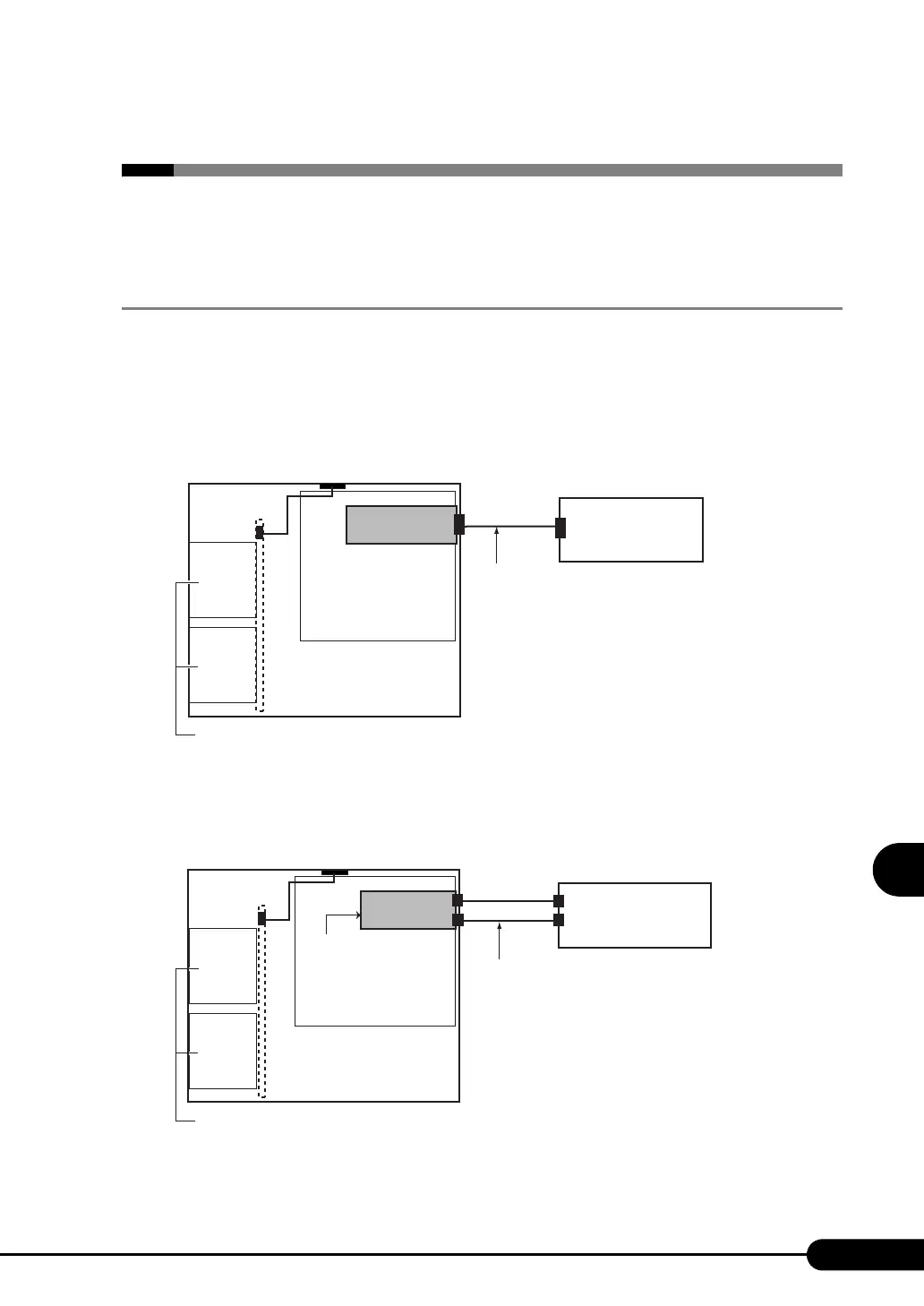

■ Connection of a Backup Cabinet
Connect a backup cabinet as shown in the figure below.
■ Connection of a Hard Disk Cabinet to Configure a Large-capacity
Array System
Connect a hard disk cabinet as shown in the figure below.
[Server]
Baseboard
SCSI cable
(PG-CBLS007 / PG-CBLS008: Optional)
Internal Hard Disk Unit
SCSI Ctrl U160 lp
(PG-130L)
Backup cabinet
(PRIMERGY SX10:
PG-R1BC4)
Internal Hard Disk Unit
[Server]
Baseboard
SCSI cable
( PG-CBLS004 / PG-CBLS005: Optional)
Hard disk cabinet
(PRIMERGY SX30:
PG-R1DC7)
RAID Ctrl 2-Channel
128MB w/ BBU (PG-142E3)

Fujitsu PRIMERGY RX200 S2 Specifications

General

Chipset	Intel 5000P
Network	Dual Gigabit Ethernet
Operating System Support	Windows Server, Linux
Processor	Intel Xeon processors
Memory Slots	8 x DIMM
RAID Support	RAID 0, 1
Power Supply	Redundant power supply
Form Factor	1U rack server
