02–TX150S2–142 July 2004 U41057-J19-Z146-1-76
Fit assembly kit and rack-mount the server Removal/installation routines
Mounting in the PRIMECENTER rack
For mounting the server in the PRIMECENTER rack the following parts from the
rack mounting kit S26361-F2734-E/L31 are necessary:
– support angle
– two telescopic rails (assembled)
– four assembly brackets (VL; VR; HL; HR)
– eight plug washers (figure below)

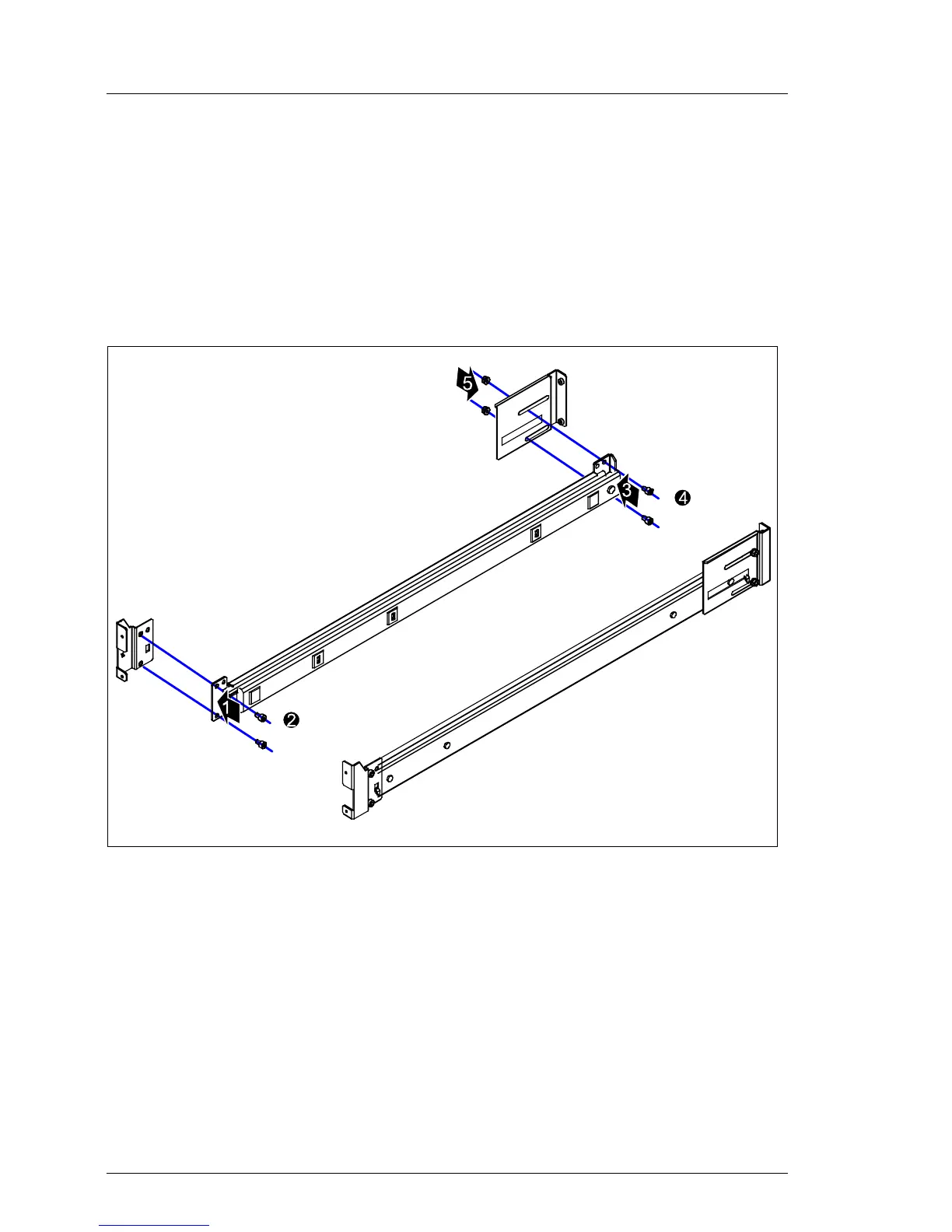

Ê Fasten the delivered assembly bracket VL on the front end of the left
telescopic rail (1) with two screws M5x8 (2).
Ê Fasten the delivered assembly bracket HL on the rear end of the left
telescopic rail (3) with two screws M5x8 (4) and two hexagonal flange nuts
M5 (5).
Ê Repeat the procedure also for the right telescopic rail and the corresponding
assembly brackets VR and HR.
VL
2x M5x8
2x M5
VR
HR
HL
2x M5x8
