For mounting the left telescopic rail in the PRIMECENTER rack, the delivered
support angle must first be mounted on the rear left support upright. The angle
must be mounted level with the lower edge of the device.
Ê Mount the support angle at the appropriate height on the left rear support
upright as described in the technical manual of the PRIMECENTER rack.
To fasten the telescopic rails, no flange nuts are necessary since the assembly
brackets are equipped with threaded holes. For adjustment in each case two
plug washers must be pre-mounted at the support uprights and the support
angle:

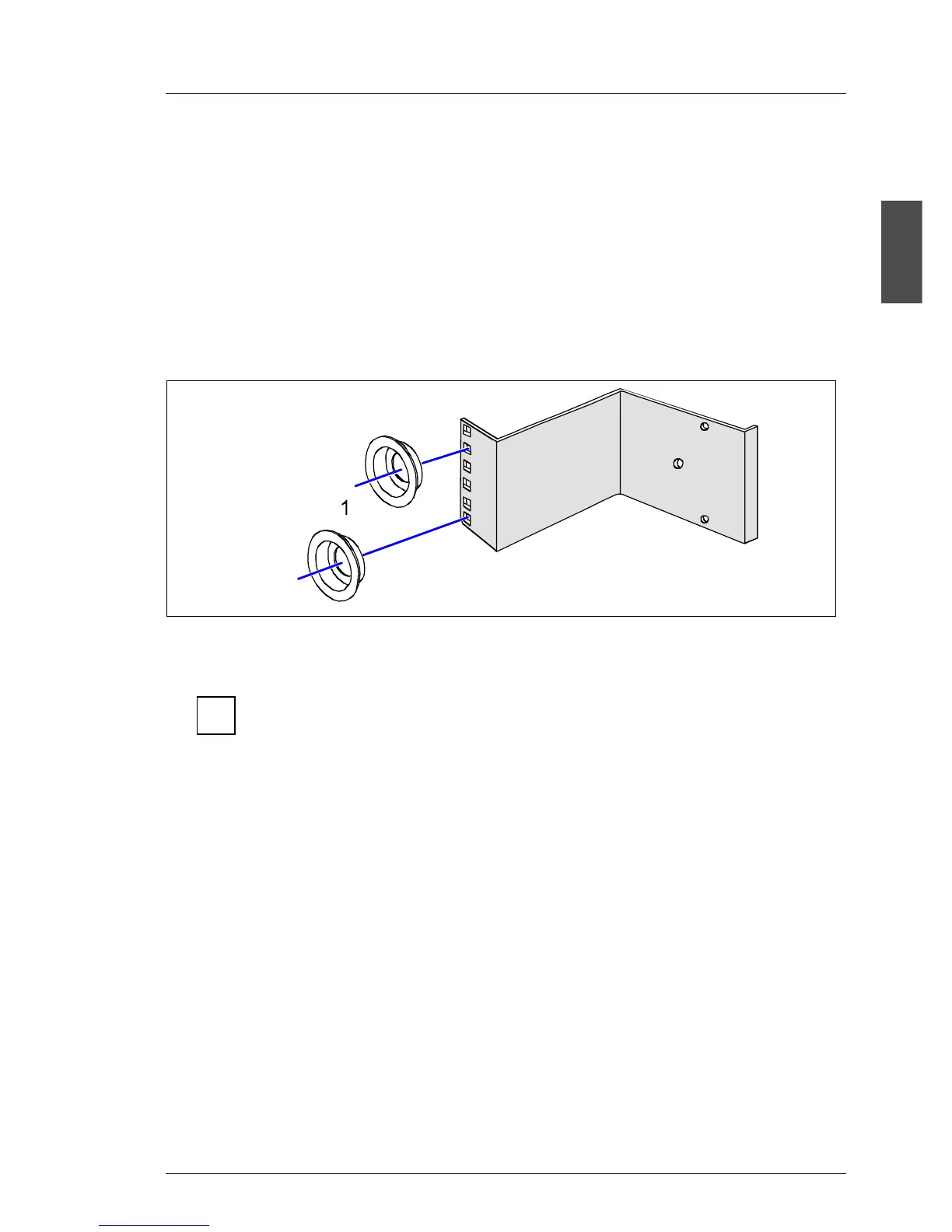

Ê Place the plug washers (1) in the holes of the support uprights and/or of the
support angle at the marked attachment points.
For better orientation the height units are marked on the support
uprights.
