02–TX150S2–144 July 2004 U41057-J19-Z146-1-76
Fit assembly kit and rack-mount the server Removal/installation routines

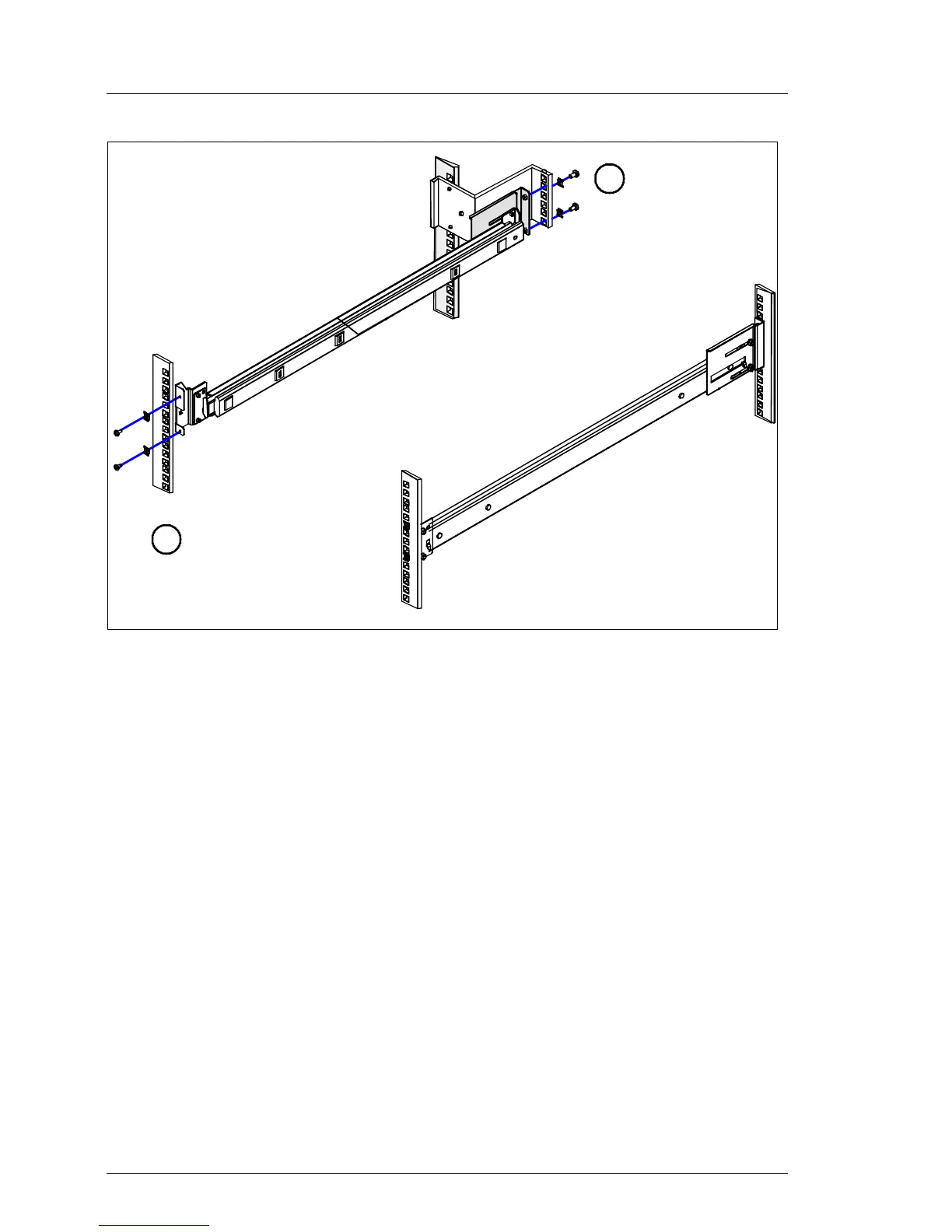

Ê Using the supplied Allen key (No. 5) secure the end of the telescopic rails
with the corresponding assembly brackets with two screws M4 each (1 and
2) in the rack at the support uprights and/or at the support angle.
Note with the fact that two plug washers each are used in the appropriate
openings of the support uprights and/or the support angle.
Ê Adjust if necessary the length of the telescopic rails by using the oblong
holes of the assembly brackets HL and HR.
Ê Mount the PRIMECENTER rack cable management (articulated cable
guide) as described in the technical manual of the PRIMECENTER rack.
Ê Mount the server (see page 02-TX150S2-154).
Ê Route the cables with the inserted server as described in the technical
manual of the PRIMECENTER rack.
2x M4x8
2x M4x8
1
2
