02–TX150S2–146 July 2004 U41057-J19-Z146-1-76
Fit assembly kit and rack-mount the server Removal/installation routines
Ê Using the mounting aid (stencil) mark the position of the attachment points
for the telescopic rails and for the server (front panel) on the support uprights
(five height units).
Refer to the information on the mounting aid.
Ê Mount the support angle at the appropriate height on the left rear support
upright as described in the service item of the DataCenter rack (see module
„System components“).
Ê Place the spring nuts to fasten the telescopic rails in the groove of the
support uprights at the marked attachment points.
Ê If necessary, adjust the position of the nuts in the groove until they lock into
the correct position.
To fasten the left telescopic rail to the support angle, no flange nuts are
necessary since the assembly bracket (HL) is equipped with threaded holes.
For adjustment two plug washers must be pre-installed in the support angle:

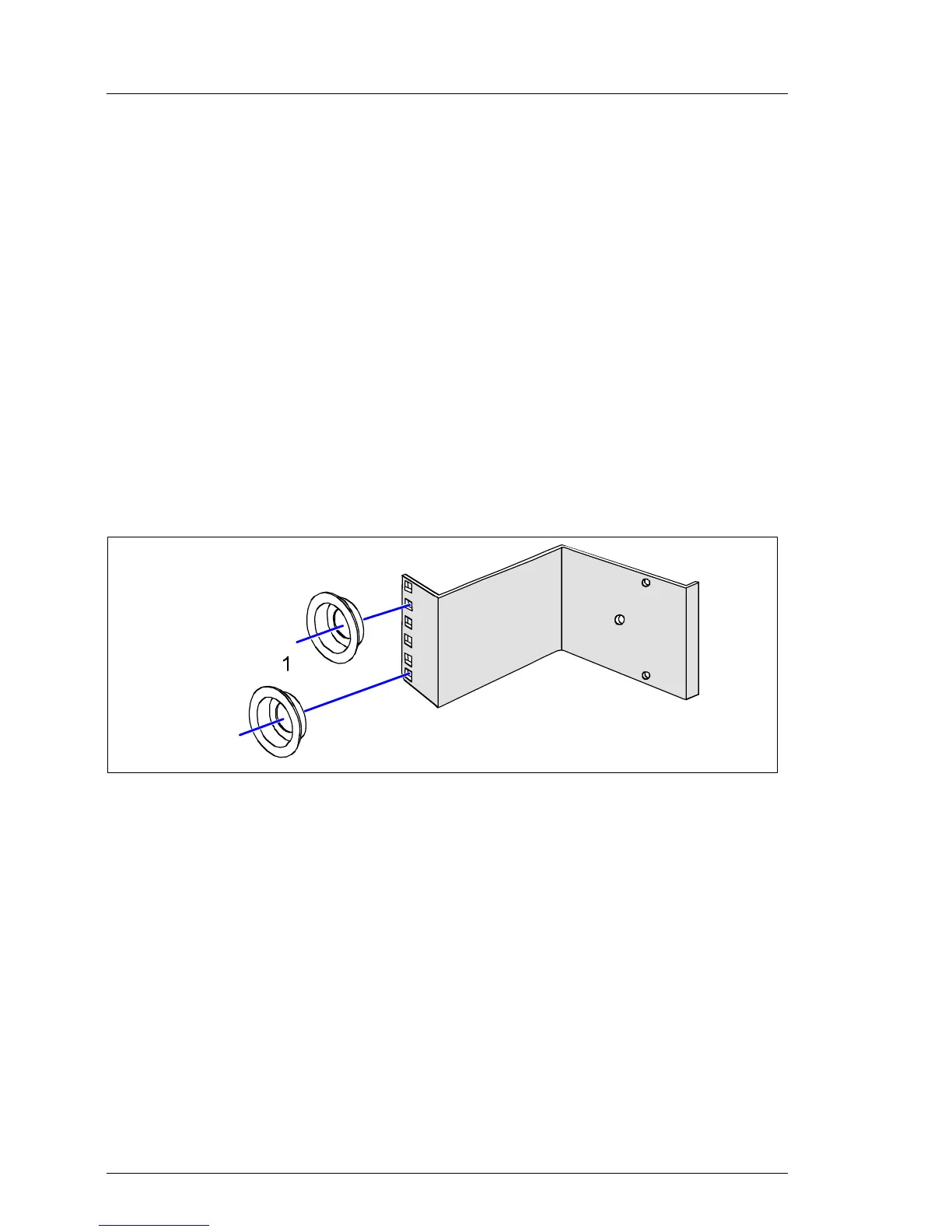

Ê Place the plug washers (1) at the marked attachment points in the corre-
sponding holes of the support angle.
