Removal/installation routines Fit assembly kit and rack-mount the server
© Siemens Nixdorf Informationssysteme AG 1995 Pfad: P:\02-systemeinheiten\TX150S2\TX150S2-e\TX150S2-e.k04

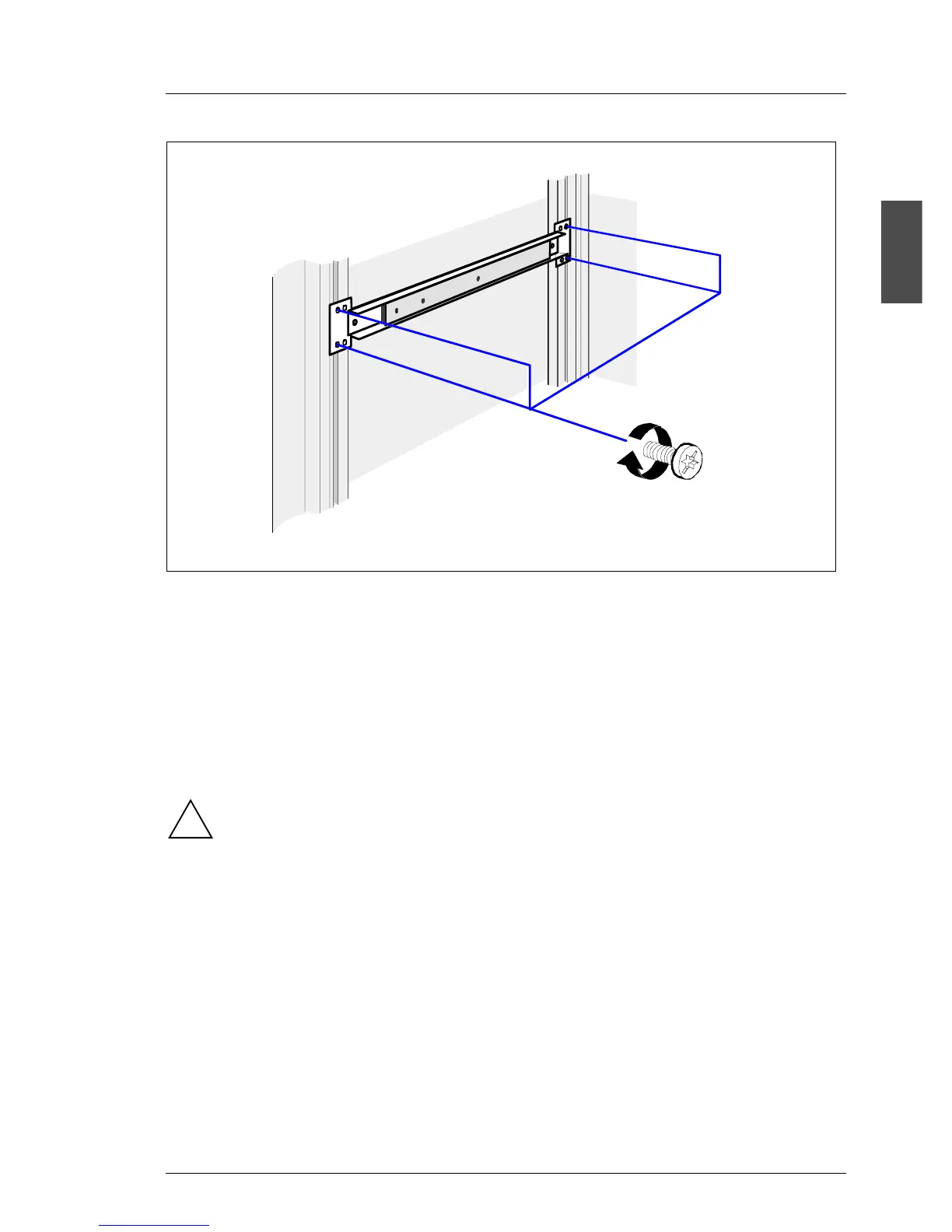

Ê Using the supplied Allen key (No. 5) secure the two telescopic rails with two
screws M5 each in the rack at the right and left support uprights.
Please note that the guide nubs of the telescopic rails next to the spring nuts
must fit into the holes in the support uprights.
Ê Mount the server (see page 02-TX150S2-154).
Mounting the articulated cable carrier (cable management)
In contrast to the instruction in the technical manual for the 19-inch
(Classic) rack the articulated cable carrier is fastened only to the support
upright - not at the server.
Ê To secure the articulated cable carrier place two spring nuts in the groove of
the rear right support upright. This must be done at a height that matches
the position of the cables on the server that the articulated cable carrier is
supporting.
!
