02–TX150S2–156 July 2004 U41057-J19-Z146-1-76
Fit assembly kit and rack-mount the server Removal/installation routines
The following steps can then be carried out by one person only.

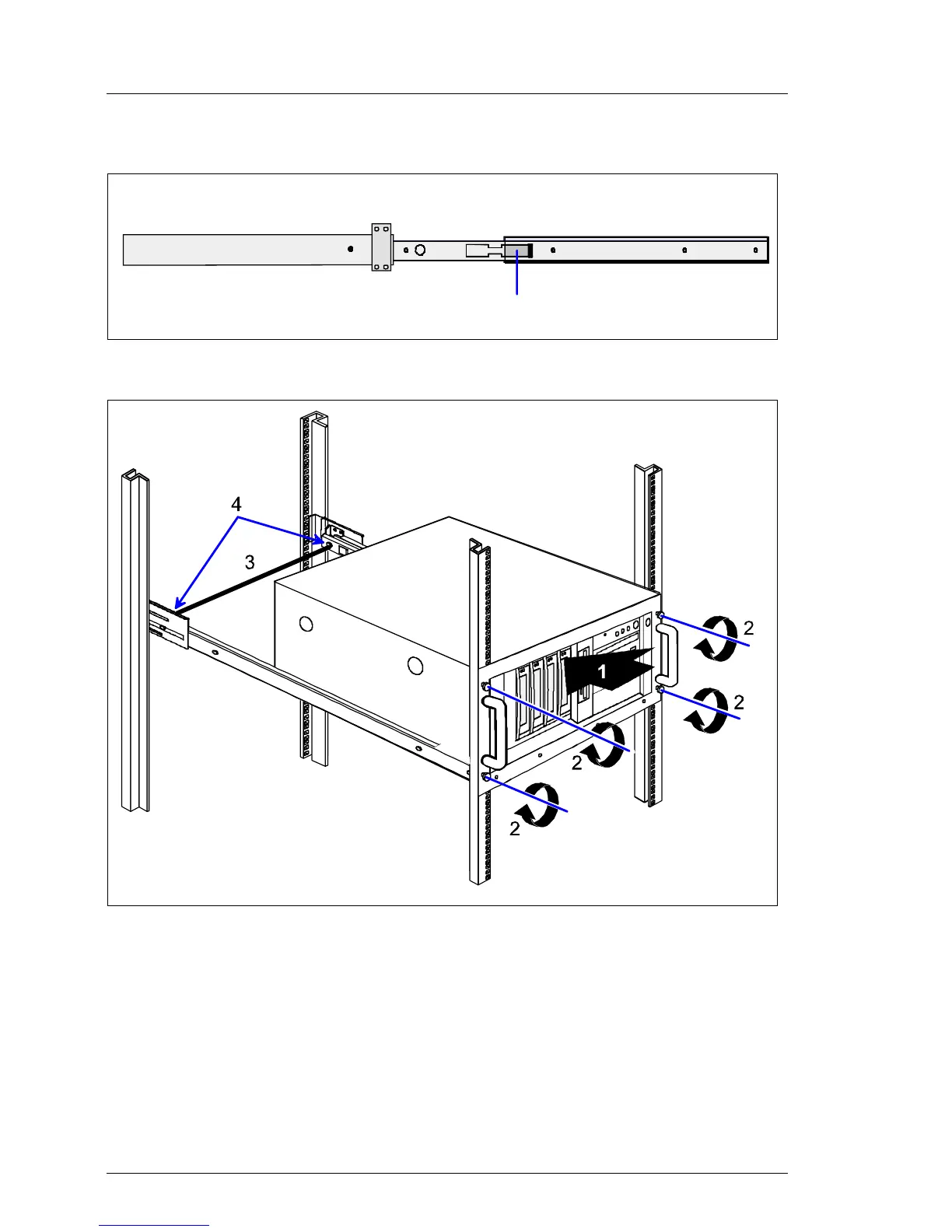

Ê Press in the safety springs (1) on both telescopic bars.
Ê Slide the server into the rack (1).
Ê Fasten the server in the rack (2) using the four knurled screws.
Ê If the server is installed in a PRIMECENTER or a DataCenter rack, position
with inserted server the supplied spreader bar (3) in the corresponding holes
(4) of the two telescopic rails.
1
