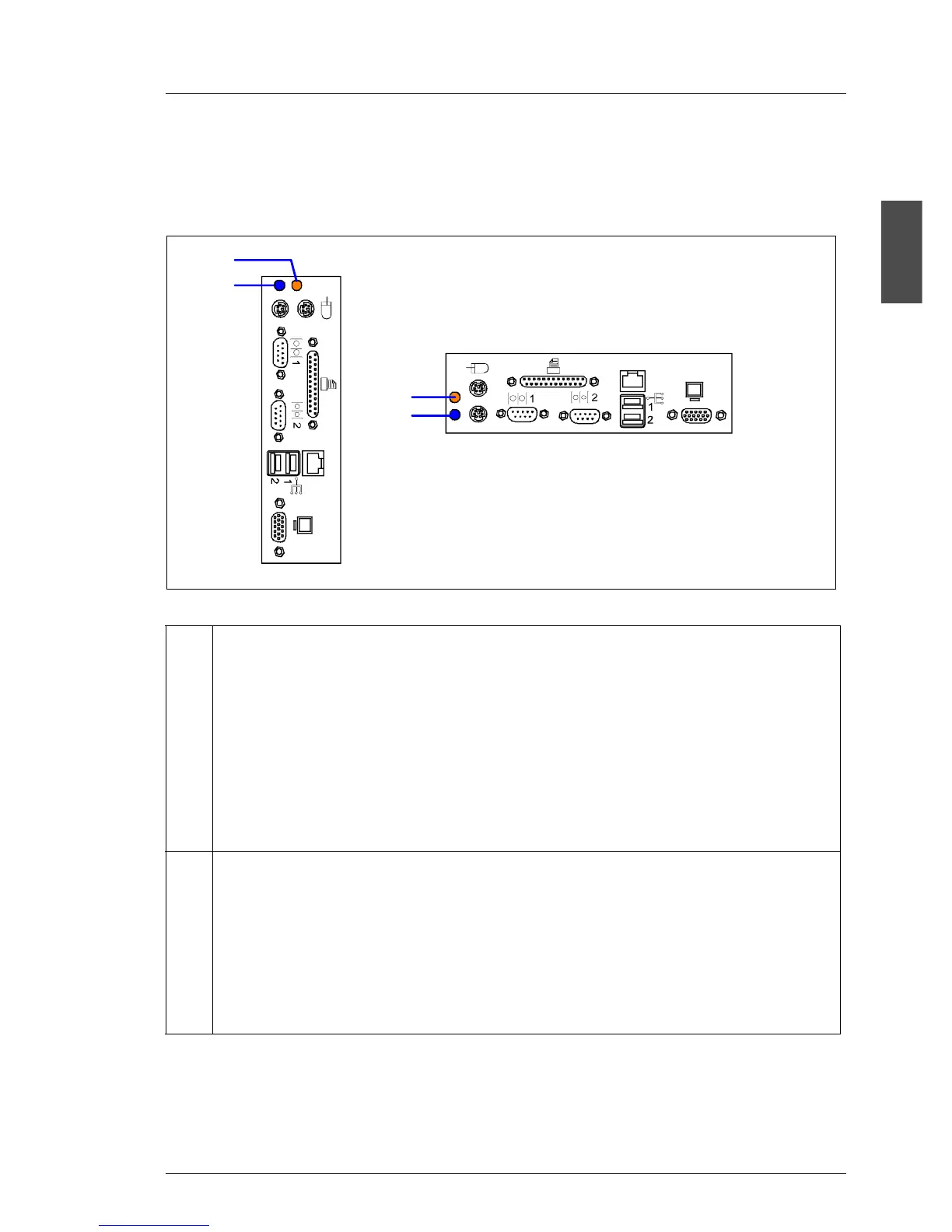

Indicators on the rear
Indicator on the connector panel
1 Global Error indicator (orange)
Is dark, when the system is OK. No critical event or event indicating service
requirement has occurred.
Blinks orange, when a critical event has occurred or a pre-failure event has been
detected. Users can check BIOS setup, system and event log for event details or
use ServerView. The indicator blinks also in standby mode.
Lights orange, when a prefailure event has been detected. Users can check
system and event log for event details or use ServerView. The indicator lights also
in standby mode.
After power-off the indicator is activated after a reload if the event is still critical.
2 ID indicator (blue)
Pressing the ID button lights up the integrated ID indicator on the front and the
ID indicator on the rear side of the server. The two ID indicators are synchro-
nized.
Lights up blue when the system has been selected by pressing the ID button. To
deactivate, press again the ID button.
The indicator can be selected also via ServerView and his status is also reported
to ServerView.
