PRIMERGY TX200 S2 User’s Guide
Installing hardware options
7
● Connecting the Server Control Cable and Internal Power Cable
When installing the remote service board, the server control cable and internal power cable need to be
connected.

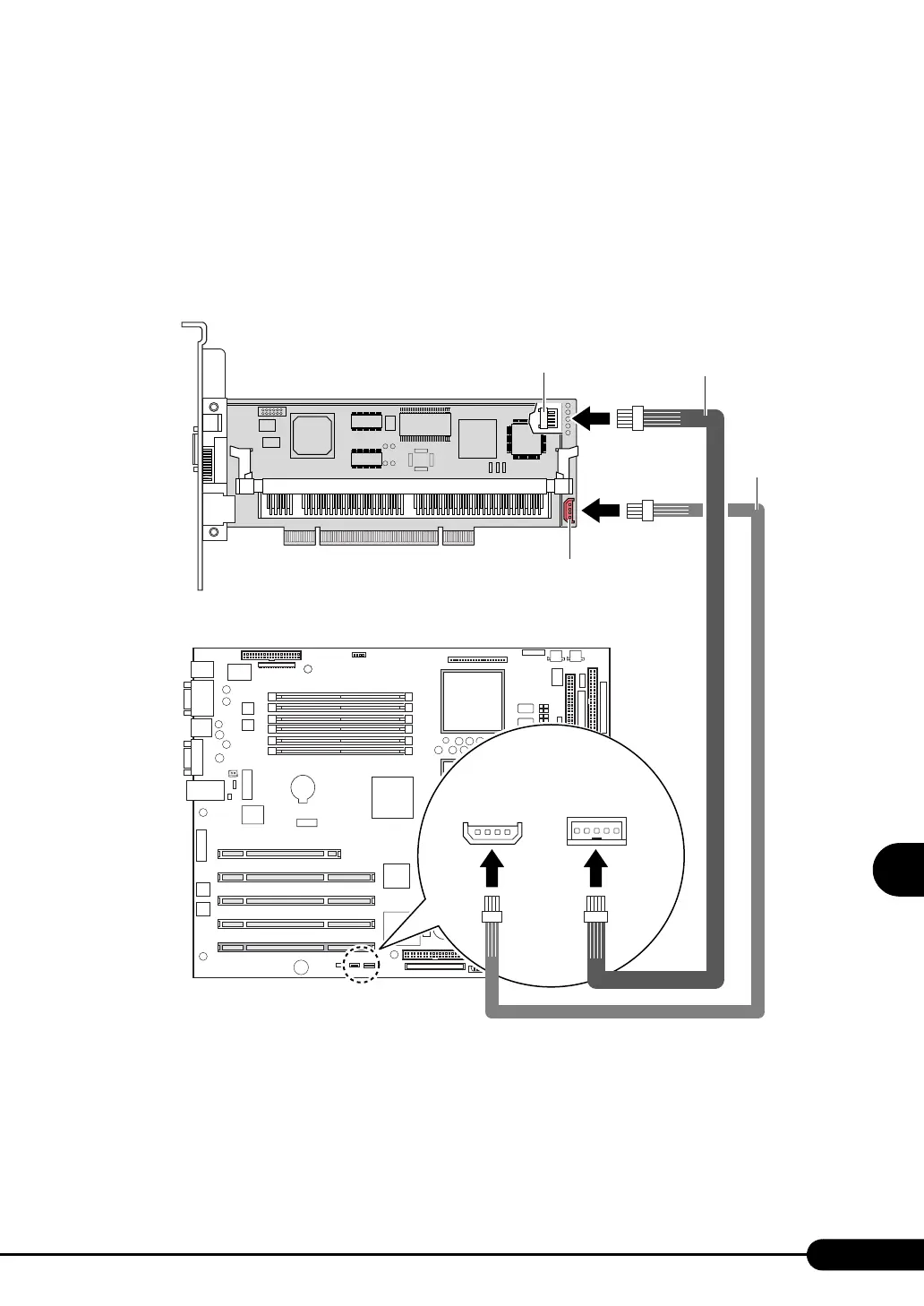

Connect the cables that came with the remote service board as shown in the figure below: the server
control cable and internal power cable connected to the ports on the remote service board and the ports
on the baseboard respectively. Then install the remote service board in PCI Slot 5.
After attaching the side cover of the server, connect the following cables. For how to connect cables,
refer to "PRIMERGY ServerBooks" supplied with the server, and "Supplement" supplied with options.
• USB cable
• VGA branch cable
• LAN cable
• AC adapter
[Remote service board]
[Baseboard]
Server control
connector
(4 pins)
Server control connector
(4 pins)
Server control
cable
Internal power
connector
(5 pins)
Internal power connector
(5 pins)
Internal power cable
