Fujitsu PRIMERGY TX200 S2 User Manual

217
PRIMERGY TX200 S2 User’s Guide
Installing hardware options
7
7.7.3 How to Install the 5-inch Internal Device
Perform the following procedures to install a 5-inch internal device. When installing the internal hard
disk unit conversion kit the procedures vary. Refer to"7.7.4 How to Install the Internal Hard Disk Unit
Bay Conversion Kit" (
pg.220).
1 Set SCSI IDs of the 5-inch internal devices.
For SCSI IDs of devices, refer to "■ Installable 5-inch Internal Devices" (pg.215).
2 Turn off the server and connected devices, and unplug all power cables from
the outlet.
3 Remove the side and front covers.
"7.2 Removing and Attaching Covers" (pg.176)
4 Touch a metal part of the server to discharge static electricity.

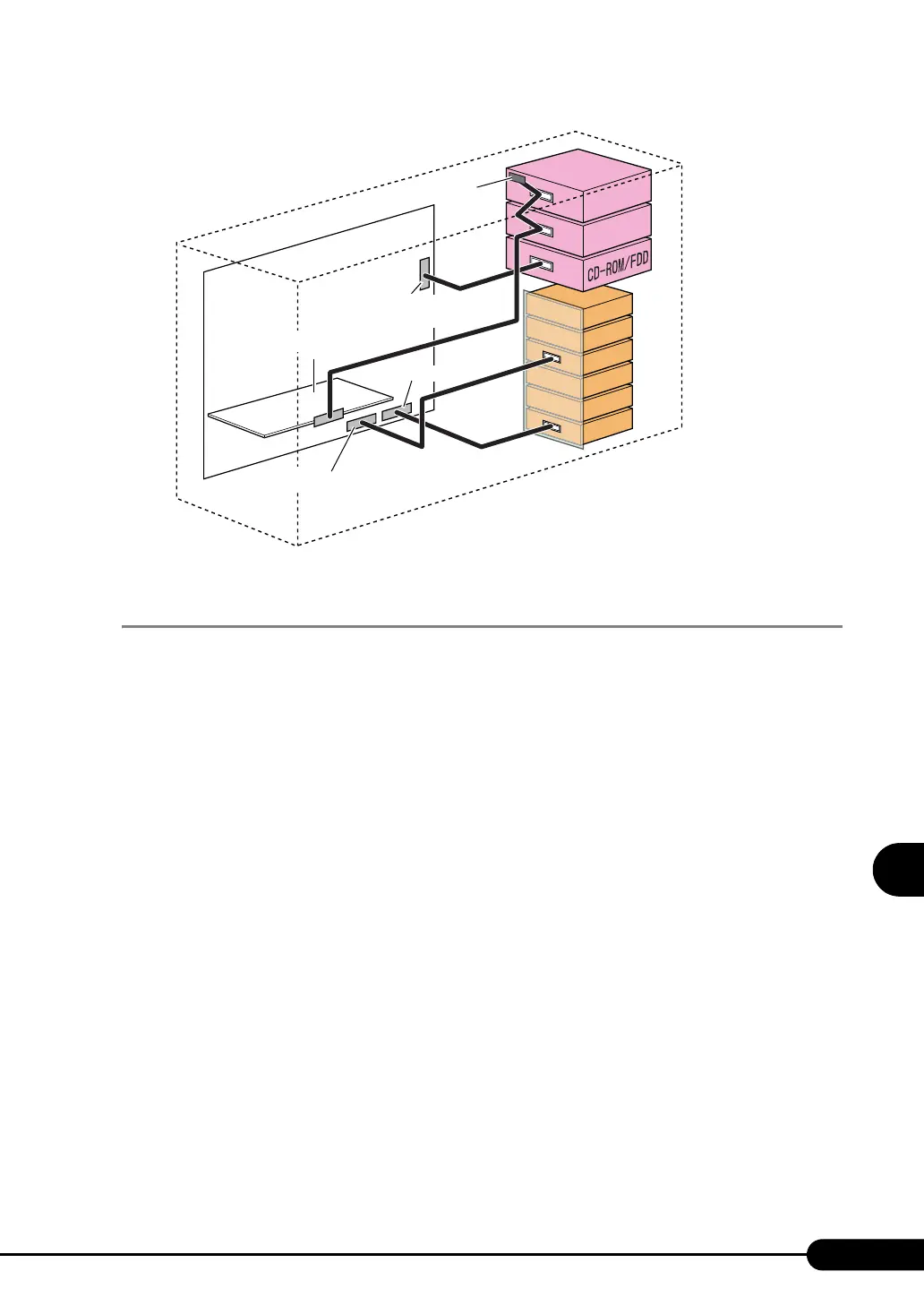

Baseboard
Bay3
Bay2
Bay6
Bay5
Bay4
Bay3
Bay2
Bay1
SCSI Ctrl U160(PG-128)
Secondary
IDE connector
SCSI connector
B
SCSI connector
A
Terminal resistor
[SCSI Ctrl U160(PG-128)]
