25
PRIMERGY TX200 S2 User’s Guide
1
Overview

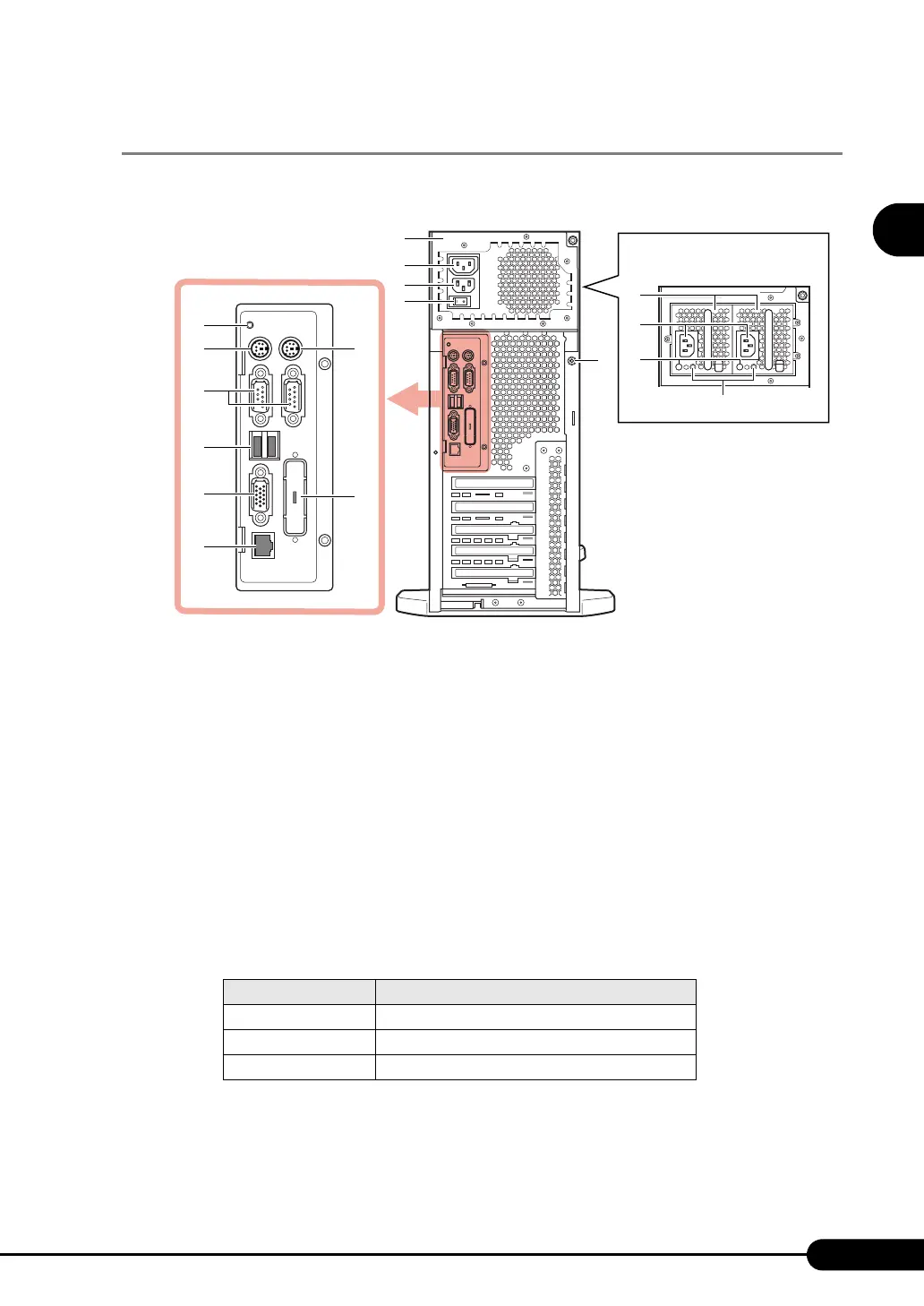

1.3.2 Server (Rear View)
a Power supply unit
When Power Supply Conversion kit is used, two power supply units are installed to enable the
redundant power function.
b Outlet (on the standard power supply only)
This cannot be used. Do not connect a power cable of peripheral devices.
c Inlet
Power cables are plugged in.
d Main switch (on the standard power supply only)
Turn this switch to "1" to turn on the main power of the server.
Once the main power is turned on, you do not have to turn this switch every time you start up the
server.
e Power status LED (on the redundant power supply only)
This LED is on, depending on the power supply status as follows.
table: Meaning of the Power Status LED
LED status Power supply unit status
Lights in green In normal mode (operating)
Lights in amber In normal mode (standby)
Off Power not supplied (power off)
Power supply unit
(non redundant)
Power supply unit
(redundant)
a
c
e
f
a
b
d
c
g
i
m
h
k
l
n
j
o
