218
Chapter 7 Installing Hardware Options
5 Remove the dummy unit.

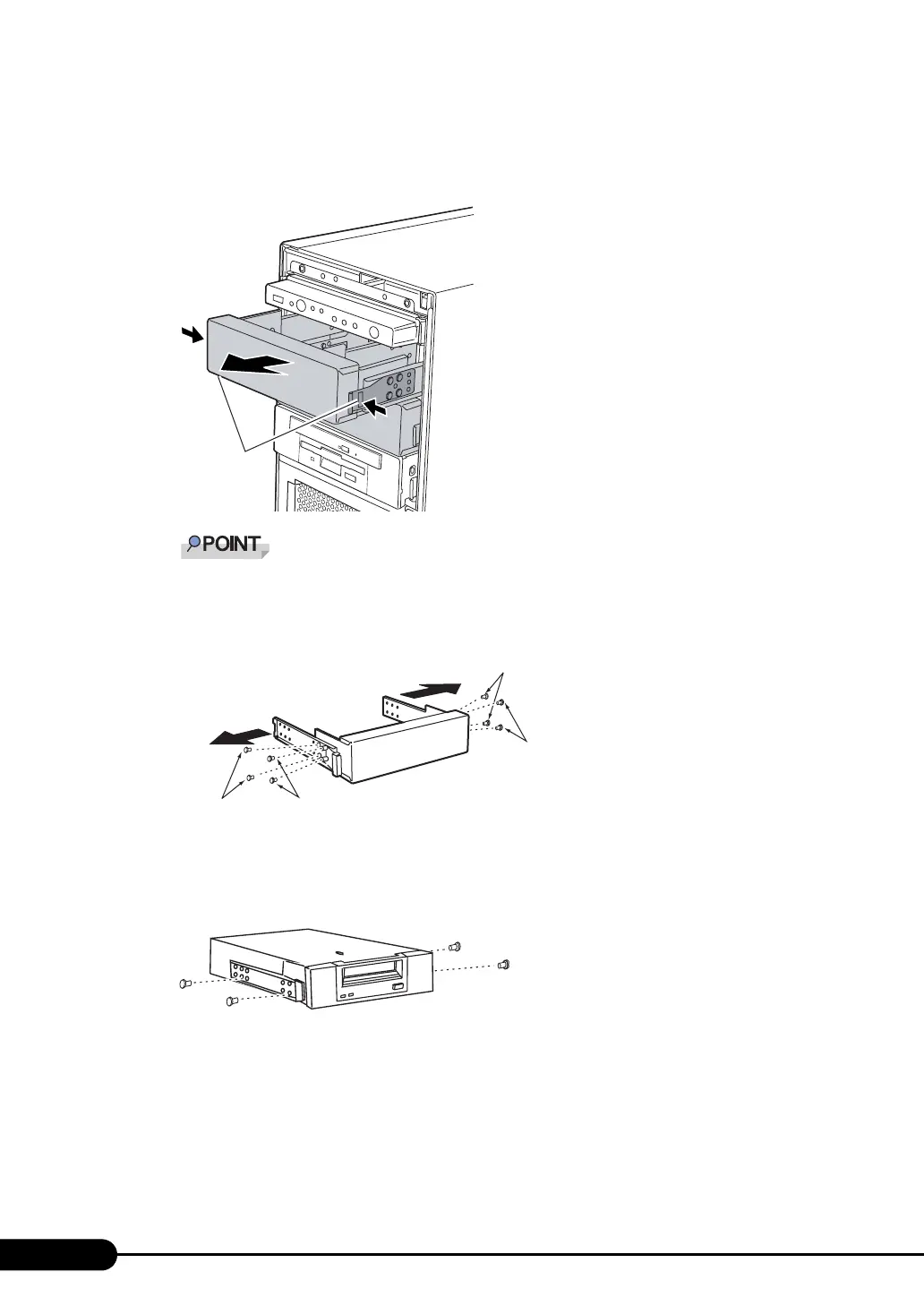

Pull the dummy unit out slowly towards you, keeping the tabs on the 5-inch storage bay rails (on
both sides) pressed inward.
Be sure to keep the removed dummy units for later use.
6 Detach the 5-inch storage bay rails from the removed dummy unit.
Remove eight screws that fix the 5-inch storage bay rails to detach.
7 Attach the removed 5-inch storage bay rails to the internal device to be added.
Of the eight screws removed from the dummy unit when the 5-inch storage bay rails were
detached, use four metric threads to install the internal device.
Tab s
Metric thread
Metric thread
Inch thread
Inch thread
