Fujitsu Scan Snap S1300i User Manual

Replacing the Pad Assy
455

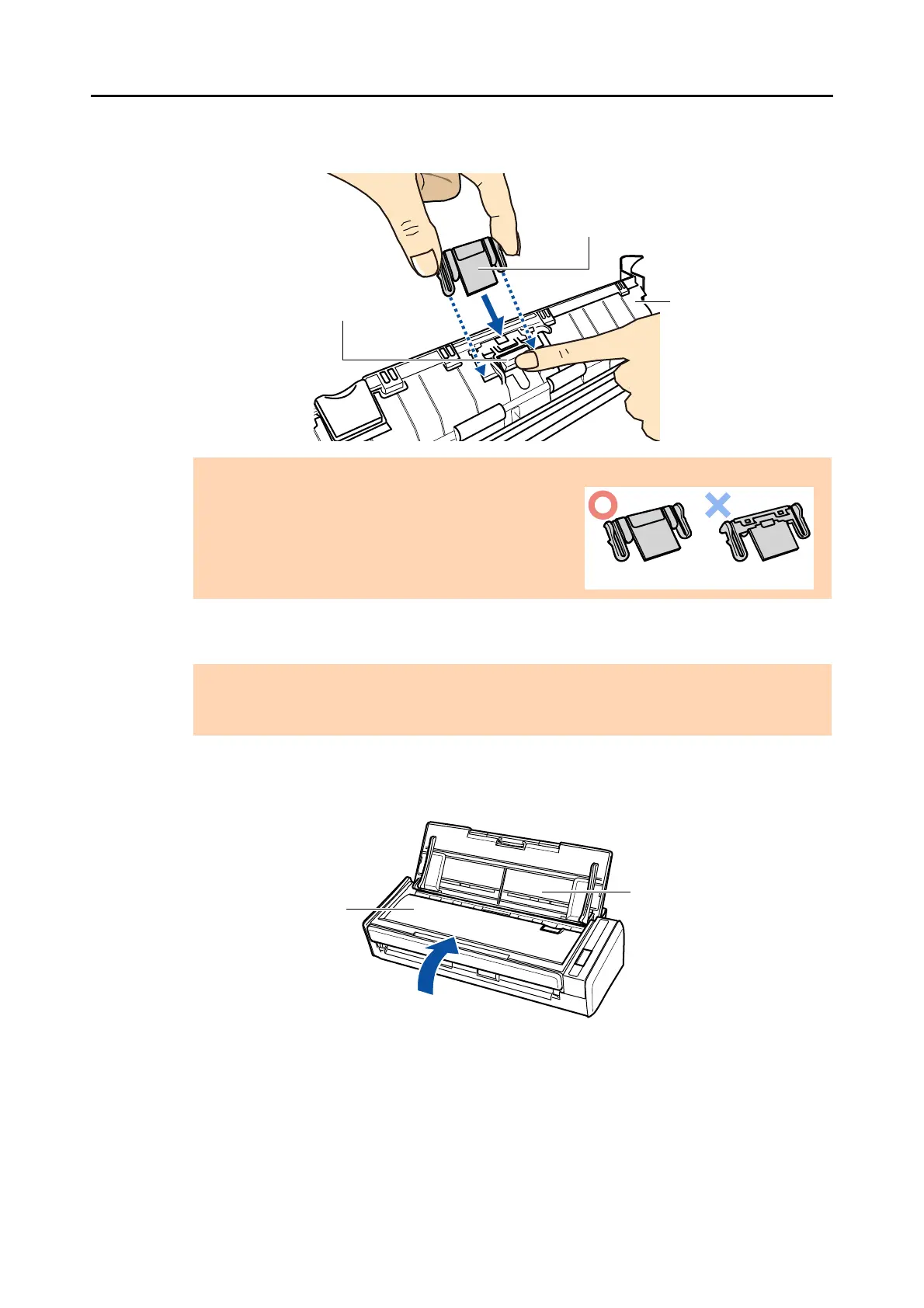

5. Attach the new pad assy while pushing the pad plate down.
6. Confirm that the pad assy is completely locked into the retaining hooks.
7. Close the ADF top section.
D It clicks when it returns to its original position.
8. Connect the power cable or the USB bus power cable, and turn on the
ScanSnap.
ATTENTION
Make sure to install the pad assy with its front side facing up.
Otherwise, paper jams or other feeding errors may occur.
ATTENTION
Confirm that the pad assy is attached properly. Otherwise, paper jams or other feeding errors may
occur.
ADF top section
Pad assy
Pad plate
Front Back
ADF paper
chute (cover)
ADF top section

Fujitsu Scan Snap S1300i Specifications

General

Optical Resolution	600 dpi
ADF Capacity	10 sheets
Interface	USB 2.0
Color Depth	24-bit
Duplex Scanning	Yes
Scanning Method	CIS (Contact Image Sensor)
Scanner Type	Sheetfed
Max Document Size	A4
Scan Speed	12 ppm (simplex), 24 ipm (duplex)
Dimensions	284 x 99 x 77 mm
Weight	1.4 kg
Supported Operating Systems	Windows, macOS
Power Source	USB Bus Power
